Highlights
View Details- Applications: Aerospace assembly, Masking circuit boards and coils, wafer dicing die cutting, Optic cables and solar panels.
- 2 inches wide x 36 yards long x 4 mil. thick
- Made of 1 mil polyimide film with 1.5 mil of silicone adhesive coating on each side (4 mil total thickness)

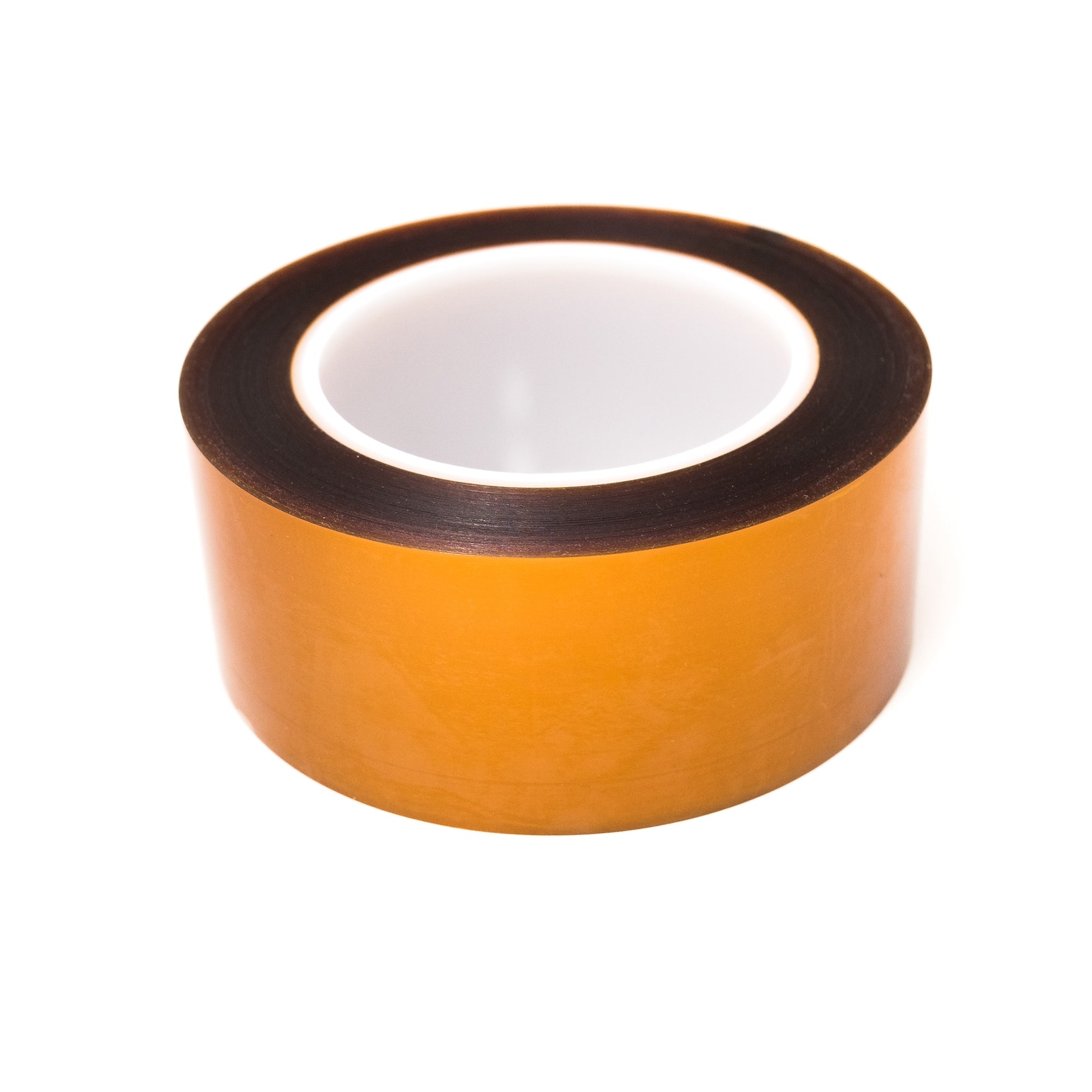

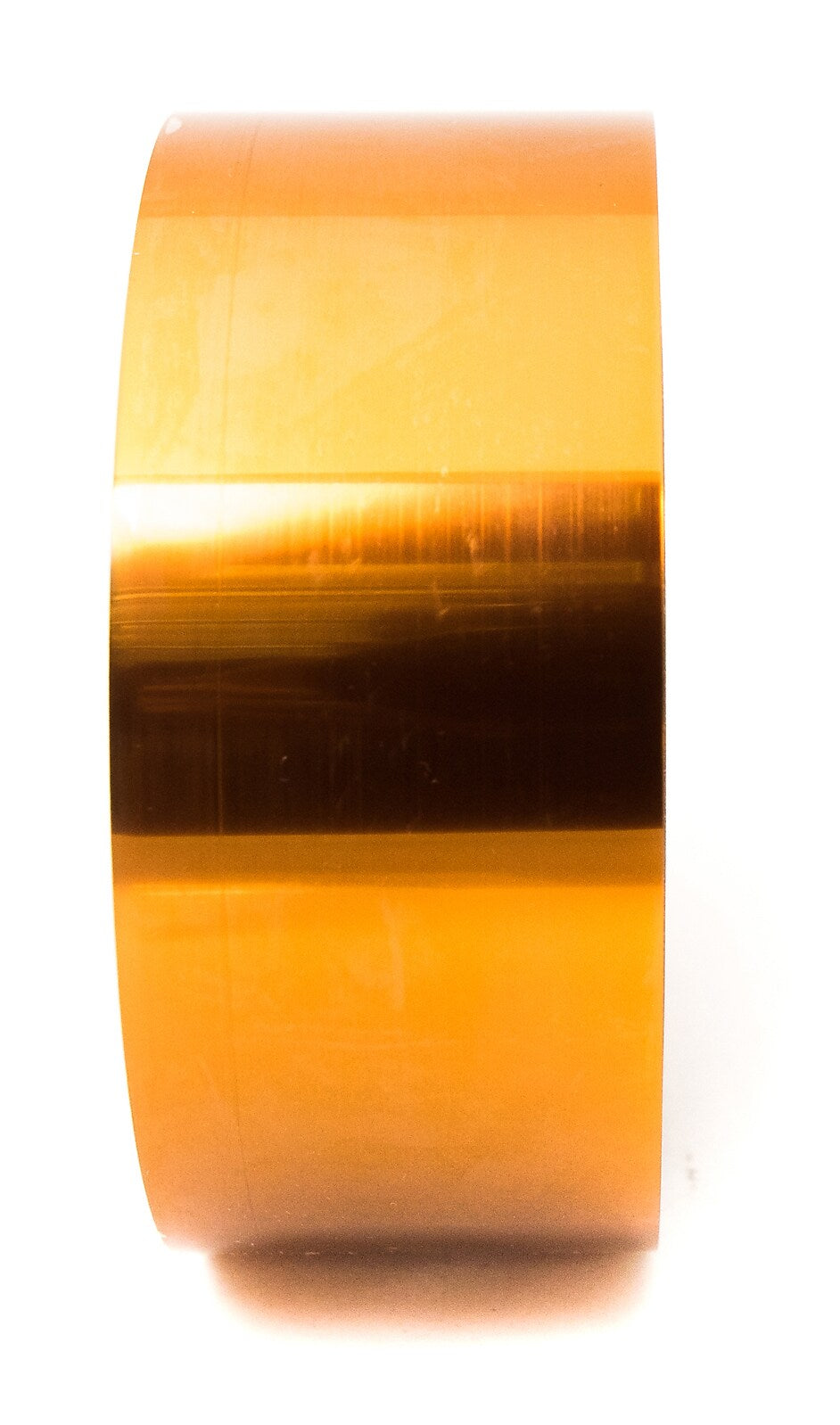

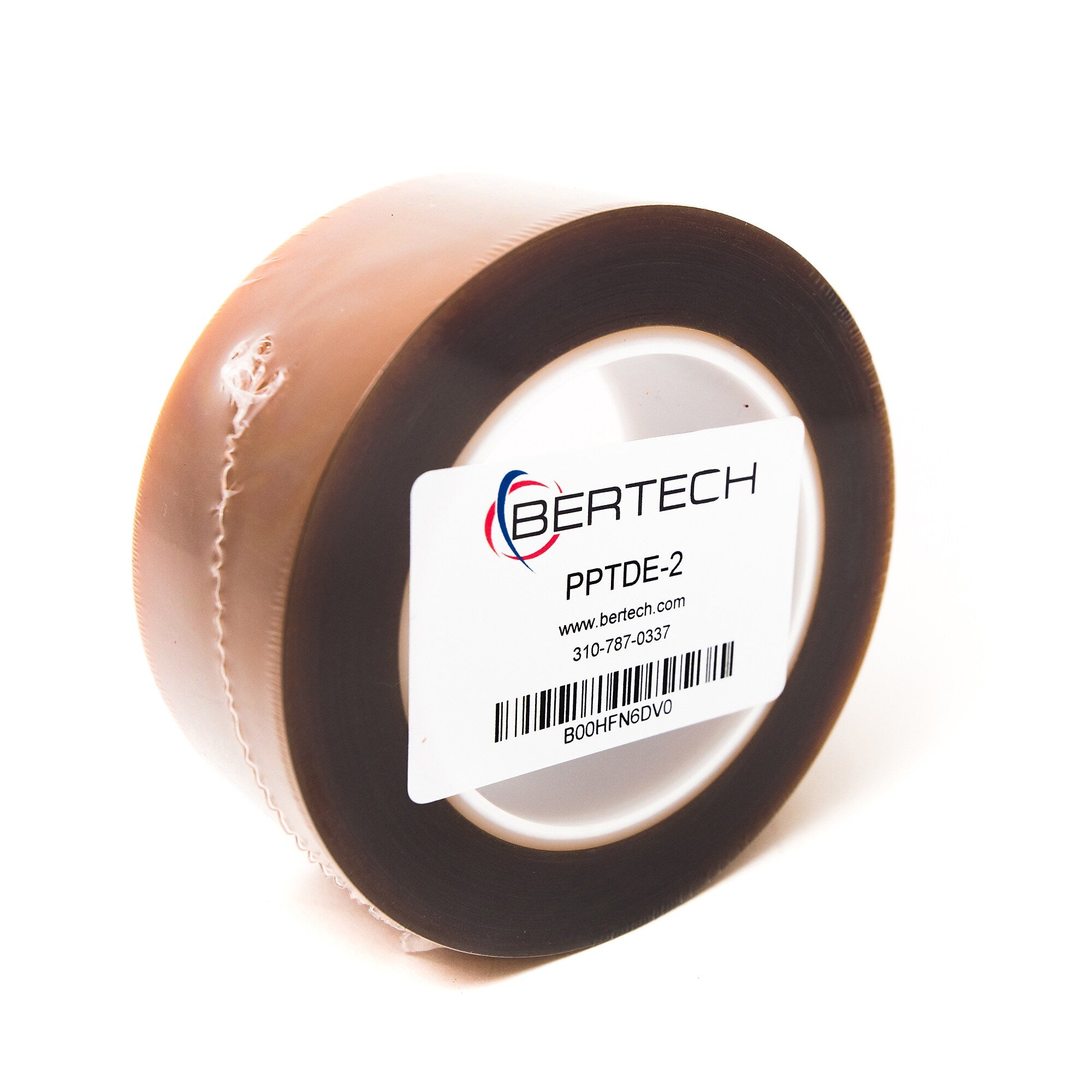

Bertech Double Sided Polyimide Tape, 2" x 36 yards, Amber (PPTDE-2)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Double Sided Polyimide Tapes are made of 1 mil polyimide film with 1.5 mil of silicone adhesive coating on each side. They are available in widths of up to 20 inches. They packaged with a single PET Liner in 36 yards long roll with a 3 inch core. These tapes offer an excellent performance in electrical and thermal insulation and have high dielectric strength. These Double Sided Polyimide Tapes are used for splicing of insulating layers, temporarily masking circuit boards and coils. These tapes offer outstanding thermal endurance with excellent puncture and tear resistance.
- Applications: Aerospace assembly, Masking circuit boards and coils, wafer dicing die cutting, Optic cables and solar panels.
- 2 inches wide x 36 yards long x 4 mil. thick
- Made of 1 mil polyimide film with 1.5 mil of silicone adhesive coating on each side (4 mil total thickness)
- RoHS Compliant
- Temperature Rating: 500 degrees fahrenheit
- Designed to be used for temporary masking purposes
| Manufacturer # | PPTDE2 |
| Brand Name | Bertech |
| Color Family | Yellow |
| Core Diameter (inches) | 3 |
| Length (yds.) | 36 |
| Material of Item | Polyimide |
| Removable or Permanent | Removable |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Series or Collection | PPTDE |
| Tape Pack Size | Each |
| Tape Refill Type | Tape Roll Refill |
| Tensile Strength (lbs Per Inches of Width) | 30 |
| Thickness (mils) | 4 |
| True Color | Amber |
| Width in Inches | 2 |
Details
Double Sided Polyimide Tapes are made of 1 mil polyimide film with 1.5 mil of silicone adhesive coating on each side. They are available in widths of up to 20 inches. They packaged with a single PET Liner in 36 yards long roll with a 3 inch core. These tapes offer an excellent performance in electrical and thermal insulation and have high dielectric strength. These Double Sided Polyimide Tapes are used for splicing of insulating layers, temporarily masking circuit boards and coils. These tapes offer outstanding thermal endurance with excellent puncture and tear resistance.
- Applications: Aerospace assembly, Masking circuit boards and coils, wafer dicing die cutting, Optic cables and solar panels.
- 2 inches wide x 36 yards long x 4 mil. thick
- Made of 1 mil polyimide film with 1.5 mil of silicone adhesive coating on each side (4 mil total thickness)
- RoHS Compliant
- Temperature Rating: 500 degrees fahrenheit
- Designed to be used for temporary masking purposes
| Attribute Name | Attribute Value |
|---|
