Highlights
View Details- Ports: 4 x DB 9, 1 x RJ 45
- Dimensions: 3.8"(H) x 17.7"(W) x 12.7"(D)
- Compatibility: PC

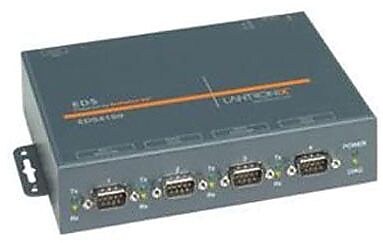

Lantronix® EDS Series Device Server With PoE, 4 Ports
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The EDS4100 is the first external device server to deliver an enterprise-grade, programmable device computing and networking platform for integrating edge equipment into the enterprise network.
- Ports: 4 x DB 9, 1 x RJ 45
- Dimensions: 3.8"(H) x 17.7"(W) x 12.7"(D)
- Compatibility: PC
- Form factor: Wall mountable, Processors installed: 1 x 266 MHz
- Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485
- Interface/ports: 2 x serial - RS 232 - 9 pin D Sub (DB 9), 2 x serial - RS 232/422/485 - 9 pin D Sub (DB 9), 1 x network - Ethernet 10base T/100Base TX - RJ 45
- Connectivity technology: Wired
- Status indicators: Link activity, power, test mode
- OS compatibility: Microsoft windows 98/ME/NT/2000/XP
- RAM Installed ( Max ): 32 MB, Flash Memory Installed (Max): 8 MB
- Operating temperature: 32 - 131 deg F, Humidity: 10 - 90%
- Encryption algorithm: Triple DES, ARCFOUR, AES, SSL 3.0, Authentication method: Secure shell v.2 (SSH2)
- Co mmunication mode: Half duplex, full duplex, IEEE 802.3af (when PoE is populated), 128 bit encryption, DHCP support, BOOTP support, ARP support
- Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP 2, Telnet, HTTP
- Includes: EDS4100 4 port device server with PoE, universal power supply and regional adapters, deviceInstaller configuration software, com port redirector software and related utilities
- Certificate and standards: UL, TUV GS, VCCI, C Tick, cUL, EN 61000 3 2, IEC 61000 4 11, IEC 61000 4 2, IEC 61000 4 3, IEC 61000 4 4, IEC 61000 4 5, IEC 61000 4 6, IEC 61000 4 8, EN 61000 3 3, EN55024, EN55022 Class A, CISPR 22, FCC Part 15, RoHS
- Weight: 1.90 lbs.
- Warranty: 2 years limited
| Manufacturer # | K10162 |
| Brand Name | Lantronix |
| Depth in Inches | 12.7 |
| Height in Inches | 3.8 |
| Installed Ram | 256MB |
| Os Version | PC |
| Server Type | Device |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 1.9 |
| Width in Inches | 17.7 |
Details
The EDS4100 is the first external device server to deliver an enterprise-grade, programmable device computing and networking platform for integrating edge equipment into the enterprise network.
- Ports: 4 x DB 9, 1 x RJ 45
- Dimensions: 3.8"(H) x 17.7"(W) x 12.7"(D)
- Compatibility: PC
- Form factor: Wall mountable, Processors installed: 1 x 266 MHz
- Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485
- Interface/ports: 2 x serial - RS 232 - 9 pin D Sub (DB 9), 2 x serial - RS 232/422/485 - 9 pin D Sub (DB 9), 1 x network - Ethernet 10base T/100Base TX - RJ 45
- Connectivity technology: Wired
- Status indicators: Link activity, power, test mode
- OS compatibility: Microsoft windows 98/ME/NT/2000/XP
- RAM Installed ( Max ): 32 MB, Flash Memory Installed (Max): 8 MB
- Operating temperature: 32 - 131 deg F, Humidity: 10 - 90%
- Encryption algorithm: Triple DES, ARCFOUR, AES, SSL 3.0, Authentication method: Secure shell v.2 (SSH2)
- Co mmunication mode: Half duplex, full duplex, IEEE 802.3af (when PoE is populated), 128 bit encryption, DHCP support, BOOTP support, ARP support
- Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP 2, Telnet, HTTP
- Includes: EDS4100 4 port device server with PoE, universal power supply and regional adapters, deviceInstaller configuration software, com port redirector software and related utilities
- Certificate and standards: UL, TUV GS, VCCI, C Tick, cUL, EN 61000 3 2, IEC 61000 4 11, IEC 61000 4 2, IEC 61000 4 3, IEC 61000 4 4, IEC 61000 4 5, IEC 61000 4 6, IEC 61000 4 8, EN 61000 3 3, EN55024, EN55022 Class A, CISPR 22, FCC Part 15, RoHS
- Weight: 1.90 lbs.
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
