Highlights
View Details- Ports: 1 x RJ 45, 1 x DB 25
- Dimensions: 3 1/2"(H) x 2 1/2"(W) x 0.9"(D)
- Compatibility: PC

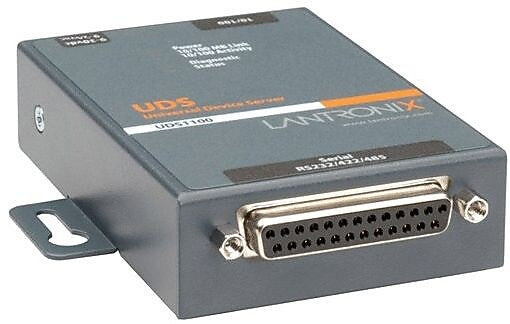

Lantronix® UD11000P0-01 Device Server With PoE, 1 Port
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
- Ports: 1 x RJ 45, 1 x DB 25
- Dimensions: 3 1/2"(H) x 2 1/2"(W) x 0.9"(D)
- Compatibility: PC
- Form factor: Wall mountable, Processor speed: 48 MHz
- Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485
- Interface/ports: 1 x serial - RS 232/422/485 - 25 pin D Sub (DB 25), 1 x network / power - Ethernet 10base T/100Base TX - RJ 45
- Connectivity technology: Wired
- Status indicators: Link activity, power, status
- Standard memory: 256 KB, Memory technology: SRAM, Flash Memory installed (Max): 2 MB
- Operating temperature: 41 - 122 deg F
- Input voltage: 30 VDC
- Software selectable RS232, RS422 or RS485, flow control, DHCP support, ARP support, half duplex mode, full duplex mode
- Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP, Telnet, HTTP
- Certificate and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, UL, CSA, FCC, CE, TUV, C Tick, C Tick
- Weight: 7.05 oz.
- Warranty: 2 years limited
| Manufacturer # | M88501 |
| Brand Name | Lantronix |
| Depth in Inches | .9 |
| Height in Inches | 3.5 |
| Installed Ram | Less than 256MB |
| Server Type | Device |
| Warranty Information | 2 Year |
| Weight (lbs.) | .44 |
| Width in Inches | 2.5 |
Details
- Ports: 1 x RJ 45, 1 x DB 25
- Dimensions: 3 1/2"(H) x 2 1/2"(W) x 0.9"(D)
- Compatibility: PC
- Form factor: Wall mountable, Processor speed: 48 MHz
- Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485
- Interface/ports: 1 x serial - RS 232/422/485 - 25 pin D Sub (DB 25), 1 x network / power - Ethernet 10base T/100Base TX - RJ 45
- Connectivity technology: Wired
- Status indicators: Link activity, power, status
- Standard memory: 256 KB, Memory technology: SRAM, Flash Memory installed (Max): 2 MB
- Operating temperature: 41 - 122 deg F
- Input voltage: 30 VDC
- Software selectable RS232, RS422 or RS485, flow control, DHCP support, ARP support, half duplex mode, full duplex mode
- Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP, Telnet, HTTP
- Certificate and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, UL, CSA, FCC, CE, TUV, C Tick, C Tick
- Weight: 7.05 oz.
- Warranty: 2 years limited
