Highlights
View Details- XPress-DR+ industrial device server allows users to remotely configure, monitor and control PLCs
- Measures 2.2"H x 4.8"W x 3.5"D
- Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance

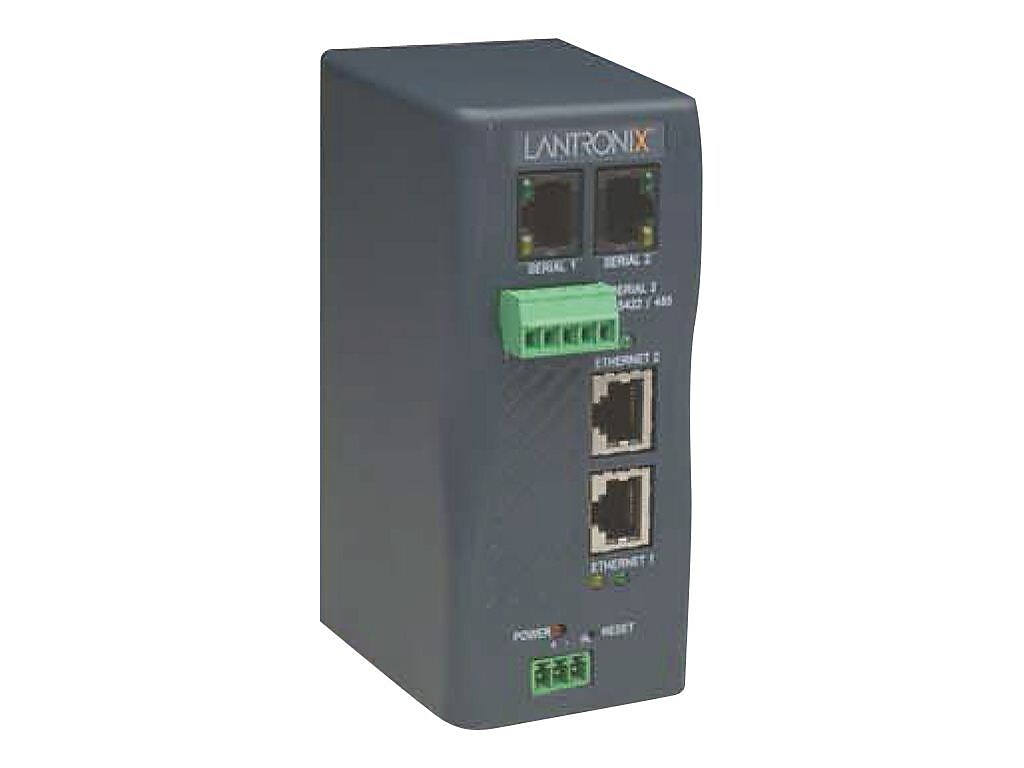

Lantronix® XPress-DR+ 4 Ports Industrial Device Server, Lantronix DSTNI-EX 48 MHz 256KB
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Lantronix® XSDR22000-01 XPress-DR+ 4-Port Industrial device server enables users to remotely configure, monitor and control PLCs, drives, motion controllers, power equipment, barcode scanners and other serial devices from anywhere over the Net. It provides complete access and control of virtually any type of equipment with a serial port.
- XPress-DR+ industrial device server allows users to remotely configure, monitor and control PLCs
- Measures 2.2"H x 4.8"W x 3.5"D
- Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance
- Has 256KB SDRAM with 2MB flash and 2KB EEPROM memory for optimum storage
- Has 4 ports for easy connectivity
- Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity
- Supports a baud rate of 300 to 230 Kbps and 1 screw terminal RS-422/485 interface on serial port 2
- Has 4 x Network (RJ-45) ports for easy connectivity, supports DTR, DSR modem control signals, XON/XOFF (software), CTS/RTS (hardware) flow control
- Operates in embedded, unmanaged, fully compliant 802.3u non-blocking network with 2 RJ45 10Base-T/100Base-TX Ethernet ports
- Supports protocols like ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP and HTTP
- Power supply is rated at 9 - 30 VDC or 9 - 24 VAC with chassis ground and 2.6 W, has removable screw terminal block connector
- Has front panel recessed push button for resetting
- Supports internal web server, SNMP v2, Serial login, Telnet login, DeviceInstaller software management
- Meets UL, CSA, FCC, CE, TUV, CTick, VCCIs certifications and standards
- Weighs 0.21 kg
- Black
| Manufacturer # | XSDR2200001 |
| Brand Name | Lantronix |
| True Color | Black |
Details
Lantronix® XSDR22000-01 XPress-DR+ 4-Port Industrial device server enables users to remotely configure, monitor and control PLCs, drives, motion controllers, power equipment, barcode scanners and other serial devices from anywhere over the Net. It provides complete access and control of virtually any type of equipment with a serial port.
- XPress-DR+ industrial device server allows users to remotely configure, monitor and control PLCs
- Measures 2.2"H x 4.8"W x 3.5"D
- Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance
- Has 256KB SDRAM with 2MB flash and 2KB EEPROM memory for optimum storage
- Has 4 ports for easy connectivity
- Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity
- Supports a baud rate of 300 to 230 Kbps and 1 screw terminal RS-422/485 interface on serial port 2
- Has 4 x Network (RJ-45) ports for easy connectivity, supports DTR, DSR modem control signals, XON/XOFF (software), CTS/RTS (hardware) flow control
- Operates in embedded, unmanaged, fully compliant 802.3u non-blocking network with 2 RJ45 10Base-T/100Base-TX Ethernet ports
- Supports protocols like ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP and HTTP
- Power supply is rated at 9 - 30 VDC or 9 - 24 VAC with chassis ground and 2.6 W, has removable screw terminal block connector
- Has front panel recessed push button for resetting
- Supports internal web server, SNMP v2, Serial login, Telnet login, DeviceInstaller software management
- Meets UL, CSA, FCC, CE, TUV, CTick, VCCIs certifications and standards
- Weighs 0.21 kg
- Black
| Attribute Name | Attribute Value |
|---|
