Highlights
View Details- Transceiver/media converter converts and extends your GbE connection up to 20 km using single mode LC fiber connector
- Dimensions: 0.9"H x 3.5"W x 6.4"D
- Comes in steel color with plastic construction
StarTech.com® LC Copper-to-Fiber Transceiver/Media Converter (ET91000SM20)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The StarTech.com® ET91000SM20 GbE copper-to-fiber transceiver/media converter helps to convert and extend your GbE connection up to 20 km using single mode LC fiber connector. This media converter supports full and half-duplex operation with a maximum data transfer rate of 2 Gbps (full-duplex), as well as it supports auto negotiation or forced mode. This media converter is compatible with 1000Base-T, 1000Mbps Gigabit copper and 1000Base-LX fiber protocols.
- Transceiver/media converter converts and extends your GbE connection up to 20 km using single mode LC fiber connector
- Dimensions: 0.9"H x 3.5"W x 6.4"D
- Comes in steel color with plastic construction
- Interfaces/port: 1 x fiber optic LC duplex female, 1 x RJ-45 female
- Ethernet technology: Gigabit Ethernet
- Media type supported: Single-mode optical fiber
- Wavelength: 1310 nm
- Maximum data transfer rate: 2 Gbps
- Operating range: 20 km
- Form factor: Rack-mountable, standalone

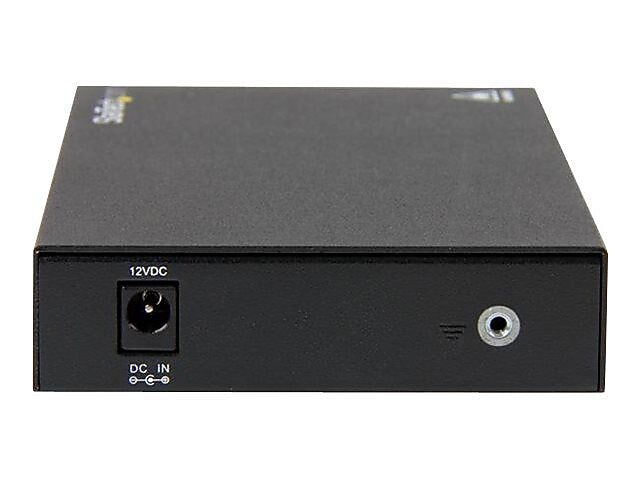

- Power: 100 - 240 VAC input voltage, 12 VDC output voltage, 19.2 W power consumption, 0.48 A/1.6 A input/output current
- Jumbo frame support: 9.6K max, MTBF: 65000 hours

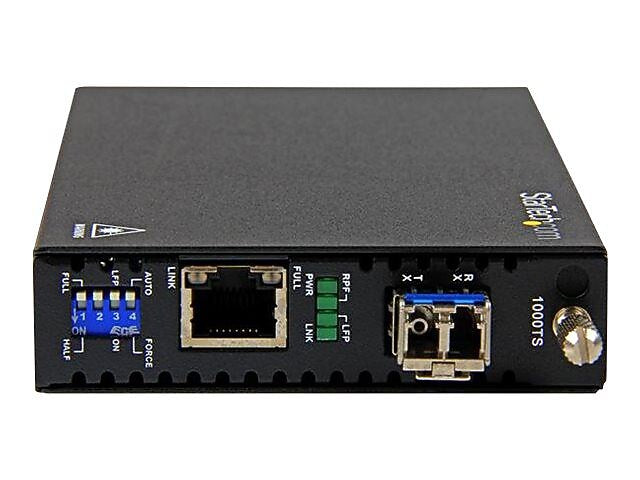

- LED indicators: 1 x PWR, 1 x RPF, 1 x LFP, 1 x LNK, 1 x LINK x RJ45, 1 x FULL RJ45
- High-performance media converter supports a range of network setup and diagnostic protocols (for example, ALS and Auto MDIX)
- Heavy-duty fiber media converter is designed for maximum reliability
- Includes universal power adapter (NA/EU/UK/AU), instruction manual
- Meets RoHS, WEEE standards
- Weight: 14.5 oz.
- Comes with 2 year warranty
| Manufacturer # | ET91000SM20 |
| Brand Name | StarTech |
| Connector, Port or Interface Type(s) | 1 x fiber optic LC duplex female, 1 x RJ-45 female |
| Data Transfer Rate | 2 Gbps |
| Data Transfer Rate (gbps) | 2 |
| Data Transfer Rate (mbps) | 2000 |
| Depth in Inches | 6.4 |
| Ethernet | Yes |
| Fiber Cable Type | Single Mode |
| Fiber Connector Type | LC |
| Gigabit | Yes |
| Height in Inches | 0.9 |
| Mtbf (hours) | 65000 |
| Max. Data Transfer Rate (mbps) | 2000 - 2499 |
| Max. Distance (meters) | 20000 |
| Network Transceiver Type | Media Converter |
| Power Consumption (watts) | 19.2 |
| Selling Quantity (uom) | Each |
| Wavelength (nm) | 1310 |
| Weight (lbs.) | 0.91 |
| Width in Inches | 3.5 |
Details
The StarTech.com® ET91000SM20 GbE copper-to-fiber transceiver/media converter helps to convert and extend your GbE connection up to 20 km using single mode LC fiber connector. This media converter supports full and half-duplex operation with a maximum data transfer rate of 2 Gbps (full-duplex), as well as it supports auto negotiation or forced mode. This media converter is compatible with 1000Base-T, 1000Mbps Gigabit copper and 1000Base-LX fiber protocols.
- Transceiver/media converter converts and extends your GbE connection up to 20 km using single mode LC fiber connector
- Dimensions: 0.9"H x 3.5"W x 6.4"D
- Comes in steel color with plastic construction
- Interfaces/port: 1 x fiber optic LC duplex female, 1 x RJ-45 female
- Ethernet technology: Gigabit Ethernet
- Media type supported: Single-mode optical fiber
- Wavelength: 1310 nm
- Maximum data transfer rate: 2 Gbps
- Operating range: 20 km
- Form factor: Rack-mountable, standalone
- Power: 100 - 240 VAC input voltage, 12 VDC output voltage, 19.2 W power consumption, 0.48 A/1.6 A input/output current
- Jumbo frame support: 9.6K max, MTBF: 65000 hours
- LED indicators: 1 x PWR, 1 x RPF, 1 x LFP, 1 x LNK, 1 x LINK x RJ45, 1 x FULL RJ45
- High-performance media converter supports a range of network setup and diagnostic protocols (for example, ALS and Auto MDIX)
- Heavy-duty fiber media converter is designed for maximum reliability
- Includes universal power adapter (NA/EU/UK/AU), instruction manual
- Meets RoHS, WEEE standards
- Weight: 14.5 oz.
- Comes with 2 year warranty
