Highlights
View Details- Port and tag-based QoS enable smooth latency-sensitive traffic
- Buffer memory: 512KB, MAC address table: 8KB
- Form factor: rack-mountable, desktop

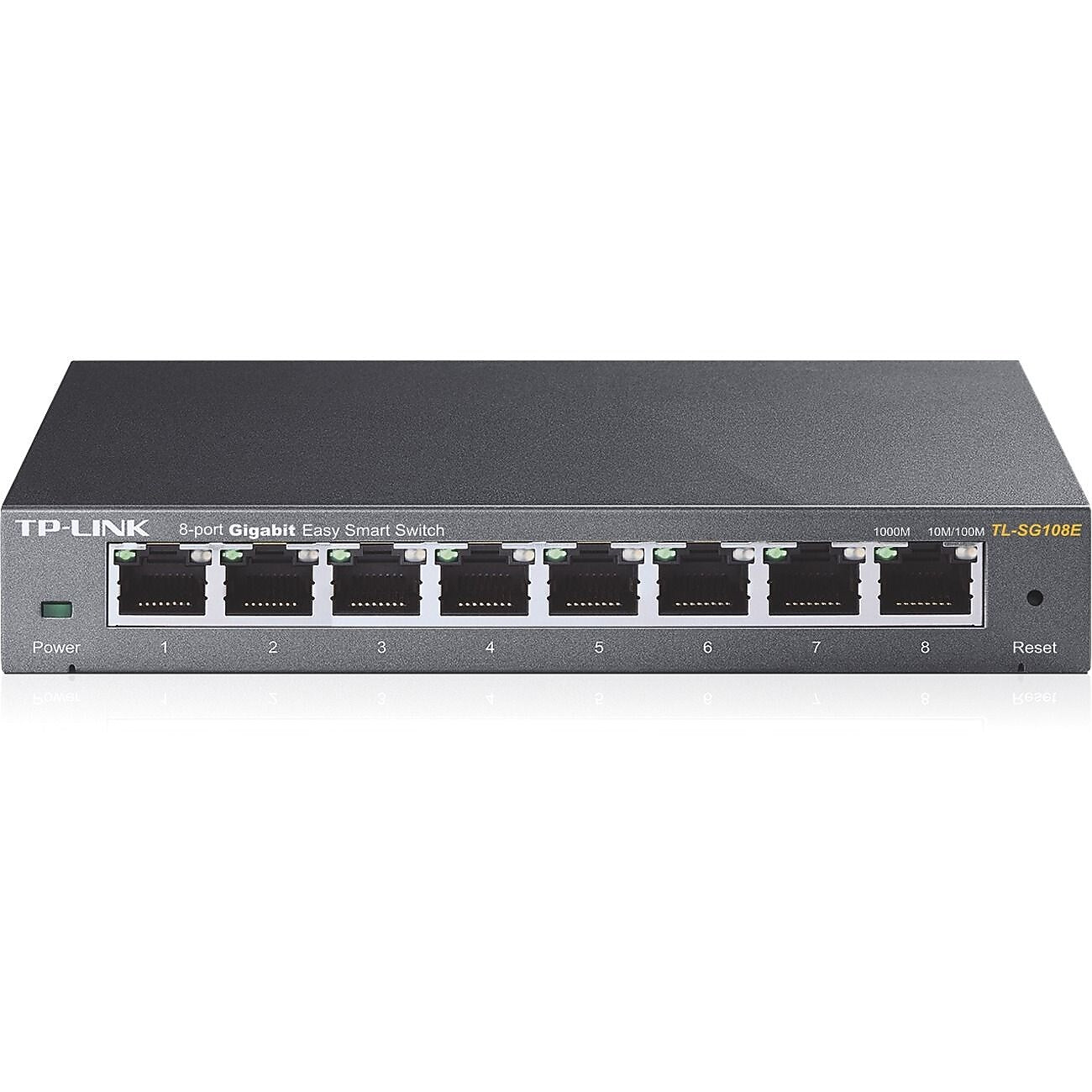

TP-LINK® TL-SG108E Gigabit Easy Smart Switch, 8-Port
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
TP-LINK® 8 Port gigabit easy smart switch has port mirroring, loop prevention and cable diagnostics features to monitor traffic behaviors. Switch complies with IEEE 802.3/802.3u/802.3ab/802.3x standards and has metal case for strength.
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Buffer memory: 512KB, MAC address table: 8KB
- Form factor: rack-mountable, desktop
- Dimensions: 1"(H) x 6.2"(W) x 4"(D)
- Interface: 8 10/100/1000 Mbps RJ45 ports, auto negotiation/auto MDI/MDIX
- Network media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m)
- Media type supported: Twisted pair
- Number of network (RJ-45) ports: 8
- Port/expansion slot details: 8 x Gigabit Ethernet network
- Packet forwarding rate: 11.9 Mpps
- Storage temperature/storage humidity: -40 - 70 deg C/5 - 90% RH (non-condensing)
- Power supply: 100/240 VAC, 50/60Hz
- Includes: TL-SG1016DE, power cord, installation guide, resource CD, rubber feet
- Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Certifications: CE, FCC class B, RoHS
- Compliant standards: FCC, CE, RoHS, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
| Manufacturer # | TLSG108E |
| Address Database Size | 8000 |
| Brand Name | TP-LINK |
| Buffer Memory | 512KB |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 4 |
| Gaming | Gaming |
| Height in Inches | 1 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Module Support | Twisted Pair |
| Network Management Type | Smart Switch |
| Number of Ethernet Ports | 8 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | No |
| Snmp | No |
| Switch Form Factor | Desktop, Rack Mountable |
| Width in Inches | 6.2 |
Details
TP-LINK® 8 Port gigabit easy smart switch has port mirroring, loop prevention and cable diagnostics features to monitor traffic behaviors. Switch complies with IEEE 802.3/802.3u/802.3ab/802.3x standards and has metal case for strength.
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Buffer memory: 512KB, MAC address table: 8KB
- Form factor: rack-mountable, desktop
- Dimensions: 1"(H) x 6.2"(W) x 4"(D)
- Interface: 8 10/100/1000 Mbps RJ45 ports, auto negotiation/auto MDI/MDIX
- Network media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100O STP (maximum 100m)
- Media type supported: Twisted pair
- Number of network (RJ-45) ports: 8
- Port/expansion slot details: 8 x Gigabit Ethernet network
- Packet forwarding rate: 11.9 Mpps
- Storage temperature/storage humidity: -40 - 70 deg C/5 - 90% RH (non-condensing)
- Power supply: 100/240 VAC, 50/60Hz
- Includes: TL-SG1016DE, power cord, installation guide, resource CD, rubber feet
- Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Certifications: CE, FCC class B, RoHS
- Compliant standards: FCC, CE, RoHS, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
| Attribute Name | Attribute Value |
|---|
