Highlights
View Details- Media converter provides cost-effective and entry level media conversion
- Dimensions: 0.85"H x 1.8"W x 3.3"D
- Comes in black color

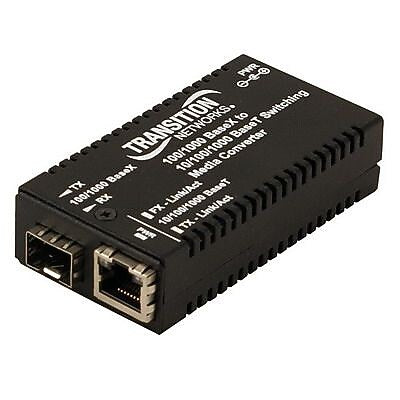

Transition Networks® RJ-45 to SFP Slot Mini Gigabit Ethernet Media Converter, Black (M/GE-PSW-SFP-01-NA)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Transition Networks® M/GE-PSW-SFP-01-NA mini GbE media converter provides cost-effective and entry level media conversion of 10/100/1000Base-T stand alone copper connection to 1000Base-X fiber connections. This hot swappable media converter has dual speed SFP port that supports autosensing 100 m or 1000 m SFP transceivers. The LEDs of the converter provide quick status information. This converter features auto-negotiation, auto-MDI/MDIX, automatic link restoration and fixed full duplex on fiber.
- Media converter provides cost-effective and entry level media conversion
- Dimensions: 0.85"H x 1.8"W x 3.3"D
- Comes in black color
- Interfaces/ports: 1 x 10/100/1000Base-T RJ-45 to 100/1000Base-X SFP slot
- Ethernet technology: Gigabit Ethernet
- Power supply: Input: 4.5 VDC - 14 VDC, external AC/DC required, 12 VDC, 0.5 A, consumption: 2.4 W
- Status LEDs: PWR (power) below RJ-45: On = Power, FX-link/act upper Left on RJ-45: On = link, TX-link/act upper right on RJ-45: On = link
- Auto-negotiation, fixed full-duplex on fiber, auto-MDI/MDIX
- Automatic link restoration, jumbo frame up to 10240 bytes
- Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, humidity: 5 - 95% (non-condensing)
- Meets safety: Wall mount power supply, UL, cUL (Canada), FCC class A, CISPR22/EN55022 class A, EN55024, CE Mark standards
- Weight: 2 lbs.
- Comes with lifetime warranty
| Manufacturer # | M/GEPSWSFP01NA |
| Brand Name | Transition Networks |
| Depth in Inches | 3.3 |
| Ethernet | Yes |
| Fiber Connector Type | RJ-45 |
| Gigabit | Yes |
| Height in Inches | 0.85 |
| Hot Swappable | Yes |
| Network Transceiver Type | Media Converter |
| Operating Temperature (celsius) | 0 to 50 |
| Operating Temperature (fahrenheit) | 32 to 122 |
| Selling Quantity (uom) | Each |
| True Color | Black |
| Weight (lbs.) | 2 |
| Width in Inches | 1.8 |
Details
The Transition Networks® M/GE-PSW-SFP-01-NA mini GbE media converter provides cost-effective and entry level media conversion of 10/100/1000Base-T stand alone copper connection to 1000Base-X fiber connections. This hot swappable media converter has dual speed SFP port that supports autosensing 100 m or 1000 m SFP transceivers. The LEDs of the converter provide quick status information. This converter features auto-negotiation, auto-MDI/MDIX, automatic link restoration and fixed full duplex on fiber.
- Media converter provides cost-effective and entry level media conversion
- Dimensions: 0.85"H x 1.8"W x 3.3"D
- Comes in black color
- Interfaces/ports: 1 x 10/100/1000Base-T RJ-45 to 100/1000Base-X SFP slot
- Ethernet technology: Gigabit Ethernet
- Power supply: Input: 4.5 VDC - 14 VDC, external AC/DC required, 12 VDC, 0.5 A, consumption: 2.4 W
- Status LEDs: PWR (power) below RJ-45: On = Power, FX-link/act upper Left on RJ-45: On = link, TX-link/act upper right on RJ-45: On = link
- Auto-negotiation, fixed full-duplex on fiber, auto-MDI/MDIX
- Automatic link restoration, jumbo frame up to 10240 bytes
- Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, humidity: 5 - 95% (non-condensing)
- Meets safety: Wall mount power supply, UL, cUL (Canada), FCC class A, CISPR22/EN55022 class A, EN55024, CE Mark standards
- Weight: 2 lbs.
- Comes with lifetime warranty
| Attribute Name | Attribute Value |
|---|
