Highlights
View Details- Wireless handheld barcode scanner
- Comes in twilight black color
- Dimensions: 6.9"H x 2.6"W x 3.9"D

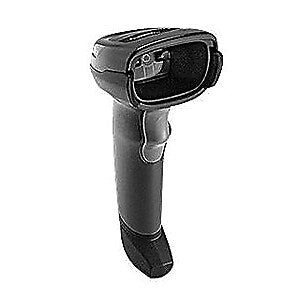

Zebra® DS2200 Series DS2278-SR7U2100PRW Wireless Handheld Barcode Scanner
Log in to see pricing


Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

The Zebra® DS2200 series DS2278-SR7U2100PRW wireless handheld barcode scanner in twilight black color, is perfect for point of sale environment. This scanner is easy to use and scans 1D and 2D electronic barcodes. It scans 60 images per minute at 640 x 48
- Wireless handheld barcode scanner
- Comes in twilight black color
- Dimensions: 6.9"H x 2.6"W x 3.9"D
- Interface: USB, RS232, keyboard wedge, TGCS (IBM) 46XX over RS485
- Power: 4.5 to 5.5 VDC (host), 2400 mAh li-ion battery with 84 hours full charge operating
- Scan speed: 110000 scans at 60 scans per min or 50000 scans at 10 scans per min
- Imager field of view: 32.8 deg horizontal x 24.8 deg vertical nominal, image sensor: 640 x 480 pixels
- Keyboard: Supports over 90 international keyboards, user indicators: Direct decode indicator, good decode LEDs, rear view, LED's, beeper
- Motion tolerance: Up to 5" per second for 13 mil, swipe speed: Up to 30" per second for 13 mil
- Light source: Aiming pattern, linear 624 nm amber LED, illumination: (2) 645 nm super red LEDs
- Minimum print contrast: 25% minimum reflective difference, +/- 65 deg skew, +/- 65 deg pitch and 0 to 360 deg roll tolerance
- Features pre-configured and ready to use, right out of the box, backwards compatible with Zebra LS2208 series cables, auto-host detect cables
- Easy integration with a tablet-based POS, deploy anywhere in the world, easily customize settings with 123 scan, fast, easy and flexible charging
- Temperature: 32 to 122 deg F (operating), -40 to 158 deg F (storage), 5 to 95% (humidity), Environmental sealing: IP42
- Meets EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07,RoHS and IEC standards
- Weight: 0.46 lbs.
- Comes with 36 month warranty
Manufacturer # | DS2278SR7U2100PRW |
Barcode Reader & Scanner Type | Barcode Scanners |
Brand Name | Zebra |
Connector, Port or Interface Type(s) | USB, RS232, keyboard wedge, TGCS (IBM) 46XX Over RS485 |
Depth in Inches | 3.9 |
Digit Pitch | +/- 65 deg |
Handheld or Mounted | Handheld |
Height in Inches | 6.9 |
Power Source | 4.5 - 5.5 VDC |
Series or Collection | DS2200 |
True Color | Twilight Black |
Weight (ounces) | 7.5 |
Width in Inches | 2.6 |
Details
The Zebra® DS2200 series DS2278-SR7U2100PRW wireless handheld barcode scanner in twilight black color, is perfect for point of sale environment. This scanner is easy to use and scans 1D and 2D electronic barcodes. It scans 60 images per minute at 640 x 48
- Wireless handheld barcode scanner
- Comes in twilight black color
- Dimensions: 6.9"H x 2.6"W x 3.9"D
- Interface: USB, RS232, keyboard wedge, TGCS (IBM) 46XX over RS485
- Power: 4.5 to 5.5 VDC (host), 2400 mAh li-ion battery with 84 hours full charge operating
- Scan speed: 110000 scans at 60 scans per min or 50000 scans at 10 scans per min
- Imager field of view: 32.8 deg horizontal x 24.8 deg vertical nominal, image sensor: 640 x 480 pixels
- Keyboard: Supports over 90 international keyboards, user indicators: Direct decode indicator, good decode LEDs, rear view, LED's, beeper
- Motion tolerance: Up to 5" per second for 13 mil, swipe speed: Up to 30" per second for 13 mil
- Light source: Aiming pattern, linear 624 nm amber LED, illumination: (2) 645 nm super red LEDs
- Minimum print contrast: 25% minimum reflective difference, +/- 65 deg skew, +/- 65 deg pitch and 0 to 360 deg roll tolerance
- Features pre-configured and ready to use, right out of the box, backwards compatible with Zebra LS2208 series cables, auto-host detect cables
- Easy integration with a tablet-based POS, deploy anywhere in the world, easily customize settings with 123 scan, fast, easy and flexible charging
- Temperature: 32 to 122 deg F (operating), -40 to 158 deg F (storage), 5 to 95% (humidity), Environmental sealing: IP42
- Meets EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07,RoHS and IEC standards
- Weight: 0.46 lbs.
- Comes with 36 month warranty
