Highlights
View Details- Category 6 for Network Device
- RJ-45 Male
- 15ft

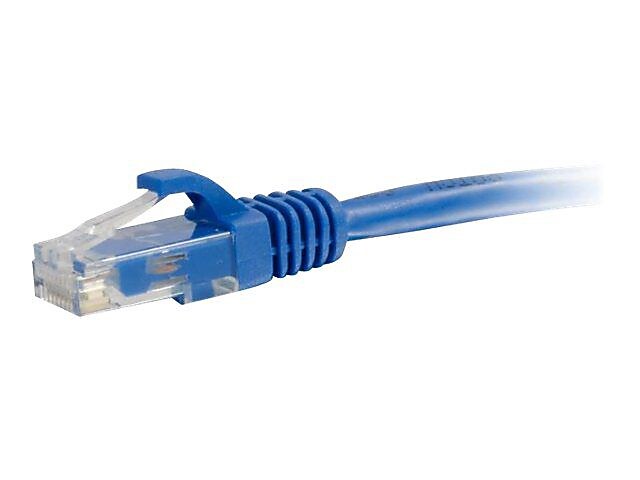

15ft Cat6 Snagless Unshielded (UTP) Network Patch Cable - Blue
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The C2G 22014 15' Cat6 snagless blue network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
- Category 6 for Network Device
- RJ-45 Male
- 15ft
- Blue
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion
- 0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
- DC resistance: 9.38 Ohm/100 m maximum
- Voltage: 30 V
- Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Temperature rating: 60 deg C
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.4 lbs.
- Comes with lifetime warranty
| Manufacturer # | 22015 |
| Brand Name | C2G Cables to Go |
| Cable Use | Data |
| End 1 Connector Type | RJ45 |
| End 2 Connector Type | RJ45 |
Details
The C2G 22014 15' Cat6 snagless blue network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
- Category 6 for Network Device
- RJ-45 Male
- 15ft
- Blue
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion
- 0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
- DC resistance: 9.38 Ohm/100 m maximum
- Voltage: 30 V
- Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Temperature rating: 60 deg C
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.4 lbs.
- Comes with lifetime warranty
| Attribute Name | Attribute Value |
|---|
