Highlights
View Details- Ethernet technology: Gigabit Ethernet, Network technology: 10/100/1000Base-T, Media type supported: Twisted pair
- Interfaces/ports: 16 x RJ-45
- Dimensions: 1.7"(H) x 13.9"(W) x 8.5"(D)

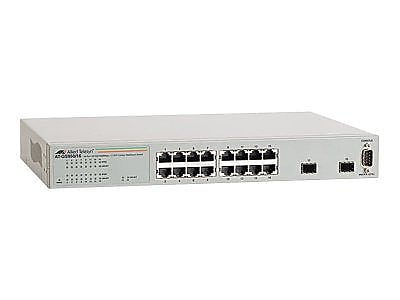

Allied Telesis 16-Port Gigabit Ethernet Managed Switch, 10/100/1000 Mbps (AT-GS950/16-10)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Allied Telesis™ Managed WebSmart gigabit ethernet switch features 10/100/1000Base-T network technology. Switch has web-based management protocol and supports 2 layer communication.
- Ethernet technology: Gigabit Ethernet, Network technology: 10/100/1000Base-T, Media type supported: Twisted pair
- Interfaces/ports: 16 x RJ-45
- Dimensions: 1.7"(H) x 13.9"(W) x 8.5"(D)
- Form factor: Wall-mountable, rack-mountable
- Management protocols: Web-based management, port-based VLAN, 802.1p QoS, port trunking/link aggregation, port mirroring, priority queue's, spanning tree, statistics & diagnostics
- Layer supported: 2
- Expansion slots: 2, Expansion slot details: 16 x Gigabit Ethernet network, 2 x Fast Ethernet expansion slot
- Temperature: 32 - 104 deg F, Humidity: 5 - 90%, Voltage: 110 - 220 VAC input
- Includes: AT-GS950/16 16 port Gigabit webSmart switch, wall & 19" rack-mount brackets, U.S. power cord
- Certifications: IEEE 802.3x, UL 1950, FCC/EN55022 Class A, VCCI-Class A, C-Tick, EN60950 (TUV), EN55024, CE
- Weight: 5.25 lbs.
- Warranty: Lifetime limited
| Manufacturer # | ATGS950/1610 |
| Auto-detecting | Yes |
| Auto-sensing | No |
| Brand Name | Allied Telesis |
| Data Rate Performances | 10/100/1000Mbps |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 8.5 |
| Height in Inches | 1.7 |
| Layer | 2 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Module Support | No |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 16 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Quality of Service | Yes |
| Snmp | No |
| Switch Form Factor | Wall Mountable, Rack-Mountable |
| Vlan Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 5.25 |
| Width in Inches | 13.9 |
Details
Allied Telesis™ Managed WebSmart gigabit ethernet switch features 10/100/1000Base-T network technology. Switch has web-based management protocol and supports 2 layer communication.
- Ethernet technology: Gigabit Ethernet, Network technology: 10/100/1000Base-T, Media type supported: Twisted pair
- Interfaces/ports: 16 x RJ-45
- Dimensions: 1.7"(H) x 13.9"(W) x 8.5"(D)
- Form factor: Wall-mountable, rack-mountable
- Management protocols: Web-based management, port-based VLAN, 802.1p QoS, port trunking/link aggregation, port mirroring, priority queue's, spanning tree, statistics & diagnostics
- Layer supported: 2
- Expansion slots: 2, Expansion slot details: 16 x Gigabit Ethernet network, 2 x Fast Ethernet expansion slot
- Temperature: 32 - 104 deg F, Humidity: 5 - 90%, Voltage: 110 - 220 VAC input
- Includes: AT-GS950/16 16 port Gigabit webSmart switch, wall & 19" rack-mount brackets, U.S. power cord
- Certifications: IEEE 802.3x, UL 1950, FCC/EN55022 Class A, VCCI-Class A, C-Tick, EN60950 (TUV), EN55024, CE
- Weight: 5.25 lbs.
- Warranty: Lifetime limited
| Attribute Name | Attribute Value |
|---|
