Highlights
View Details- Fast Ethernet unmanaged switch connect any port to a 10 or 100 Mbps network to multiply bandwidth, boost response time & satisfy heavy load demands
- 5 x RJ-45 10/100Base-T auto-negotiation network
- Switching capacity: 1 Gbps, forwarding rate: 148800/pps

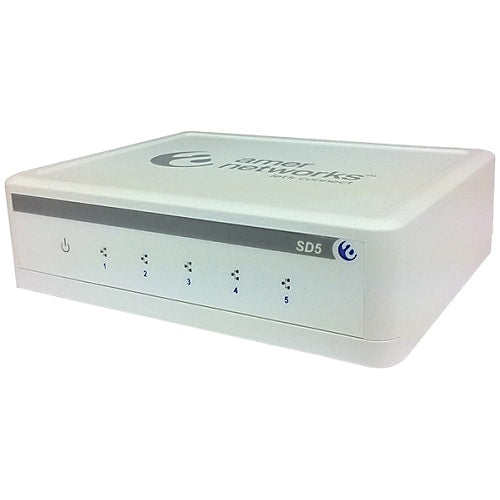

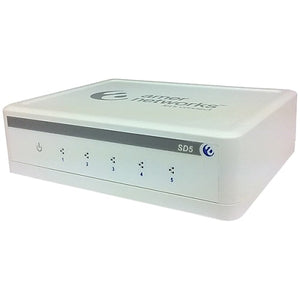

Amer 5-Port Ethernet Unmanaged Switch, White (SD5)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Amer Networks™ SD5 Nway fast Ethernet switch in white, is a perfect choice for small workgroups. This desktop unmanaged switch helps you to multiply bandwidth, boost response time and satisfy heavy load demands. The 5-port switch supports Auto-MDIX, which automatically compensates the connection type. The palm-sized switch allows you to connect any port to either a 10 Mbps or 100 Mbps network.
- Fast Ethernet unmanaged switch connect any port to a 10 or 100 Mbps network to multiply bandwidth, boost response time & satisfy heavy load demands
- 5 x RJ-45 10/100Base-T auto-negotiation network
- Switching capacity: 1 Gbps, forwarding rate: 148800/pps
- Dimensions: 1.1"H x 4"W x 3.2"D
- Meets FCC class A, CE mark class A standards
- Form factor: Desktop
- Power supply: External power adapter 7.5 VDC, 1 A
- Indicators: LED status - port link activity, port connectivity, power
- Mac address: 1000
- Layer supported: 2, color: White
- Includes Ethernet switch, AC power adapter and quick installation guide
- Temperature rating: 32 to 122 deg F (operating), humidity: 10 to 90% operating
- Weight: 1 lbs.
- Comes with limited lifetime warranty
| Manufacturer # | SD5 |
| Address Database Size | 1000 |
| Auto-detecting | No |
| Auto-sensing | No |
| Brand Name | Amer |
| Depth in Inches | 3.2 |
| Full-duplex | No |
| Gaming | Non Gaming |
| Height in Inches | 1.1 |
| Lacp | No |
| Layer | 2 |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 5 |
| Output Voltage | 4000 mAh |
| Performance Class | Fast Ethernet |
| Power Supply | External power adapter 7.5 VDC, 1 A |
| Power over Ethernet | No |
| Quality of Service | No |
| Snmp | No |
| Switch Form Factor | Desktop |
| True Color | White |
| Vlan Support | No |
| Warranty Information | Lifetime |
| Weight (lbs.) | 1 |
| Width in Inches | 4 |
Details
The Amer Networks™ SD5 Nway fast Ethernet switch in white, is a perfect choice for small workgroups. This desktop unmanaged switch helps you to multiply bandwidth, boost response time and satisfy heavy load demands. The 5-port switch supports Auto-MDIX, which automatically compensates the connection type. The palm-sized switch allows you to connect any port to either a 10 Mbps or 100 Mbps network.
- Fast Ethernet unmanaged switch connect any port to a 10 or 100 Mbps network to multiply bandwidth, boost response time & satisfy heavy load demands
- 5 x RJ-45 10/100Base-T auto-negotiation network
- Switching capacity: 1 Gbps, forwarding rate: 148800/pps
- Dimensions: 1.1"H x 4"W x 3.2"D
- Meets FCC class A, CE mark class A standards
- Form factor: Desktop
- Power supply: External power adapter 7.5 VDC, 1 A
- Indicators: LED status - port link activity, port connectivity, power
- Mac address: 1000
- Layer supported: 2, color: White
- Includes Ethernet switch, AC power adapter and quick installation guide
- Temperature rating: 32 to 122 deg F (operating), humidity: 10 to 90% operating
- Weight: 1 lbs.
- Comes with limited lifetime warranty
