Highlights
View Details- 12 VDC, 5.4 A power supply with 3.5 mm Phoenix connector with retention screws
- Input voltage: 100-240 +10% VAC, 47-63 Hz
- Comes in molded black matte plastic enclosure

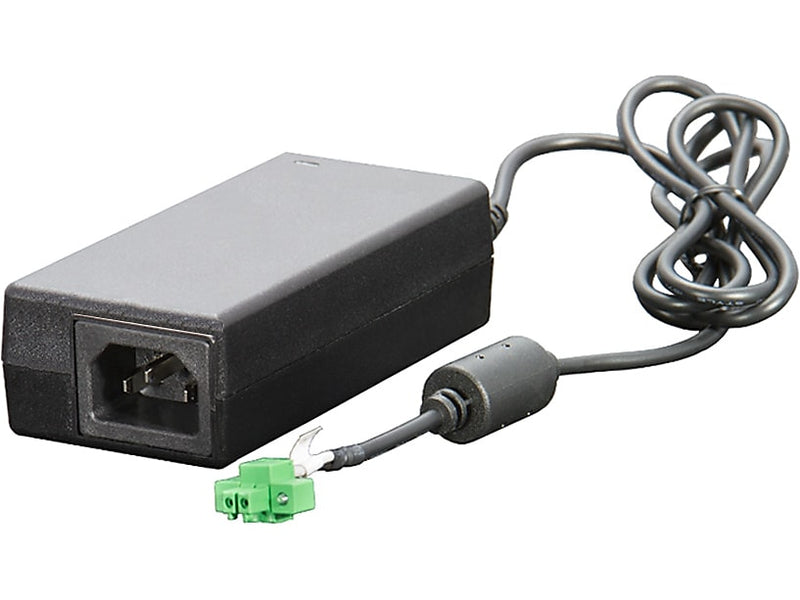

AMX PSR5.4 External Power Supply, Black (FG423-48)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The PSR5.4 power supply provides 5.4A of DC power and is an optional power supply for Modero X Touch Panels, and ships as an included accessory with the NMX-ENC H.264 Encoders. It includes a 3.5 mm Phoenix Connector with retention screws.
- 12 VDC, 5.4 A power supply with 3.5 mm Phoenix connector with retention screws
- Input voltage: 100-240 +10% VAC, 47-63 Hz
- Comes in molded black matte plastic enclosure
- Meets or exceeds US, CSA, CE standards
- Includes 2-pin retained captive-wire connector and US power cord
| Manufacturer # | FG42348 |
| Brand Name | AMX |
| Compatible with | Modero X Touch Panels |
| Connector, Port or Interface Type(s) | Mini 2-pin captive wire connector (3.5 mm) |
| Depth in Inches | 1.25 |
| Frequency (hz) | 47 - 63 Hz |
| Height in Inches | 4.5 |
| Input Voltage | 100-240 VAC |
| Output Voltage | 12 VDC |
| Power Supply Form Factor | External |
| Protection Type | Over-voltage, over-current, short-circuit, transient and thermal |
| Series or Collection | PSR5.4 |
| True Color | Black |
| Weight (ounces) | 17.6 |
| Weight (lbs.) | 1.1 |
| Width in Inches | 2 |
Details
The PSR5.4 power supply provides 5.4A of DC power and is an optional power supply for Modero X Touch Panels, and ships as an included accessory with the NMX-ENC H.264 Encoders. It includes a 3.5 mm Phoenix Connector with retention screws.
- 12 VDC, 5.4 A power supply with 3.5 mm Phoenix connector with retention screws
- Input voltage: 100-240 +10% VAC, 47-63 Hz
- Comes in molded black matte plastic enclosure
- Meets or exceeds US, CSA, CE standards
- Includes 2-pin retained captive-wire connector and US power cord
