Highlights
View Details- Size: 22 mm(H) x 45 mm(W) x 44 mm(D)
- Black
- For use with: APC UPS Network Management Cards

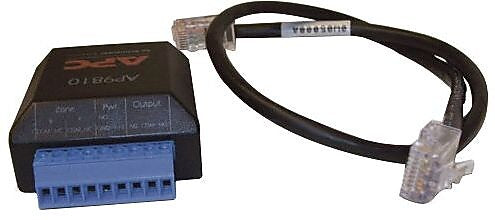

APC® AP9810 Dry Contact I/O Interface
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
APC® AP9810 Dry Contact I/O Interface
- Size: 22 mm(H) x 45 mm(W) x 44 mm(D)
- Black
- For use with: APC UPS Network Management Cards
- Connections: 1 x adapter - bare wire - RJ-45(female), 1 x network cable - RJ-45(male) - RJ-45(male) - 9.8 in
- Operating conditions: -5 - 45 deg C temp, 5 - 95% relative humidity, 0-999.9 m elevation, storage conditions: -15 - 65 deg C temp, 5 - 95% relative humidity, 0-4500 m elevation
- Monitor conditions from external devices, control output from external devices via output relay(s), data logging, scheduling
- Pinpoint the timing and sequence of events leading up to an incident with the event log, enterprise management system compatible, password security, three-tier user access, radius support, power chute network shutdown
- Compatibility: APC UPS Network Management Cards
- compliant and standards: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, RoHS, REACH, PEP, EOLI
- Package contents: Cat 5 ethernet cable, User Manual
- Weight: 0.05 kg
- Warranty: 2 years repair or replace
| Manufacturer # | BX9836 |
| Battery Backup Lcd Display | No |
| Battery Backup Or Ups Device Type | UPS |
| Battery Backup Or Ups Form Factor | Desktop |
| Brand Name | APC |
| Compliance Standards | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, RoHS, REACH, PEP, EOLI |
| Connector, Port Or Interface Type(s) | RJ45 |
| Depth in Inches | 1.76 |
| Height in Inches | 0.87 |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Output Voltage | 12 |
| True Color | Black |
| Types of Battery | Other |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.11 |
| Width in Inches | 1.78 |
Details
APC® AP9810 Dry Contact I/O Interface
- Size: 22 mm(H) x 45 mm(W) x 44 mm(D)
- Black
- For use with: APC UPS Network Management Cards
- Connections: 1 x adapter - bare wire - RJ-45(female), 1 x network cable - RJ-45(male) - RJ-45(male) - 9.8 in
- Operating conditions: -5 - 45 deg C temp, 5 - 95% relative humidity, 0-999.9 m elevation, storage conditions: -15 - 65 deg C temp, 5 - 95% relative humidity, 0-4500 m elevation
- Monitor conditions from external devices, control output from external devices via output relay(s), data logging, scheduling
- Pinpoint the timing and sequence of events leading up to an incident with the event log, enterprise management system compatible, password security, three-tier user access, radius support, power chute network shutdown
- Compatibility: APC UPS Network Management Cards
- compliant and standards: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, RoHS, REACH, PEP, EOLI
- Package contents: Cat 5 ethernet cable, User Manual
- Weight: 0.05 kg
- Warranty: 2 years repair or replace
