Highlights
View Details- IEC-320 C20 8.2' 16 A 200 - 230 V input
- 120 - 230 V 50/60 Hz output
- Outlet connector: 10 IEC 320 C13, 2 IEC 320 C19

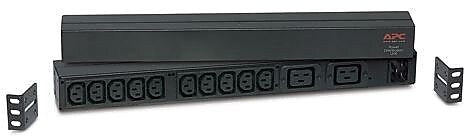

APC 200 - 230 V Basic Power Distribution Unit, 12-Outlet, 1U Rack Mount, Black (AP9559)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
APC® Basic power distribution unit featuring rack mounting brackets can be 1U horizontal rack mounted and offers overload protection up to 24 A. Unit has input voltage rating of 200 - 230 V and input current rating of 16 A.
- IEC-320 C20 8.2' 16 A 200 - 230 V input
- 120 - 230 V 50/60 Hz output
- Outlet connector: 10 IEC 320 C13, 2 IEC 320 C19
- 1U horizontal rack mount
- Includes: Rack mounting brackets, user manual
- Puts power where it is needed most-in the racks near the equipment
- 0 - 95% operating relative humidity
- 0 - 95% storage relative humidity
- Operating/storage elevation: 0 - 10000'/0 - 50000'
- Certifications: CE, GOST, VDE, Victoria, RoHS complaint
- Weight: 9 lbs.
- Dimensions: 1 3/4"(H) x 17.60"(W) x 2 1/4"(D)
- 2 years limited Mrf. warranty
| Manufacturer # | AP9559 |
| Brand Name | APC |
| Cable Length (ft.) | 8.2 |
| Depth in Inches | 2.25 |
| Height in Inches | 1.75 |
| Input Current | 16 A |
| Input Voltage | 200 - 230 V |
| Operating Temperature (celsius) | 0 - 45 deg C |
| Outlet Connectors | 10 IEC 320 C13, 2 IEC 320 C19 |
| Outlet Count | 12 |
| Output Frequency | 50/60 Hz |
| Output Voltage | 120 - 230 V |
| Overload Protection | 24 A |
| Power Distribution Unit Type | Basic |
| Rack Units | 1U |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 9 |
| Width in Inches | 17.6 |
Details
APC® Basic power distribution unit featuring rack mounting brackets can be 1U horizontal rack mounted and offers overload protection up to 24 A. Unit has input voltage rating of 200 - 230 V and input current rating of 16 A.
- IEC-320 C20 8.2' 16 A 200 - 230 V input
- 120 - 230 V 50/60 Hz output
- Outlet connector: 10 IEC 320 C13, 2 IEC 320 C19
- 1U horizontal rack mount
- Includes: Rack mounting brackets, user manual
- Puts power where it is needed most-in the racks near the equipment
- 0 - 95% operating relative humidity
- 0 - 95% storage relative humidity
- Operating/storage elevation: 0 - 10000'/0 - 50000'
- Certifications: CE, GOST, VDE, Victoria, RoHS complaint
- Weight: 9 lbs.
- Dimensions: 1 3/4"(H) x 17.60"(W) x 2 1/4"(D)
- 2 years limited Mrf. warranty
