Highlights
View Details- Basic rack power distribution unit offers a range of basic and metered PDUs for any application
- Dimensions: 32.81"H x 2.19"W x 1.85"D
- Input connection: NEMA L6-30P cord, output connections: (14) IEC 60320 C13 and (2) IEC 60320 C19

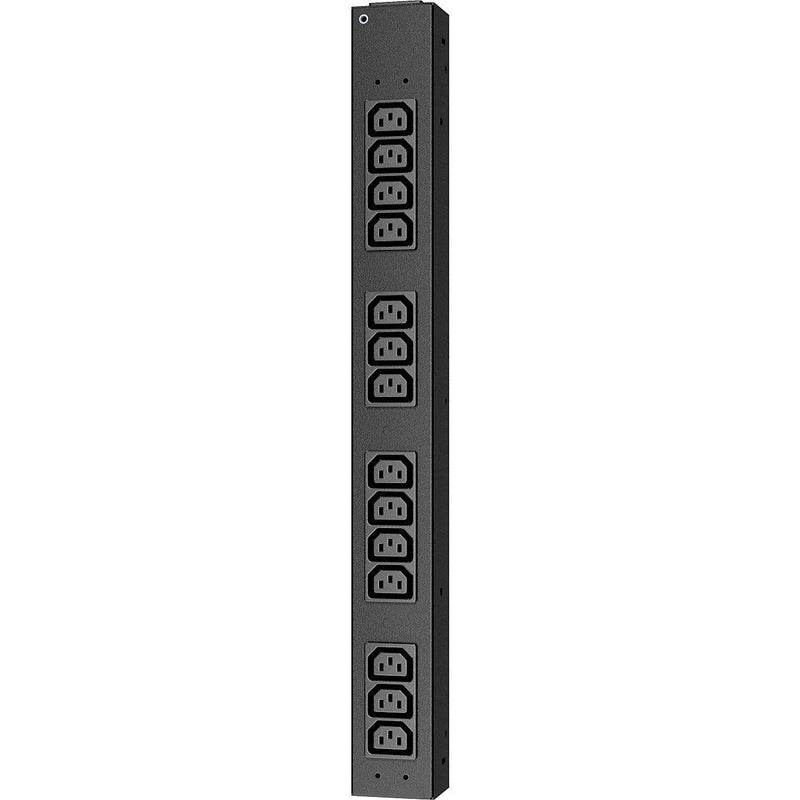

APC 200 - 240 VAC +6% to -10% Basic Power Distribution Unit, 16-Outlet, Black (AP6002A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The APC® AP6002A basic rack power distribution unit with 16-outlet has a voltage rating of 200-240 V AC.
- Basic rack power distribution unit offers a range of basic and metered PDUs for any application
- Dimensions: 32.81"H x 2.19"W x 1.85"D
- Input connection: NEMA L6-30P cord, output connections: (14) IEC 60320 C13 and (2) IEC 60320 C19
- Maximum input current (phase): 30 A (24 A UL/C-UL derated), input frequency: 50/60 Hz
- Maximum output current: C19, 16 A, C13, 12 A (UL/CUL derated) C19, 20 A, C13, 15 A (PSE) (outlet), 30 A (24 A UL/C-UL derated) (phase)
- Acceptable input voltage: 200-240 VAC +6% to -10%, output voltage: 200-240 VAC +6% to -10%
- Overcurrent protection (internal): (2) 20 A, 2-pole breakers
- Distributes power to devices in the rack
- Cord length: 10'
- Maximum elevation (above MSL): Operating: 0 to 3048 m
- Temperature: Operating: 0 to 50 deg C, storage: -15 to 60 deg C, humidity: Operating/storage: 5 to 95%, non-condensing
- Includes NEMA L6-30P cord
- Meets Safety approvals: UL/C-UL, ROHS: 2011/65/EU-latest revision standards
- Weight: 8.49 lbs.
| Manufacturer # | AP6002A |
| Brand Name | APC |
| Cable Length (ft.) | 10 |
| Depth in Inches | 1.85 |
| Height in Inches | 32.81 |
| Input Connector | NEMA L6-30P Cord |
| Input Current | 30 A (24A UL/C-UL Derated) (Phase) Maximum |
| Input Voltage | 200 - 240 VAC +6% to -10% (Acceptable) |
| Operating Temperature (celsius) | 0 to 50 deg C |
| Operating Temperature (fahrenheit) | 32 to 122 deg F |
| Outlet Connectors | 14 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Outlet Count | 16 |
| Output Frequency | 50/60 Hz |
| Output Voltage | 200 - 240 VAC +6% to -10% |
| Overload Protection | 2 x 20 A, 2-Pole Breakers |
| Power Distribution Unit Type | Basic |
| True Color | Black |
| Weight (lbs.) | 8.49 |
| Width in Inches | 2.19 |
Details
The APC® AP6002A basic rack power distribution unit with 16-outlet has a voltage rating of 200-240 V AC.
- Basic rack power distribution unit offers a range of basic and metered PDUs for any application
- Dimensions: 32.81"H x 2.19"W x 1.85"D
- Input connection: NEMA L6-30P cord, output connections: (14) IEC 60320 C13 and (2) IEC 60320 C19
- Maximum input current (phase): 30 A (24 A UL/C-UL derated), input frequency: 50/60 Hz
- Maximum output current: C19, 16 A, C13, 12 A (UL/CUL derated) C19, 20 A, C13, 15 A (PSE) (outlet), 30 A (24 A UL/C-UL derated) (phase)
- Acceptable input voltage: 200-240 VAC +6% to -10%, output voltage: 200-240 VAC +6% to -10%
- Overcurrent protection (internal): (2) 20 A, 2-pole breakers
- Distributes power to devices in the rack
- Cord length: 10'
- Maximum elevation (above MSL): Operating: 0 to 3048 m
- Temperature: Operating: 0 to 50 deg C, storage: -15 to 60 deg C, humidity: Operating/storage: 5 to 95%, non-condensing
- Includes NEMA L6-30P cord
- Meets Safety approvals: UL/C-UL, ROHS: 2011/65/EU-latest revision standards
- Weight: 8.49 lbs.
