Highlights
View Details- 50/60 Hz frequency
- Outlet connector: 30 x IEC 320 C13
- Cord length: 1.83 meters

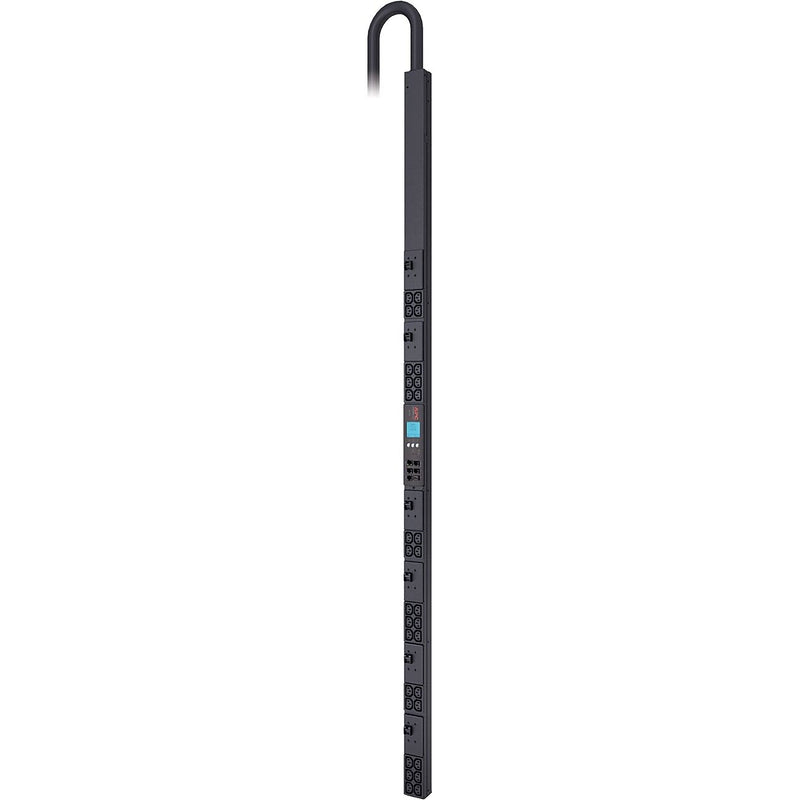

APC 208V Metered Power Distribution Unit, 30-Outlet, Black (PR7222)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
IEC 309 60A 3P+PE 208 VAC input, 17.20 kVA power rating
- 50/60 Hz frequency
- Outlet connector: 30 x IEC 320 C13
- Cord length: 1.83 meters
- Maximum line current per phase: 48 A, Maximum input current per phase: 60 A
- Protocols: SNMP, Telnet, Web
- Protection type: Overload protection
- Form factor: Rack-mountable
- Black
- Dimension: 72"(H) x 2.2"(W) x 2"(D)
- Networking: Ethernet 10/100, RS-232
- Operating temperature: 0 deg C to 55 deg C, Humidity: 5 - 95%, Operating elevation: 0-3000 meters
- Storage temperature: -25 deg C to 65 deg C, Humidity: 5 - 95%, Storage elevation: 0-15000 meters
- Includes Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13, installation guide, rack-mounting brackets, safety guide, serial configuration cable
- Compliance certificate: cUL, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VCCI Class A, REACH, RoHS
- Warranty: 2 years limited
| Manufacturer # | PR7222 |
| Brand Name | APC |
| Cable Length (ft.) | 6 |
| Depth in Inches | 2 |
| Height in Inches | 72 |
| Input Current | 48 A |
| Input Voltage | 208V |
| Load Capacity | 17.2 kVA |
| Operating Temperature (celsius) | 0 - 55 deg C |
| Outlet Connectors | 30 x IEC 320 C13 |
| Outlet Count | 30 |
| Output Frequency | 50/60 Hz |
| Overload Protection | Yes |
| Power Distribution Unit Type | Metered |
| True Color | Black |
| Warranty Information | 2 Year |
| Width in Inches | 2.2 |
Details
IEC 309 60A 3P+PE 208 VAC input, 17.20 kVA power rating
- 50/60 Hz frequency
- Outlet connector: 30 x IEC 320 C13
- Cord length: 1.83 meters
- Maximum line current per phase: 48 A, Maximum input current per phase: 60 A
- Protocols: SNMP, Telnet, Web
- Protection type: Overload protection
- Form factor: Rack-mountable
- Black
- Dimension: 72"(H) x 2.2"(W) x 2"(D)
- Networking: Ethernet 10/100, RS-232
- Operating temperature: 0 deg C to 55 deg C, Humidity: 5 - 95%, Operating elevation: 0-3000 meters
- Storage temperature: -25 deg C to 65 deg C, Humidity: 5 - 95%, Storage elevation: 0-15000 meters
- Includes Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13, installation guide, rack-mounting brackets, safety guide, serial configuration cable
- Compliance certificate: cUL, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VCCI Class A, REACH, RoHS
- Warranty: 2 years limited
| Attribute Name | Attribute Value |
|---|
