Highlights
View Details- NEMA L5-20P 12' 20 A 100 - 120 V input
- 120 V 50/60 Hz output
- Outlet connector: 10 NEMA 5-20R

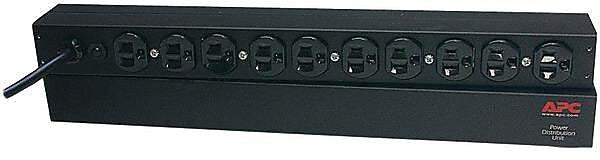

APC Basic Power Distribution Unit, 10-Outlet, 1U Rack Mount, Black (AP9564)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
APC® Basic power distribution unit featuring NEMA 5-20R outlet connector can be 1U horizontal rack mounted and includes rack mounting brackets. Unit offers NEMA L5-20P input connections and has input current rating of 20 A.
- NEMA L5-20P 12' 20 A 100 - 120 V input
- 120 V 50/60 Hz output
- Outlet connector: 10 NEMA 5-20R
- 1U horizontal rack mount
- Includes: Installation guide, rack mounting brackets
- 0 - 95% operating relative humidity
- 0 - 95% storage relative humidity
- Operating/storage elevation: 0 - 10000'/0 - 50000'
- Certifications: cUL recognized, CSA, UL 1363, UL recognized, RoHS complaint
- Weight: 5.50 lbs.
- Dimensions: 1.75"(H) x 17.60"(W) x 2.25"(D)
- 2 years limited Mrf. warranty
| Manufacturer # | AP9564 |
| Brand Name | APC |
| Cable Length (ft.) | 12 |
| Depth in Inches | 2.25 |
| Height in Inches | 1.75 |
| Input Connector | NEMA L5-20P |
| Input Current | 20 A |
| Operating Temperature (celsius) | -5 - 45 deg C |
| Outlet Connectors | 10 NEMA 5-20R |
| Outlet Count | 10 |
| Output Frequency | 50/60 Hz |
| Output Voltage | 120 V |
| Power Distribution Unit Type | Basic |
| Rack Units | 1U |
| True Color | Black |
| Warranty Information | 2 Year |
| Weight (lbs.) | 5.5 |
| Width in Inches | 17.6 |
Details
APC® Basic power distribution unit featuring NEMA 5-20R outlet connector can be 1U horizontal rack mounted and includes rack mounting brackets. Unit offers NEMA L5-20P input connections and has input current rating of 20 A.
- NEMA L5-20P 12' 20 A 100 - 120 V input
- 120 V 50/60 Hz output
- Outlet connector: 10 NEMA 5-20R
- 1U horizontal rack mount
- Includes: Installation guide, rack mounting brackets
- 0 - 95% operating relative humidity
- 0 - 95% storage relative humidity
- Operating/storage elevation: 0 - 10000'/0 - 50000'
- Certifications: cUL recognized, CSA, UL 1363, UL recognized, RoHS complaint
- Weight: 5.50 lbs.
- Dimensions: 1.75"(H) x 17.60"(W) x 2.25"(D)
- 2 years limited Mrf. warranty
