Highlights
View Details- NEMA L6-20P 12' 20 A 200 - 230 V input
- 208 V 50/60 Hz output
- Outlet connector: 12 IEC 320 C13

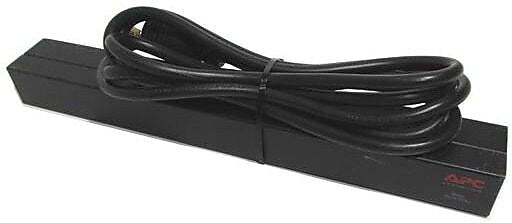

APC Basic Power Distribution Unit, Black (AP9566)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
APC® AP9566 Basic Power Distribution Unit, NEMA L6-20P
- NEMA L6-20P 12' 20 A 200 - 230 V input
- 208 V 50/60 Hz output
- Outlet connector: 12 IEC 320 C13
- 1U horizontal rack mount
- Includes: Installation guide, rack mounting brackets
- 0 - 95% operating relative humidity
- 0 - 95% storage relative humidity
- Operating/storage elevation: 0 - 10000'/0 - 50000'
- Certifications: cUL listed, CSA, UL 60950, UL listed, RoHS complaint
- Weight: 5.50 lbs.
- Dimensions: 1 3/4"(H) x 17.60"(W) x 2 1/4"(D)
- 2 years limited Mrf. warranty
| Manufacturer # | AP9566 |
| Brand Name | APC |
| Depth in Inches | 2.25 |
| Height in Inches | 1.75 |
| Input Connector | NEMA L6-20P |
| Output Frequency | 50/60 Hz |
| Output Voltage | 208 V |
| Power Distribution Unit Type | Basic |
| True Color | Black |
| Weight (lbs.) | 5.5 |
| Width in Inches | 17.6 |
Details
APC® AP9566 Basic Power Distribution Unit, NEMA L6-20P
- NEMA L6-20P 12' 20 A 200 - 230 V input
- 208 V 50/60 Hz output
- Outlet connector: 12 IEC 320 C13
- 1U horizontal rack mount
- Includes: Installation guide, rack mounting brackets
- 0 - 95% operating relative humidity
- 0 - 95% storage relative humidity
- Operating/storage elevation: 0 - 10000'/0 - 50000'
- Certifications: cUL listed, CSA, UL 60950, UL listed, RoHS complaint
- Weight: 5.50 lbs.
- Dimensions: 1 3/4"(H) x 17.60"(W) x 2 1/4"(D)
- 2 years limited Mrf. warranty
