Highlights
View Details- rack mountable network card has 340 J surge rating
- Receptacles: 6 x NEMA 5-20R, 1 x NEMA L5-20R, NEMA 5-20P
- Dimensions: 3.35"H x 17"W x 23"D

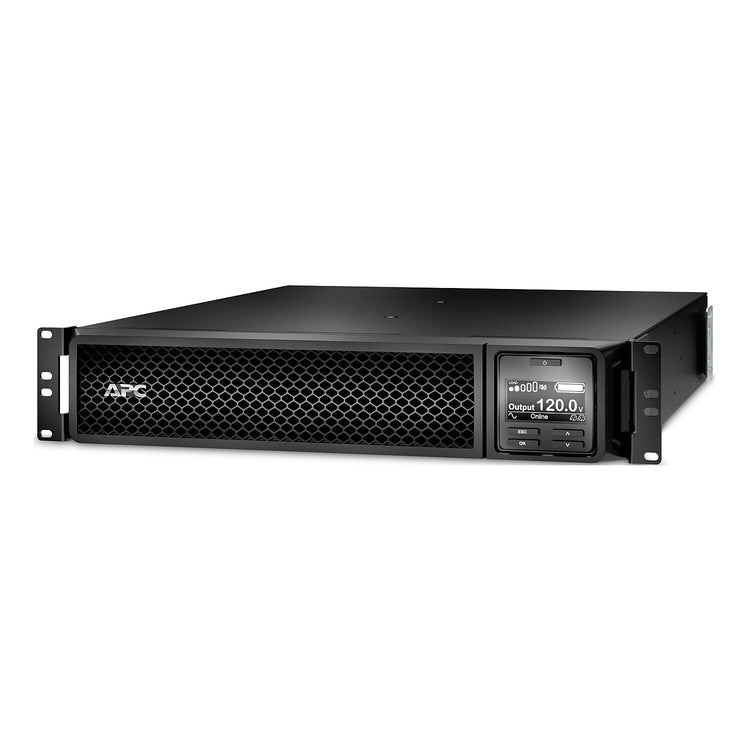

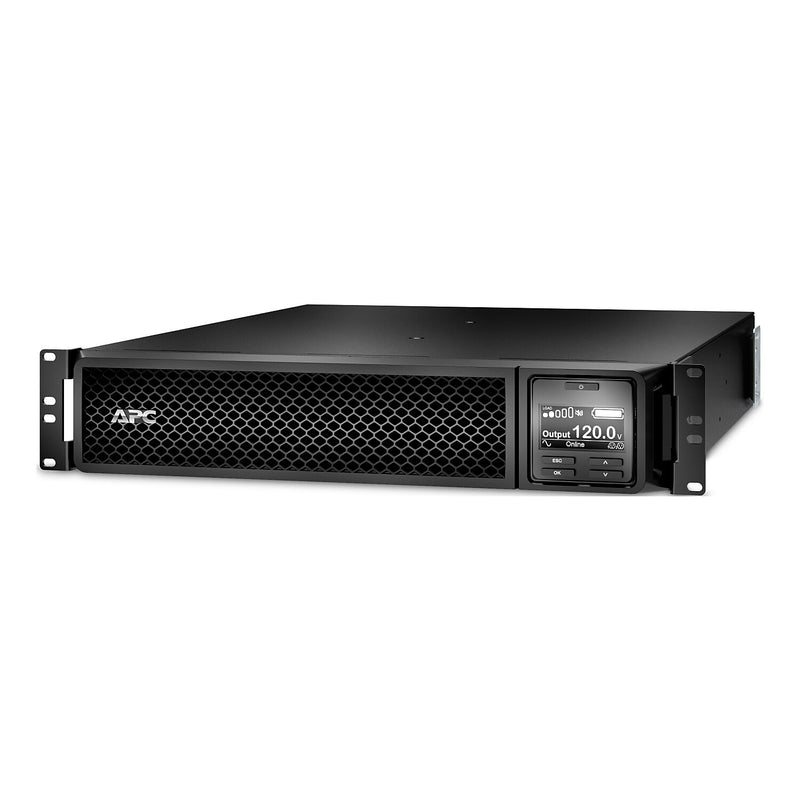

APC by Schneider Electric Smart-UPS SRT2200RMXLA-NC 340 J 2200 VA Rack Mountable Network Card, 6'
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The APC® Smart-UPS SRT2200RMXLA-NC 120 V 340 J 2200 VA rack-mountable network card, features multi-function LCD status and control console design. It supports an audible and visible alarm technologies for high performance. This 6' network card has RJ-45 10/100 Base-T, RJ-45 serial, smart-slot and USB interfaces for easy connectivity. It provides early-warning fault analysis, by-passes unused electrical components, text and mimic diagrams that display modes of operation.
- rack mountable network card has 340 J surge rating
- Receptacles: 6 x NEMA 5-20R, 1 x NEMA L5-20R, NEMA 5-20P
- Dimensions: 3.35"H x 17"W x 23"D
- Input voltage: 120 to 230 VAC, power: 1800 W, runtime: 3 min (full load), 10 min (half load)
- Meets CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778, RoHS, REACH standards
- Technology: Audible and visible alarm
- Cable length: 6'
- Design: Multi-function LCD status and control console
- Interface: RJ-45 10/100 Base-T, RJ-45 serial, smart-slot, USB
- Form factor: Tower/rack mountable, topology: Double conversion online
- Output: 120 V, 50/60 Hz, power: 1.8 KW, < 2% (voltage distortion), built-in bypass
- Battery: Sealed lead acid maintenance free, hot swappable, recharge time: 3 hrs., battery life: 3 to 5 years, Vah capacity: 306
- Online thermal dissipation: 535.0 BTU/hour, audible noise: 55 dBA
- Features provides early-warning fault analysis, by-passes unused electrical components, text and mimic diagrams that display modes of operation
- Protects the initial investment in the UPS when migrating from tower to rack mount environment
- Includes software CD, documentation CD, installation guide, network management card, rack mounting brackets, hardware, support rails, USB cable
- Temperature: 0 to 40 deg C (Operating), to 20 to -50 deg C (Storage), 0 to 95% (Humidity)
- Weight: 55 lbs.
- Comes with 3 year repair or replace warranty
| Manufacturer # | SRT2200RMXLANC |
| # of Usb Ports | 1 |
| Brand Name | APC |
| Indoor or Outdoor Use | Indoor |
| Pack Qty | 1 |
| Usb Ports Included | Includes USB Ports |
| Voltage-volts | 120 |
| Warranty Information | 3 Year |
Details
The APC® Smart-UPS SRT2200RMXLA-NC 120 V 340 J 2200 VA rack-mountable network card, features multi-function LCD status and control console design. It supports an audible and visible alarm technologies for high performance. This 6' network card has RJ-45 10/100 Base-T, RJ-45 serial, smart-slot and USB interfaces for easy connectivity. It provides early-warning fault analysis, by-passes unused electrical components, text and mimic diagrams that display modes of operation.
- rack mountable network card has 340 J surge rating
- Receptacles: 6 x NEMA 5-20R, 1 x NEMA L5-20R, NEMA 5-20P
- Dimensions: 3.35"H x 17"W x 23"D
- Input voltage: 120 to 230 VAC, power: 1800 W, runtime: 3 min (full load), 10 min (half load)
- Meets CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778, RoHS, REACH standards
- Technology: Audible and visible alarm
- Cable length: 6'
- Design: Multi-function LCD status and control console
- Interface: RJ-45 10/100 Base-T, RJ-45 serial, smart-slot, USB
- Form factor: Tower/rack mountable, topology: Double conversion online
- Output: 120 V, 50/60 Hz, power: 1.8 KW, < 2% (voltage distortion), built-in bypass
- Battery: Sealed lead acid maintenance free, hot swappable, recharge time: 3 hrs., battery life: 3 to 5 years, Vah capacity: 306
- Online thermal dissipation: 535.0 BTU/hour, audible noise: 55 dBA
- Features provides early-warning fault analysis, by-passes unused electrical components, text and mimic diagrams that display modes of operation
- Protects the initial investment in the UPS when migrating from tower to rack mount environment
- Includes software CD, documentation CD, installation guide, network management card, rack mounting brackets, hardware, support rails, USB cable
- Temperature: 0 to 40 deg C (Operating), to 20 to -50 deg C (Storage), 0 to 95% (Humidity)
- Weight: 55 lbs.
- Comes with 3 year repair or replace warranty
