Highlights
View Details- Network management card for a remote monitoring and control of an individual UPS by connecting it directly to the network
- Supports faster communication at 1Gbps over network
- Features one Ethernet port
APC Gigabit Ethernet Adapter (AP9640)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

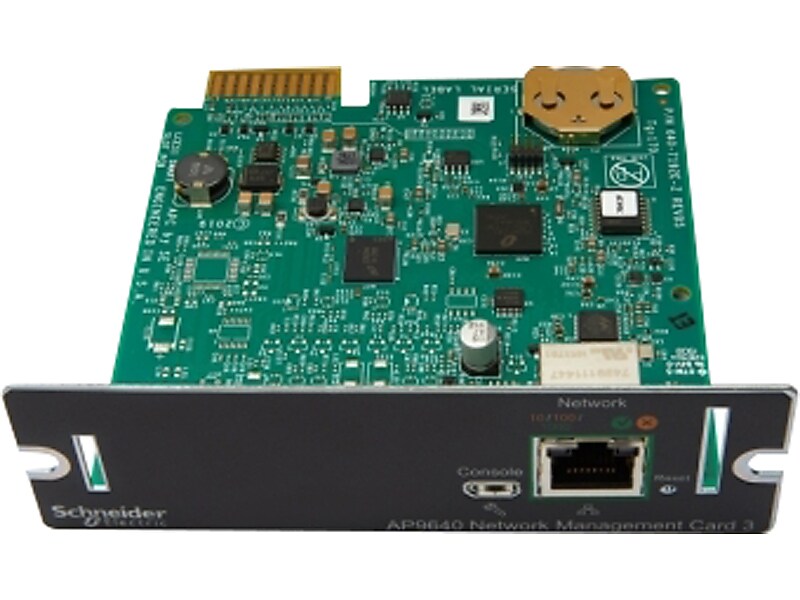

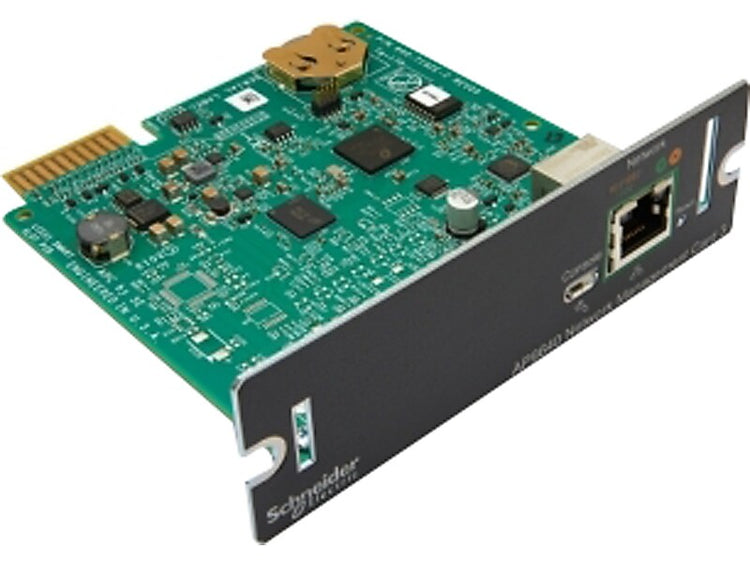

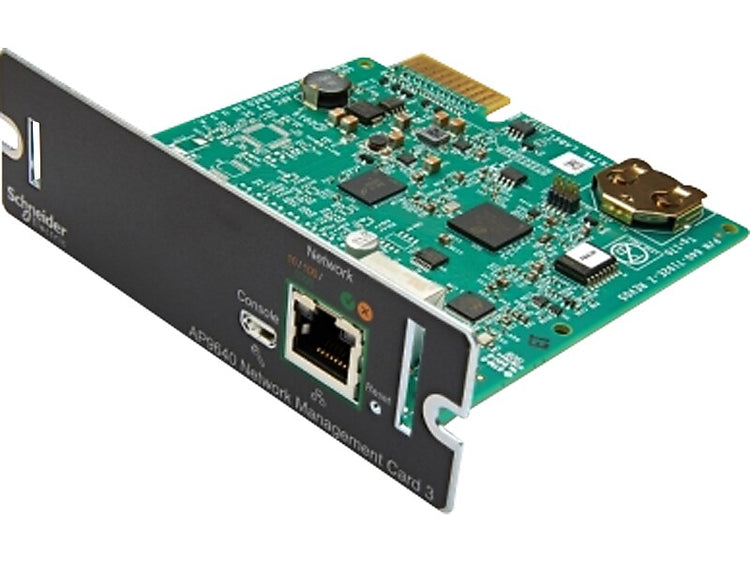

The APC AP9640 UPS network management card 3 is designed for a remote monitoring and control of an individual UPS by connecting it directly to the network. Compatible with Smart-UPS, this management card supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (Single Phase Smart-UPS only). Command line interface support offers simultaneous remote management access through Telnet and SSH. Micro-USB based console support allows for faster and easier troubleshooting and configuration. This card supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users. The ability to reboot equipment remotely saves dispatching technicians to remote locations. Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
- Network management card for a remote monitoring and control of an individual UPS by connecting it directly to the network
- Supports faster communication at 1Gbps over network
- Features one Ethernet port
- Dimensions: 1.5"H x 4.76"W x 4.49"D
- Meets or exceeds AS/NZS 3548 (C-Tick) class A, EN 55022 class A, EN 55024, FCC part 15 class A, GOST, ICES-003, VCCI class A, and RoHS standards
- Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
- Compatible with Smart-UPS
- Offers simultaneous remote management access through Telnet and SSH
- Supports reporting UPS information to building management systems or other third-party management systems via BACnet/IP (BTL certified) (Single-Phase Smart-UPS only)
- Capable of operating on a network using IPv6 protocol
- Micro-USB based console support allows for faster and easier troubleshooting and configuration
- Ability to reboot equipment remotely saves dispatching technicians to remote locations
- Multitier user access supports up to four access levels: administrator, device user, read-only user, and network-only user; with username and password requirements
- Supports Secure Boot with Root of Trust for enhanced security
- Package contents: network management card, USB cable, and user manual
- Operating temperature: 32 to 113 degrees Fahrenheit; operating humidity: 0 to 95%
- 2-year manufacturer limited warranty
| Manufacturer # | AP9640 |
| Brand Name | APC |
| Compatibility | Smart-UPS |
| Data Transfer Rate (gbps) | 1 |
| Data Transfer Rate (mbps) | 1000 |
| Depth in Inches | 4.49 |
| Encryption Type | HTTPS/SSL, SSH (up to 2048-bit), SNMPv3 |
| Gaming | Non Gaming |
| Gigabit | Yes |
| Height in Inches | 1.5 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Network Adapter Type | Ethernet |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Warranty Information | 2 Year |
| Weight (lbs.) | 0.18 |
| Width in Inches | 4.76 |
Details
The APC AP9640 UPS network management card 3 is designed for a remote monitoring and control of an individual UPS by connecting it directly to the network. Compatible with Smart-UPS, this management card supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (Single Phase Smart-UPS only). Command line interface support offers simultaneous remote management access through Telnet and SSH. Micro-USB based console support allows for faster and easier troubleshooting and configuration. This card supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users. The ability to reboot equipment remotely saves dispatching technicians to remote locations. Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
- Network management card for a remote monitoring and control of an individual UPS by connecting it directly to the network
- Supports faster communication at 1Gbps over network
- Features one Ethernet port
- Dimensions: 1.5"H x 4.76"W x 4.49"D
- Meets or exceeds AS/NZS 3548 (C-Tick) class A, EN 55022 class A, EN 55024, FCC part 15 class A, GOST, ICES-003, VCCI class A, and RoHS standards
- Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
- Compatible with Smart-UPS
- Offers simultaneous remote management access through Telnet and SSH
- Supports reporting UPS information to building management systems or other third-party management systems via BACnet/IP (BTL certified) (Single-Phase Smart-UPS only)
- Capable of operating on a network using IPv6 protocol
- Micro-USB based console support allows for faster and easier troubleshooting and configuration
- Ability to reboot equipment remotely saves dispatching technicians to remote locations
- Multitier user access supports up to four access levels: administrator, device user, read-only user, and network-only user; with username and password requirements
- Supports Secure Boot with Root of Trust for enhanced security
- Package contents: network management card, USB cable, and user manual
- Operating temperature: 32 to 113 degrees Fahrenheit; operating humidity: 0 to 95%
- 2-year manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
