Highlights
View Details- Dual conversion online UPS for power protection
- Load capacity: 2200 VA, 1800 W
- Dimensions: 3.35"H x 17"W x 23"D
APC Smart-UPS SRT 2200VA RM 2200VA UPS, 7-Outlets, Black (SRT2200RMXLA)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

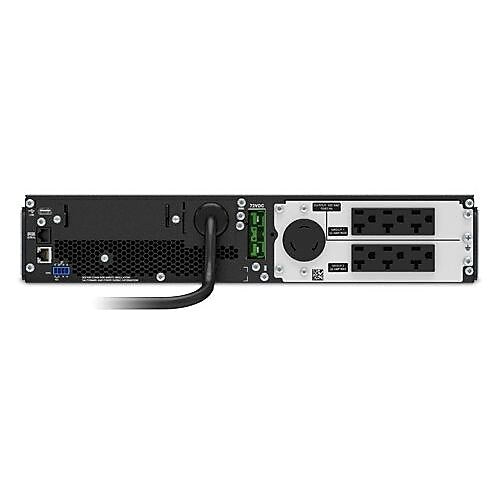

The APC® Smart-UPS™ SRT2200RMXLA 2200 VA 120 V dual conversion online UPS offers maximum battery recharge time of 3 hrs. It measures 3.35" x 17" x 23". The lead acid battery UPS has six NEMA 5-20R plugs, one NEMA L5-20R plug, SmartSlot, USB port, RJ-45 serial port for connectivity. The control panel has multi-function LCD status and control console. It has built-in bypass and audible as well as visible alarms that comes prioritized by severity. This hot-swappable UPS withstands an operating temperature rating of 0 to 40 deg C. It comes with CD with software, documentation CD, installation guide, rack mounting brackets, support rails, rack mounting hardware, USB cable and warranty card.
- Dual conversion online UPS for power protection
- Load capacity: 2200 VA, 1800 W
- Dimensions: 3.35"H x 17"W x 23"D
- Maximum battery recharge time: 3 hrs.
- Output voltage: 120 VAC (nominal)
- Control panel: Multi-function LCD status and control console
- Form factor: 2U tower/rack mountable, hot-swappable batteries
- Battery chemistry: Sealed Lead Acid, Replacement battery: APCRBC141, Battery capacity: 306 VAh
- Interface: SmartSlot, USB, RJ-45 serial, Receptacles: Six NEMA 5-20R, one NEMA L5-20R
- Input connections: NEMA 5-20P, Cord length: 6'
- Color: Black, Battery characteristics: Maintenance-free with suspended electrolyte, leak-proof, Emergency power off, Expected battery life: 3 -5 years
- Input voltage: 120 VAC (nominal), Output frequency (sync to mains): 50/60 Hz +/- 3 Hz, Input frequency: 40-70 Hz (auto sensing)
- Waveform type: Sine wave, Surge energy rating: 340 J
- Built-in bypass, Audible alarm: Audible and visible alarms prioritized by severity
- Temperature: 0-40 deg C, Storage Temperature: -20 to 50 deg C, Relative humidity: 0-95% (operating/storage), Protection class: IP 20
- Includes smart-UPS, CD with software, documentation CD, installation guide, rack mounting brackets, rack mounting hardware
- Meets ENERGY STAR, RoHS, REACH, CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 certifications and standards
- Weight: 55 lbs.
- Comes with 3 years (without battery) and 2 years (with battery) warranty
| Manufacturer # | SRT2200RMXLA |
| Battery Backup Connectivity | USB |
| Battery Backup Lcd Display | Yes |
| Battery Backup Run Time | less than 10 minutes |
| Battery Backup or Ups Device Type | On-Line UPS |
| Battery Backup or Ups Form Factor | Rackmount |
| Battery Life (years) | 3-5 |
| Brand Name | APC |
| Charge Time (hours) | 3 |
| Compliance Standards | EAC, RCM, EN 62040-1, IP20, VDE, RoHS, EN 62040-2, IEC 62040-1, IEC 62040-2 |
| Cord Length (ft.) | 6 |
| Depth in Inches | 23 |
| Height in Inches | 3.35 |
| Input Voltage | 120 VAC |
| Joule Rating | 340 |
| Mountable | Mountable |
| Operating Temperature (degrees) | 32 - 104 deg F |
| Outlet Count | 7 |
| Output Power Capacity (w) | 1800 |
| Output Voltage | 120 VAC |
| Power Capacity (va) | 2200 |
| Rack Units | 2U |
| Series or Collection | Smart-UPS SRT 2200VA RM |
| True Color | Black |
| Types of Battery | Lead Acid Battery |
| Usb Connectivity | USB Connection |
| Va Rating | 2001-2500 |
| Warranty Information | 3 Year |
| Weight (lbs.) | 55 |
| Width in Inches | 17 |
Details
The APC® Smart-UPS™ SRT2200RMXLA 2200 VA 120 V dual conversion online UPS offers maximum battery recharge time of 3 hrs. It measures 3.35" x 17" x 23". The lead acid battery UPS has six NEMA 5-20R plugs, one NEMA L5-20R plug, SmartSlot, USB port, RJ-45 serial port for connectivity. The control panel has multi-function LCD status and control console. It has built-in bypass and audible as well as visible alarms that comes prioritized by severity. This hot-swappable UPS withstands an operating temperature rating of 0 to 40 deg C. It comes with CD with software, documentation CD, installation guide, rack mounting brackets, support rails, rack mounting hardware, USB cable and warranty card.
- Dual conversion online UPS for power protection
- Load capacity: 2200 VA, 1800 W
- Dimensions: 3.35"H x 17"W x 23"D
- Maximum battery recharge time: 3 hrs.
- Output voltage: 120 VAC (nominal)
- Control panel: Multi-function LCD status and control console
- Form factor: 2U tower/rack mountable, hot-swappable batteries
- Battery chemistry: Sealed Lead Acid, Replacement battery: APCRBC141, Battery capacity: 306 VAh
- Interface: SmartSlot, USB, RJ-45 serial, Receptacles: Six NEMA 5-20R, one NEMA L5-20R
- Input connections: NEMA 5-20P, Cord length: 6'
- Color: Black, Battery characteristics: Maintenance-free with suspended electrolyte, leak-proof, Emergency power off, Expected battery life: 3 -5 years
- Input voltage: 120 VAC (nominal), Output frequency (sync to mains): 50/60 Hz +/- 3 Hz, Input frequency: 40-70 Hz (auto sensing)
- Waveform type: Sine wave, Surge energy rating: 340 J
- Built-in bypass, Audible alarm: Audible and visible alarms prioritized by severity
- Temperature: 0-40 deg C, Storage Temperature: -20 to 50 deg C, Relative humidity: 0-95% (operating/storage), Protection class: IP 20
- Includes smart-UPS, CD with software, documentation CD, installation guide, rack mounting brackets, rack mounting hardware
- Meets ENERGY STAR, RoHS, REACH, CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 certifications and standards
- Weight: 55 lbs.
- Comes with 3 years (without battery) and 2 years (with battery) warranty
