Highlights
View Details- Switch designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports, four SFP+ 1/10GbE ports; PHY-less dual-personality (RJ-45 or USB micro-B) serial console port
- Dimensions: 1.73"H x 17.42"W x 11.98"D

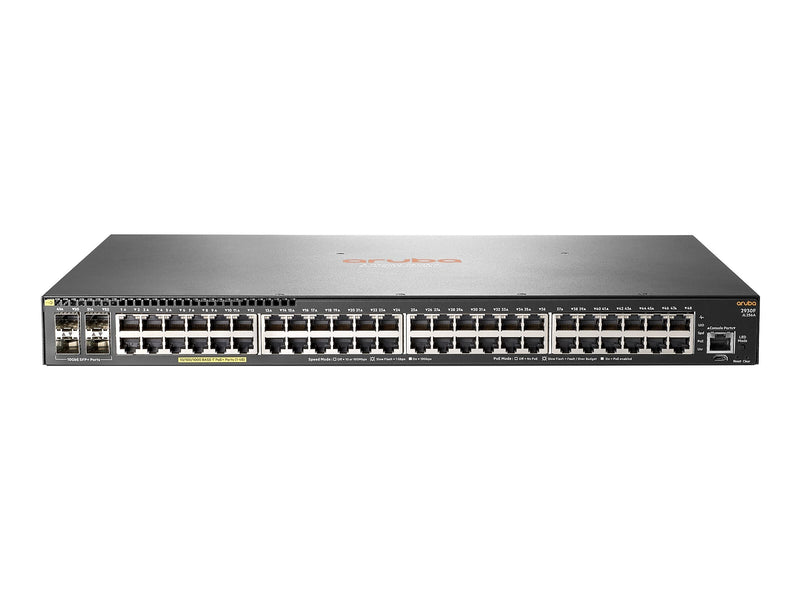

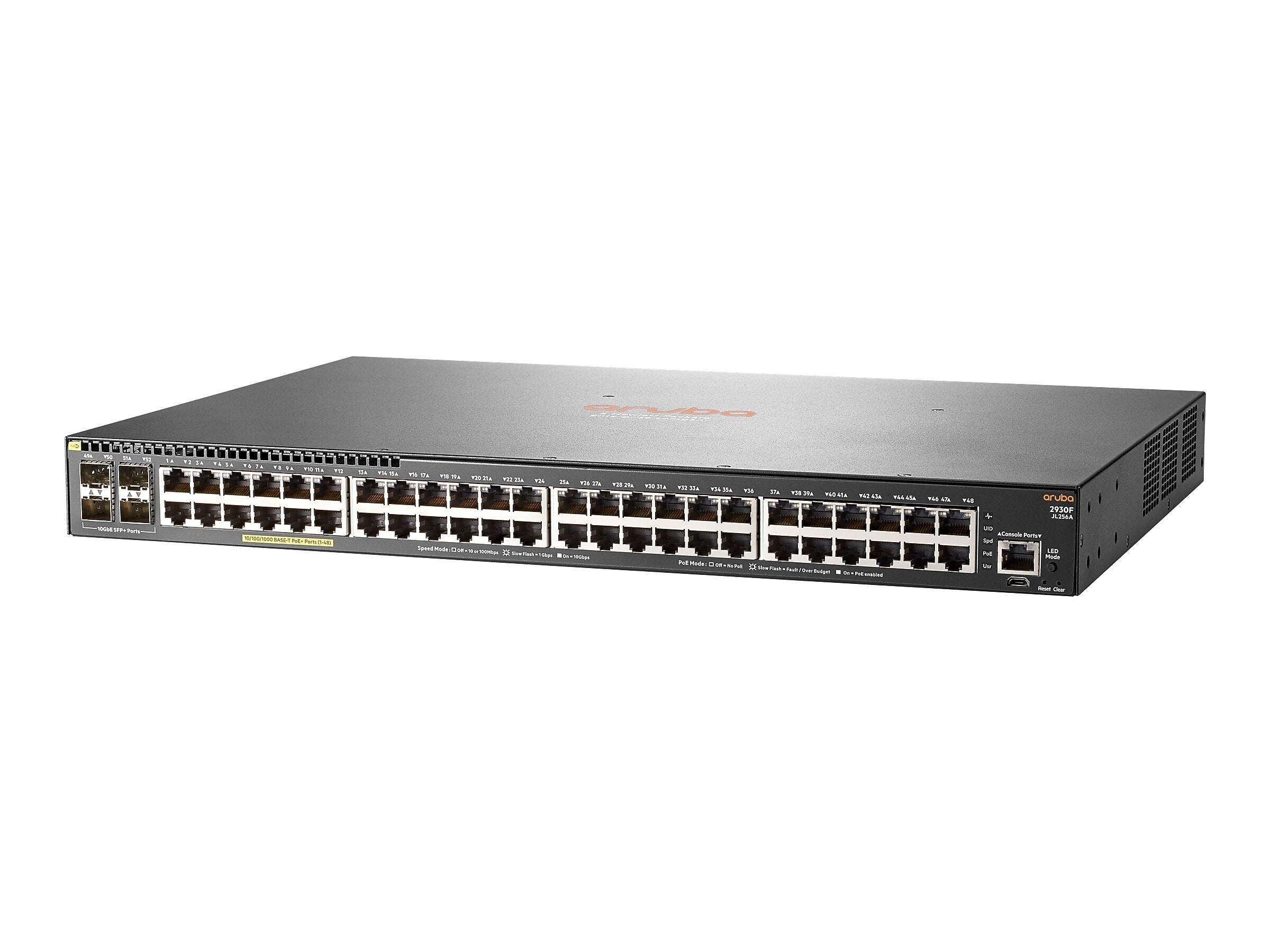

Aruba 2930F 48-Port Managed Switch, 10/100/1000 Mbps, Black (JL256A#ABA)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power, and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust basic Layer 3 feature set includes a lifetime manufacturer limited warranty.
- Switch designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports, four SFP+ 1/10GbE ports; PHY-less dual-personality (RJ-45 or USB micro-B) serial console port
- Dimensions: 1.73"H x 17.42"W x 11.98"D
- Rack-mountable
- Voltage: 100-127VAC/200-240VAC
- Lifetime manufacturer limited warranty
- Processor: ARM Cortex dual core 1016 MHz or ARM Cortex-A9 dual core 1016 MHz
- Memory: 1GB DDR3 SDRAM, 4GB eMMC
- Throughput: Up to 112 Mpps, switching capacity: 176 Gbps
- Form factor: 1U rack mountable, desktop
- Routing table size: 10000 entries (IPv4), 5000 entries (IPv6), MAC address table size: 32768 entries
- Management: Aruba AirWave network management, IMC, command line interface, graphical user interface, SNMP manager, Telnet
- Temperature: 0 to 45 deg C (operating), -40 to 70 deg C (storage)
- Meets UL 69050-1, CSA 22.2, EN 55022:2010/CISPR 22 Class A, FCC, VCCI Class A, ICES-003 Class A, CNS 13438 standards
- Weight: 9.83 lbs.
- Comes with lifetime limited warranty
| Manufacturer # | JL256A#ABA |
| Brand Name | Aruba |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 11.98 |
| Gaming | Non Gaming |
| Height in Inches | 1.73 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 48 |
| Snmp | No |
| Series or Collection | 2930F |
| Stackable | Stackable |
| Switch Form Factor | Rack Mountable |
| True Color | Black |
| Warranty Information | Lifetime |
| Width in Inches | 17.42 |
Details
The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power, and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust basic Layer 3 feature set includes a lifetime manufacturer limited warranty.
- Switch designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports, four SFP+ 1/10GbE ports; PHY-less dual-personality (RJ-45 or USB micro-B) serial console port
- Dimensions: 1.73"H x 17.42"W x 11.98"D
- Rack-mountable
- Voltage: 100-127VAC/200-240VAC
- Lifetime manufacturer limited warranty
- Processor: ARM Cortex dual core 1016 MHz or ARM Cortex-A9 dual core 1016 MHz
- Memory: 1GB DDR3 SDRAM, 4GB eMMC
- Throughput: Up to 112 Mpps, switching capacity: 176 Gbps
- Form factor: 1U rack mountable, desktop
- Routing table size: 10000 entries (IPv4), 5000 entries (IPv6), MAC address table size: 32768 entries
- Management: Aruba AirWave network management, IMC, command line interface, graphical user interface, SNMP manager, Telnet
- Temperature: 0 to 45 deg C (operating), -40 to 70 deg C (storage)
- Meets UL 69050-1, CSA 22.2, EN 55022:2010/CISPR 22 Class A, FCC, VCCI Class A, ICES-003 Class A, CNS 13438 standards
- Weight: 9.83 lbs.
- Comes with lifetime limited warranty
| Attribute Name | Attribute Value |
|---|
