Highlights
View Details- Stackable switch is perfect for enterprise network access, aggregation, core and data center top-of-rack deployments
- Features 48 x 10/100/1000BASE-T PoE+ and 4 x 1/10/25/50G SFP ports
- Management security restricts access to critical configuration commands, provides multiple privilege levels with password protection, and local/remote syslog capabilities allow logging of all access

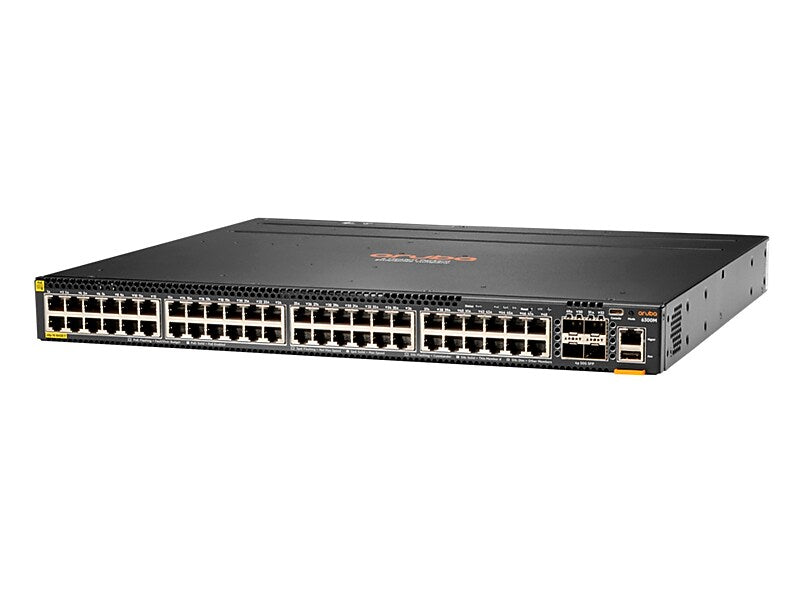

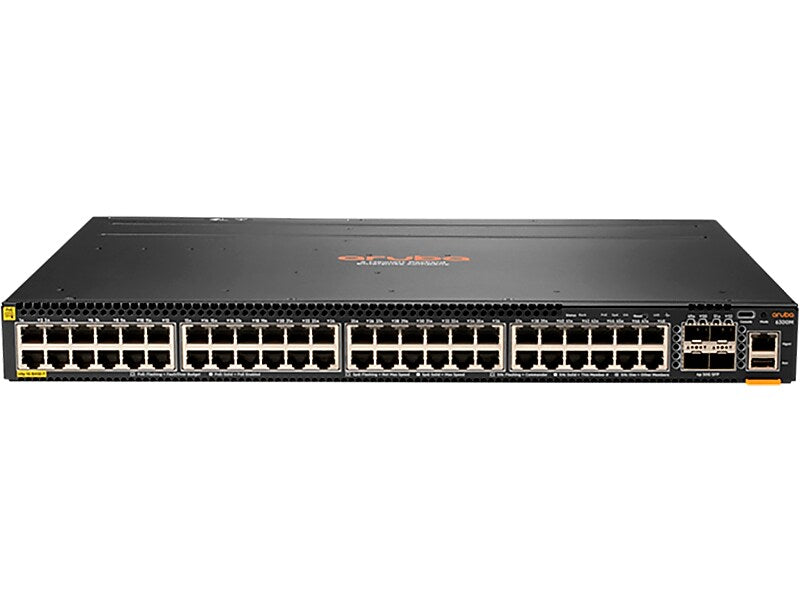

Aruba 6300M 48-Port Gigabit Ethernet Managed Switch, 10/100/1000 Mbps, Black (JL661A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Aruba 6300M switch series is a modern, flexible, and intelligent family of AOS-CX stackable switches perfect for access, aggregation and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba network analytics engine, the Aruba 6300M extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX mobile app verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow's unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management.
- Stackable switch is perfect for enterprise network access, aggregation, core and data center top-of-rack deployments
- Features 48 x 10/100/1000BASE-T PoE+ and 4 x 1/10/25/50G SFP ports
- Management security restricts access to critical configuration commands, provides multiple privilege levels with password protection, and local/remote syslog capabilities allow logging of all access
- Throughput: 369Mpps
- Dimensions: 1.73"H x 17.4"W x 15.2"D
- Maximum power consumption: 88-96W with JL086A, JL087A, JL670A PSU; switching capacity: 496Gbps
- Certifications and standards: Meets or exceeds UL, FCC standards
- Allows for stacking of up to 10 switches, providing scale and simplified management
- Stackable layer 3 switch with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
- Provides NetEdit support for automation, configuration, verification, and one-touch deployment with the mobile app
- Offers redundancy and PoE customization with hot-swappable power supplies and fans
- Memory and processor: 1.8GHz quad-core ARM Cortex-A72; 8GB DDR4 and 32GB eMMC with 8MB shared packet buffer memory
- PoE+ ports supporting up to 30W per port
- Switch has two fan tray slots and comes with one fan tray installed
- Lifetime manufacturer limited warranty
| Manufacturer # | JL661A |
| Brand Name | Aruba |
| Buffer Memory | 8MB |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 15.2 |
| Gaming | Non Gaming |
| Height in Inches | 1.73 |
| Jumbo Frame | Yes |
| Lacp | Yes |
| Layer | 3 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Module Support | SFP, SFP+ |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 48 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Power Supply | Internal |
| Power over Ethernet | Yes |
| Protocols | IEEE 802.3bt, 802.3af, 802.3at |
| Quality of Service | Yes |
| Snmp | v1, v2c, v3 |
| Series or Collection | 6300M |
| Stackable | Stackable |
| Switch Form Factor | Rack Mountable |
| True Color | Black |
| Vlan Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 11.37 |
| Width in Inches | 17.4 |
Details
The Aruba 6300M switch series is a modern, flexible, and intelligent family of AOS-CX stackable switches perfect for access, aggregation and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba network analytics engine, the Aruba 6300M extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX mobile app verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow's unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management.
- Stackable switch is perfect for enterprise network access, aggregation, core and data center top-of-rack deployments
- Features 48 x 10/100/1000BASE-T PoE+ and 4 x 1/10/25/50G SFP ports
- Management security restricts access to critical configuration commands, provides multiple privilege levels with password protection, and local/remote syslog capabilities allow logging of all access
- Throughput: 369Mpps
- Dimensions: 1.73"H x 17.4"W x 15.2"D
- Maximum power consumption: 88-96W with JL086A, JL087A, JL670A PSU; switching capacity: 496Gbps
- Certifications and standards: Meets or exceeds UL, FCC standards
- Allows for stacking of up to 10 switches, providing scale and simplified management
- Stackable layer 3 switch with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
- Provides NetEdit support for automation, configuration, verification, and one-touch deployment with the mobile app
- Offers redundancy and PoE customization with hot-swappable power supplies and fans
- Memory and processor: 1.8GHz quad-core ARM Cortex-A72; 8GB DDR4 and 32GB eMMC with 8MB shared packet buffer memory
- PoE+ ports supporting up to 30W per port
- Switch has two fan tray slots and comes with one fan tray installed
- Lifetime manufacturer limited warranty
