Highlights
View Details- By leveraging the 6GHz band, this tri-band access point delivers peak performance and far greater capacity than previous generations of Wi-Fi
- The three 4x4 MIMO radios of the platform deliver a combined peak data rate of up to 7.8Gbps
- Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance

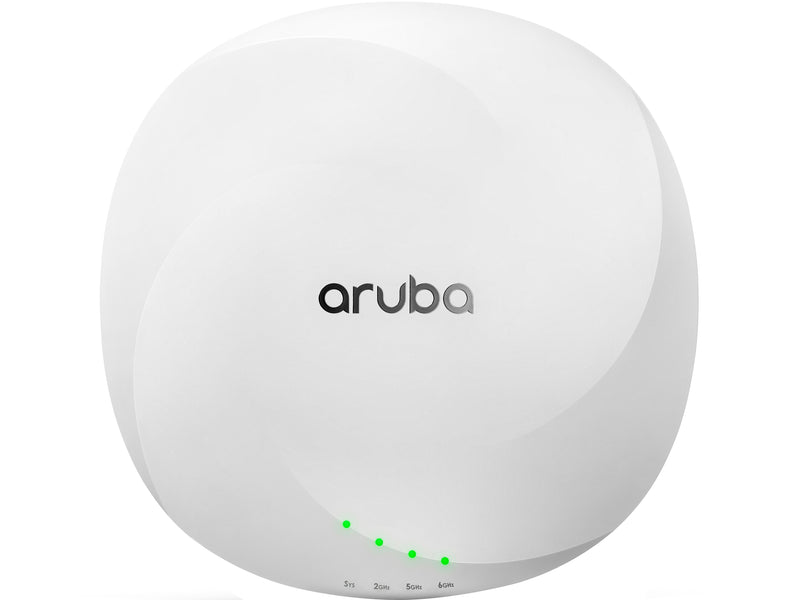

Aruba 650 Campus AX7800 Tri Band WiFi 6E Access Point, White (R7J39A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
- By leveraging the 6GHz band, this tri-band access point delivers peak performance and far greater capacity than previous generations of Wi-Fi
- The three 4x4 MIMO radios of the platform deliver a combined peak data rate of up to 7.8Gbps
- Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance
- 4 x 4 MIMO radios to deliver peak performance and increased capacity using MU-MIMO and OFDMA (uplink and downlink for both)
- High availability with configurable 5 Gbps dual Ethernet ports for hitless failover of ethernet and power
- Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- Includes ultra tri-band filtering, which enables enterprises to take advantage of the entire 5GHz and 6GHz bands without experiencing interference, while operating on any channel in either band concurrently
- Meets or exceeds UL2043 standard
- Up to seven 160MHz channels in 6GHz support low-latency, bandwidth-hungry applications like high‑definition video and augmented reality/virtual reality applications
- Based on the 802.11ax standard, which means that all its efficiency and security enhancements are also available on the 6GHz band
- Lifetime manufacturer limited warranty
| Manufacturer # | R7J39A |
| Brand Name | Aruba |
| Connector, Port or Interface Type(s) | (1) Ethernet wired network ports (RJ-45), (1) DC power, USB 2.0 host, (1) serial console (proprietary, micro-B USB physical jack) |
| Data Transfer Rate | 7.8 Gbps |
| Data Transfer Rate (gbps) | 7.8 |
| Data Transfer Rate (mbps) | 7800 |
| Depth in Inches | 10.24 |
| Encryption Type | SAE, OWE |
| Frequency (wireless) | Tri Band 2.4/5/60GHz |
| Gaming | Non Gaming |
| Height in Inches | 2.36 |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Power Source | DC power (12VDC), PoE |
| Power over Ethernet | Yes |
| Series or Collection | 650 Campus |
| True Color | White |
| Warranty Information | Limited Lifetime Warranty |
| Wifi Standard | WiFi 6E |
| Width in Inches | 10.24 |
| Wireless Bands | Tri Band |
| Wireless Connectivity | 802.11ax |
| Wireless Standard | AX |
Details
By leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled – so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
- By leveraging the 6GHz band, this tri-band access point delivers peak performance and far greater capacity than previous generations of Wi-Fi
- The three 4x4 MIMO radios of the platform deliver a combined peak data rate of up to 7.8Gbps
- Wi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance
- 4 x 4 MIMO radios to deliver peak performance and increased capacity using MU-MIMO and OFDMA (uplink and downlink for both)
- High availability with configurable 5 Gbps dual Ethernet ports for hitless failover of ethernet and power
- Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- Includes ultra tri-band filtering, which enables enterprises to take advantage of the entire 5GHz and 6GHz bands without experiencing interference, while operating on any channel in either band concurrently
- Meets or exceeds UL2043 standard
- Up to seven 160MHz channels in 6GHz support low-latency, bandwidth-hungry applications like high‑definition video and augmented reality/virtual reality applications
- Based on the 802.11ax standard, which means that all its efficiency and security enhancements are also available on the 6GHz band
- Lifetime manufacturer limited warranty
