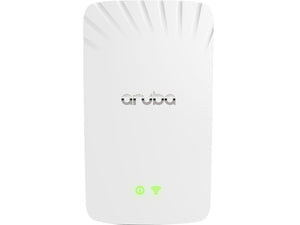

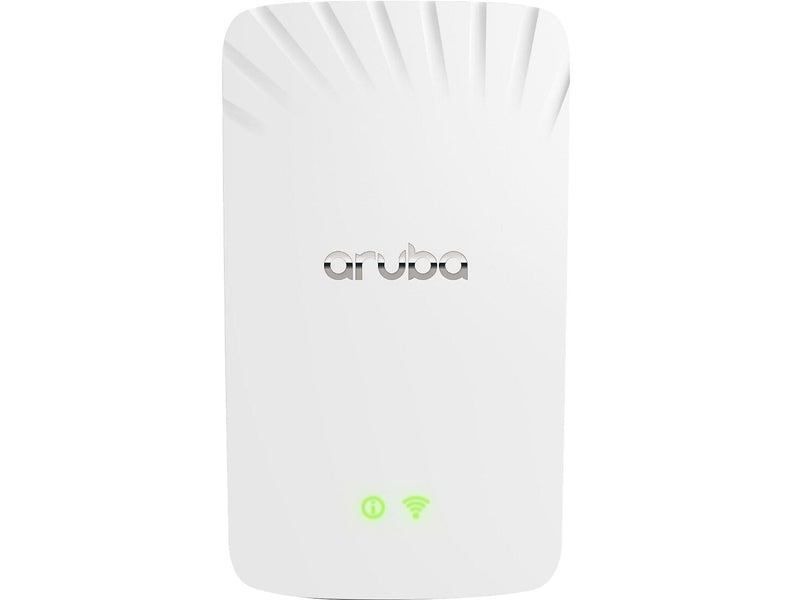

Aruba AP-503HR AX1500 Dual Band WiFi 6 Access Point, White (R7G97A)

These economical Wi-Fi 6 access points provide high‑performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike.

• Wireless dual-band (2.4GHz, 5GHz) hospitality access point for hospitality, branch, and teleworker deployments
• Compliant with the Wi-Fi 6 standard with up to 1.5Gbps of maximum wireless throughput
• Can be powered with 802.3af POE (class 3 or higher) on port E0
• Includes an integrated Bluetooth 5.0 Low Energy and Zigbee (802.15.4) radio (2.4GHz) to simplify deploying and managing IoT-based location services, asset-tracking services, security solutions, and IoT sensors
• Features 1 x auto-sensing 10/100/1000BASE-T and MDI/MDX RJ45 Ethernet uplink port with 802.3az EEE and 802.3af POE (class 3) support, 2 x auto-sensing 10/100/1000BASE-T and MDI/MDX RJ45 Ethernet ports
• Bundle includes: AP-503H, desk mount, power adapter, NA power cord
• AP supports direct DC power and Power over Ethernet
• Supported frequency bands: 2.4-2.48GHz ISM; 5.15-5.25GHz U-NII-1; 5.25-5.35GHz U-NII-2A; 5.47-5.73GHz U-NII-2C; 5.73-5.85GHz U-NII-3/ISM; 5.85-5.9GHz U-NII-4
• Features orthogonal frequency-division multiple access (OFDMA) that handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type for enhanced multiuser efficiency
• Patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP
• Advanced Cellular Coexistence uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment
• Target Wake Time establishes a schedule for when clients need to communicate with an AP to improve client power savings and reduce airtime contention with other clients
• To simplify policy enforcement, it uses Aruba's Policy Enforcement Firewall (PEF) to encapsulate all traffic from the AP to the Mobility Controller (or gateway) for end-to-end encryption and inspection
• Includes security components to help protect user authentication and wireless traffic such as WPA3 and Enhanced Open, WPA2-MPSK, VPN tunnels, Trusted Platform Module, and more
• Provides connectivity for a maximum of 256 associated clients per radio (512 in total)
• Operates as a stand-alone access point or with a gateway for greater scalability, security, and manageability
• For hybrid environments, EdgeConnect Microbranch extends the WAN to the small office/home office to deliver a consistent employee experience no matter where users are located
• Lifetime manufacturer limited warranty
