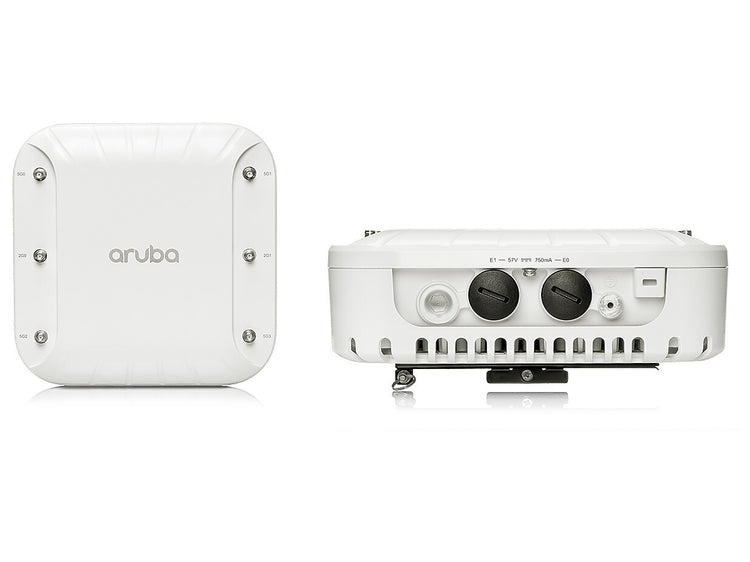

Aruba AP-518 AX3000 Dual Band WiFi 6 Access Point, White (R4H03A)

The hardened, Aruba 518 series access point delivers high Wi-Fi 6 performance in harsh, weather-protected environments such as warehouses, industrial freezers or enclosures in extreme environments such as stadiums. It delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and integrated Bluetooth to enable Aruba location services. Purpose-built to survive in the harshest outdoor environments, 518 series APs withstand exposure to extreme high and low temperatures, persistent (non-precipitant) moisture, and are sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection. Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 3Gbps (HE80/HE40) the 518 series delivers the speed and reliability needed for any environment.

• Hardened access point delivers high-performance Wi-Fi 6 in harsh, weather-protected environments such as warehouses, industrial freezers, or enclosures in extreme environments such as stadiums
• With the maximum aggregate on-air data rate of 3Gbps (HE80/HE40), this access point delivers the speed and reliability needed for any environment
• AP can be configured to enable or disable capabilities based on available PoE+ power, perfect when wired switches have exhausted their power budget
• Delivers 4x4:4SS MU-MIMO capability; Aruba's advanced ClientMatch and integrated Bluetooth enable Aruba location services
• Features 1 x HPE SmartRate port (RJ45), 1 x 10/100/1000BASE-T (RJ45), 1 x USB Type-C console interface
• Access point supports Power over Ethernet (PoE+), 802.3at compliant; worst-case access point power consumption: 25.6W (power sources sold separately)
• Dynamic frequency selection (DFS) maximizes the use of available RF spectrum
• Meets or exceeds the FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 60950, EN 60601-1-1, EN60601-1-2 standards
• Link aggregation (LACP) support between both network ports for redundancy and increased capacity
• Software-configurable dual radios support 5GHz (Radio 0) and 2.4GHz (Radio 1)

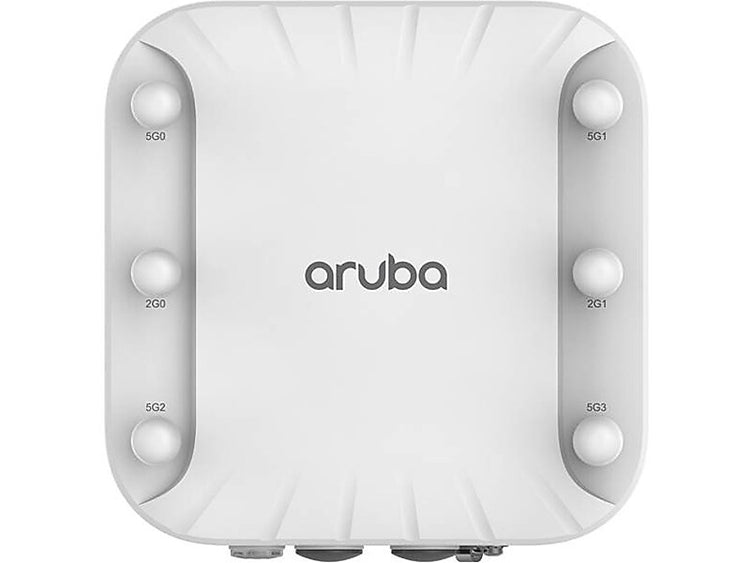

• 5GHz: four RP-SMA connectors for external antenna operation; 2.4GHz: two RP-SMA connectors for external antenna operation
• Supported modulation types: 802.11b - BPSK, QPSK, CCK; 802.11a/g/n - BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension); 802.11ac - BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension); 802.11ax - BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• Supported radio technologies: 802.11b - direct-sequence spread spectrum (DSSS); 802.11a/g/n/ac - orthogonal frequency-division multiplexing (OFDM);­ 802.11ax - orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
• Each access point provides connectivity for a maximum of 512 associated clients per radio (1024 total) and up to 16 BSSIDs per radio
• Aruba's patented AI-powered ClientMatch technology ensures that all clients are attached to their best serving access point; session metrics, network metrics, applications, and client type are used to identify and maintain best connection
• Minimum operating system software versions: ArubaOS and Aruba InstantOS 8.7.0.0
• Dimensions: 8.5"H x 8.5"W x 2.5"D
• Regulatory domain: United States of America
• Lifetime manufacturer limited warranty
