Highlights
View Details- Wireless dual-band (2.4GHz, 5GHz) campus access point for high-density mobile and IoT deployments
- Features Wi-Fi 6 standard with a combined peak datarate of up to 2.97Gbps
- Can be powered with 802.3at/bt POE (class 4 or higher) on port E0 and/or E1

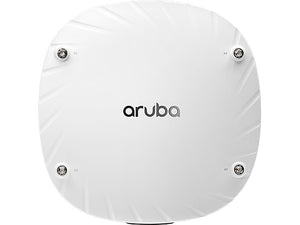

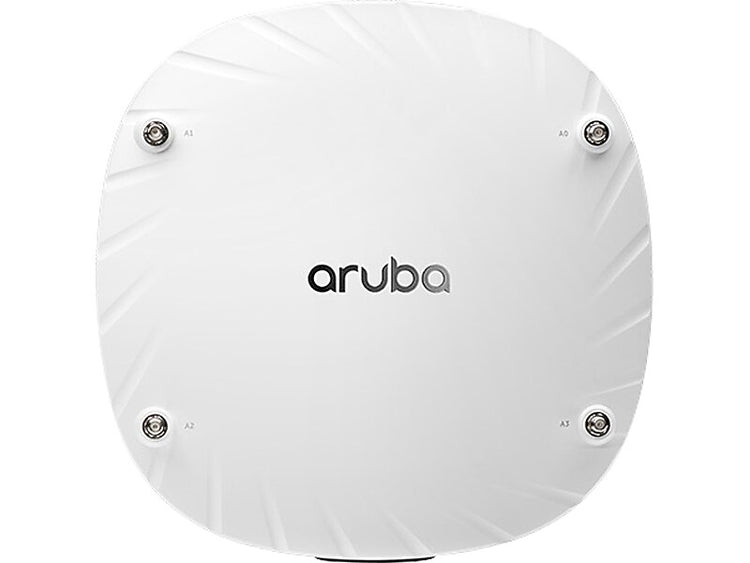

Aruba AP-534 AX2970 Dual Band WiFi 6 Access Point, White (JZ332A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a maximum aggregate data rate of 3.55 Gbps (HE80/HE40), the Aruba 530 Series deliver the speed and reliability needed for any enterprise.
- Wireless dual-band (2.4GHz, 5GHz) campus access point for high-density mobile and IoT deployments
- Features Wi-Fi 6 standard with a combined peak datarate of up to 2.97Gbps
- Can be powered with 802.3at/bt POE (class 4 or higher) on port E0 and/or E1
- Includes an integrated Bluetooth 5.0 Low Energy and Zigbee (802.15.4) radio (2.4GHz) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors
- Features 2 x 100/1000/2500/5000BASE-T RJ-45 HPE SmartRate ports, USB 2.0 Type-A host interface
- AP supports direct DC power and Power over Ethernet
- Supported frequency bands: 2.400 to 2.4835GHz ISM; 5.150 to 5.250GHz U-NII-1; 5.250 to 5.350GHz U-NII-2A; 5.470 to 5.725GHz U-NII-2C; 5.725 to 5.850GHz U-NII-3/ISM; 5.850 to 5.895GHz U-NII-4
- Four (female) RP-SMA connectors for external dual band antennas
- Target Wake Time establishes a schedule for when clients need to communicate with an AP to improve client power savings and reduce airtime contention with other clients
- Includes components of Aruba's 360 Secure Fabric to help protect user authentication and wireless traffic
- Can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator
- For enhanced device assurance, have an installed Trusted Platform Module (TPM) for secure storage of credentials and keys, and boot code
- To simplify policy enforcement it uses Aruba's policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection
- Provides connectivity for a maximum of 1024 associated clients per radio (2048 in total)
- Able to operate in either controllerless (Instant) or controller-based mode
- Lifetime manufacturer limited warranty
| Manufacturer # | JZ332A |
| Antenna | Four (female) RP-SMA connectors for external dual band antennas |
| Brand Name | Aruba |
| Connector, Port or Interface Type(s) | 2 x 100/1000/2500/5000BASE-T RJ-45 HPE SmartRate ports, USB 2.0 Type-A host interface, Bluetooth 5.0 Low Energy and Zigbee (802.15.4) radio (2.4GHz) |
| Data Transfer Rate | Up to 2.97Gbps |
| Data Transfer Rate (gbps) | 2.97 |
| Data Transfer Rate (mbps) | 2970 |
| Encryption Type | WPA3, Enhanced Open |
| Frequencies | 2.4GHz and 5GHz |
| Frequency (wireless) | Dual Band 2.4/5GHz |
| Gaming | Non Gaming |
| Max. Data Transfer Rate (mbps) | 2500 - 3000 |
| Power Source | DC power (48Vdc), PoE |
| Power over Ethernet | Yes |
| Series or Collection | AP-534 |
| True Color | White |
| Warranty Information | Limited Lifetime Warranty |
| Wifi Standard | WiFi 6 |
| Wireless Bands | Dual Band |
| Wireless Connectivity | 802.11 a/b/g/n/ac/ax |
| Wireless Standard | AX |
Details
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a maximum aggregate data rate of 3.55 Gbps (HE80/HE40), the Aruba 530 Series deliver the speed and reliability needed for any enterprise.
- Wireless dual-band (2.4GHz, 5GHz) campus access point for high-density mobile and IoT deployments
- Features Wi-Fi 6 standard with a combined peak datarate of up to 2.97Gbps
- Can be powered with 802.3at/bt POE (class 4 or higher) on port E0 and/or E1
- Includes an integrated Bluetooth 5.0 Low Energy and Zigbee (802.15.4) radio (2.4GHz) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors
- Features 2 x 100/1000/2500/5000BASE-T RJ-45 HPE SmartRate ports, USB 2.0 Type-A host interface
- AP supports direct DC power and Power over Ethernet
- Supported frequency bands: 2.400 to 2.4835GHz ISM; 5.150 to 5.250GHz U-NII-1; 5.250 to 5.350GHz U-NII-2A; 5.470 to 5.725GHz U-NII-2C; 5.725 to 5.850GHz U-NII-3/ISM; 5.850 to 5.895GHz U-NII-4
- Four (female) RP-SMA connectors for external dual band antennas
- Target Wake Time establishes a schedule for when clients need to communicate with an AP to improve client power savings and reduce airtime contention with other clients
- Includes components of Aruba's 360 Secure Fabric to help protect user authentication and wireless traffic
- Can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator
- For enhanced device assurance, have an installed Trusted Platform Module (TPM) for secure storage of credentials and keys, and boot code
- To simplify policy enforcement it uses Aruba's policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection
- Provides connectivity for a maximum of 1024 associated clients per radio (2048 in total)
- Able to operate in either controllerless (Instant) or controller-based mode
- Lifetime manufacturer limited warranty
| Attribute Name | Attribute Value |
|---|
