Highlights
View Details- Wireless dual-band (2.4GHz, 5GHz) outdoor access point designed for the highest levels of performance and greater deployment flexibility
- Features Wi-Fi 6 standard with a combined peak data rate of up to 4.8Gbps
- Include an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors

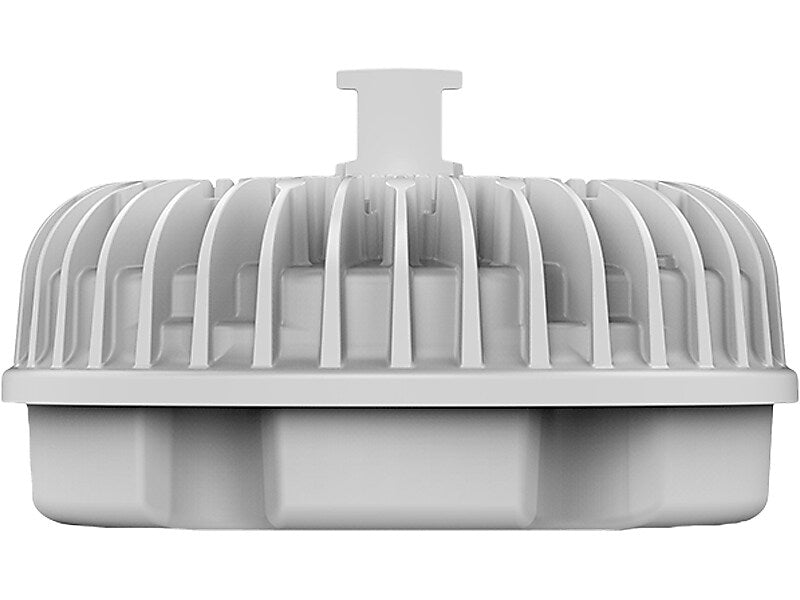

Aruba AP-577 AX 4.8Gbps Dual Band PoE WiFi 6 Access Point, White (R4H38A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Weatherproof and temperature hardened, Aruba 570 Series access points deliver the highest Wi-Fi 6 performance in outdoor and environmentally challenging locations. The high-performance and high power 570 Series APs deliver maximum capacity and range. It delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and integrated Bluetooth to enable Aruba location services.
- Wireless dual-band (2.4GHz, 5GHz) outdoor access point designed for the highest levels of performance and greater deployment flexibility
- Features Wi-Fi 6 standard with a combined peak data rate of up to 4.8Gbps
- Include an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors
- Features 1 x 1000Base-T - RJ-45, 1 x console - USB-C, 1 x HPE Smart Rate - RJ-45
- AP supports Power over Ethernet (on ports E0 and/or E1)
- Supported frequency bands: 2.400 to 2.4835 GHz (ISM); 5.150 to 5.250 GHz (U-NII-1); 5.250 to 5.350 GHz (U-NII-2A); 5.470 to 5.725 GHz (U-NII-2C); 5.725 to 5.850 GHz (U-NII-3/ISM); 5.850 to 5.875 GHz (U-NII-4)
- TAA-compliant
- Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU-MIMO), and cellular co-location
- The ACC feature uses built in filtering to automatically minimize the impact of interference of high power cellular base stations, in building distributed antenna systems as well as small cell and femtocell equipment
- With the introduction of WPA3 and Enhanced Open, a Wi-Fi 6 certified client will never send unencrypted traffic over the air
- AP provides connectivity for a maximum of 512 associated clients per radio (1024 in total)
- Available management choices include Aruba Central (cloud-based) or Aruba AirWave (multivendor, on premises) solutions
- Withstands harsh outdoor weather conditions, providing fast speed, high density, and reliable connectivity outdoors in large open areas, such as stadiums and parking lots
- Lifetime manufacturer limited warranty
| Manufacturer # | R4H38A |
| Antenna | Integrated omnidirectional antennas with peak gain of 8.4dBi |
| Brand Name | Aruba |
| Connector, Port or Interface Type(s) | 1 x 1000Base-T - RJ-45, 1 x console - USB-C, 1 x HPE Smart Rate - RJ-45 |
| Data Transfer Rate | Up to 4.8Gbps |
| Data Transfer Rate (gbps) | 4800 |
| Data Transfer Rate (mbps) | 4.8 |
| Depth in Inches | 8.7 |
| Encryption Type | WPA3, Enhanced Open |
| Frequencies | 2.4GHz and 5Ghz |
| Frequency (wireless) | Dual Band 2.4/5GHz |
| Gaming | Non Gaming |
| Height in Inches | 5.6 |
| Max. Data Transfer Rate (mbps) | More than 3000 |
| Power Source | PoE |
| Power over Ethernet | Yes |
| Series or Collection | AP-577 |
| True Color | White |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 4.6 |
| Wifi Standard | WiFi 6 |
| Width in Inches | 9 |
| Wireless Bands | Dual Band |
| Wireless Connectivity | 802.11ax |
| Wireless Standard | AX |
Details
Weatherproof and temperature hardened, Aruba 570 Series access points deliver the highest Wi-Fi 6 performance in outdoor and environmentally challenging locations. The high-performance and high power 570 Series APs deliver maximum capacity and range. It delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and integrated Bluetooth to enable Aruba location services.
- Wireless dual-band (2.4GHz, 5GHz) outdoor access point designed for the highest levels of performance and greater deployment flexibility
- Features Wi-Fi 6 standard with a combined peak data rate of up to 4.8Gbps
- Include an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors
- Features 1 x 1000Base-T - RJ-45, 1 x console - USB-C, 1 x HPE Smart Rate - RJ-45
- AP supports Power over Ethernet (on ports E0 and/or E1)
- Supported frequency bands: 2.400 to 2.4835 GHz (ISM); 5.150 to 5.250 GHz (U-NII-1); 5.250 to 5.350 GHz (U-NII-2A); 5.470 to 5.725 GHz (U-NII-2C); 5.725 to 5.850 GHz (U-NII-3/ISM); 5.850 to 5.875 GHz (U-NII-4)
- TAA-compliant
- Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU-MIMO), and cellular co-location
- The ACC feature uses built in filtering to automatically minimize the impact of interference of high power cellular base stations, in building distributed antenna systems as well as small cell and femtocell equipment
- With the introduction of WPA3 and Enhanced Open, a Wi-Fi 6 certified client will never send unencrypted traffic over the air
- AP provides connectivity for a maximum of 512 associated clients per radio (1024 in total)
- Available management choices include Aruba Central (cloud-based) or Aruba AirWave (multivendor, on premises) solutions
- Withstands harsh outdoor weather conditions, providing fast speed, high density, and reliable connectivity outdoors in large open areas, such as stadiums and parking lots
- Lifetime manufacturer limited warranty
