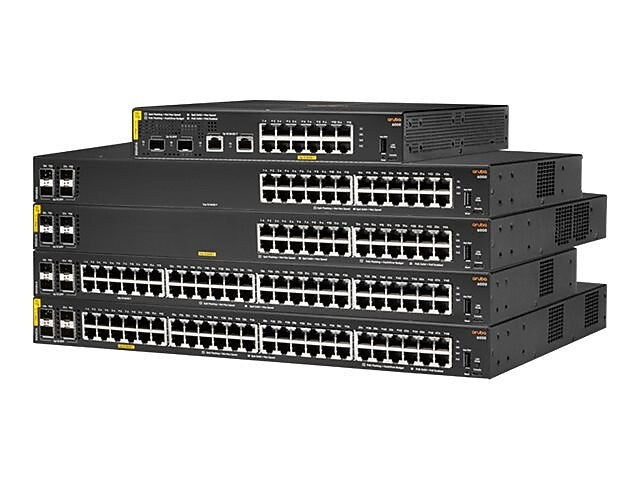

Aruba CX 6000 24-Port Gigabit Ethernet Managed Switch, 10/100/1000 Mbps, Black (R8N87A#ABA)

The Aruba CX 6000 Switch series is modern family of entry level access switches perfect for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is perfect for use in quiet, small work spaces. The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing

• Optimized for reliable, simple and secure access, this managed switch provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications
• Contains 24 10/100/1000BASE-T ports and four 1Gb SFP ports; supports PoE standards: IEEE 802.3af, 802.3at
• Based on AOSCX, a modern database-driven operating system that is built on a modular Linux architecture; secure management access delivers secure encryption of all access methods
• Up to 104Gbps in non-blocking bandwidth and up to 77.3Mbps for forwarding
• Dimensions: 1.73"H x 17.4"W x 12"D
• Power consumption (230 VAC): idle: 22.9W; max. power (w/o PoE): 32.7W; max. power (w/ PoE): 455W
• Certifications and standards: Meets or exceeds UL, EN, CSA, VCCI, IEC standards
• Mounts in an EIA-standard 19" telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
• Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
• Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
• Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
• Simple deployment with Zero Touch Provisioning
• Simplifies adding, moving, and changing with colorless ports
• Selectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network applications
• Auto-MDIX provides automatic adjustments for straight-through or crossover cables on all 10/100/1000 ports
• Unsupported transceiver mode (UTM) allows inserting and enabling all unsupported 1Gb transceivers and cables
• VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously
• Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9198 bytes
• Lifetime manufacturer limited warranty
