Highlights
View Details- 48-port Gigabit Ethernet managed switch perfect for branch offices, midsize businesses, and small enterprises
- Features 48 x 10/100/1000BASE-T PoE ports with up to 370W power budget, 4 x 1G SFP uplink ports, 1 x USB Type-C console port, and 1 x USB Type-A host port
- Switching capacity: up to 104Gbps

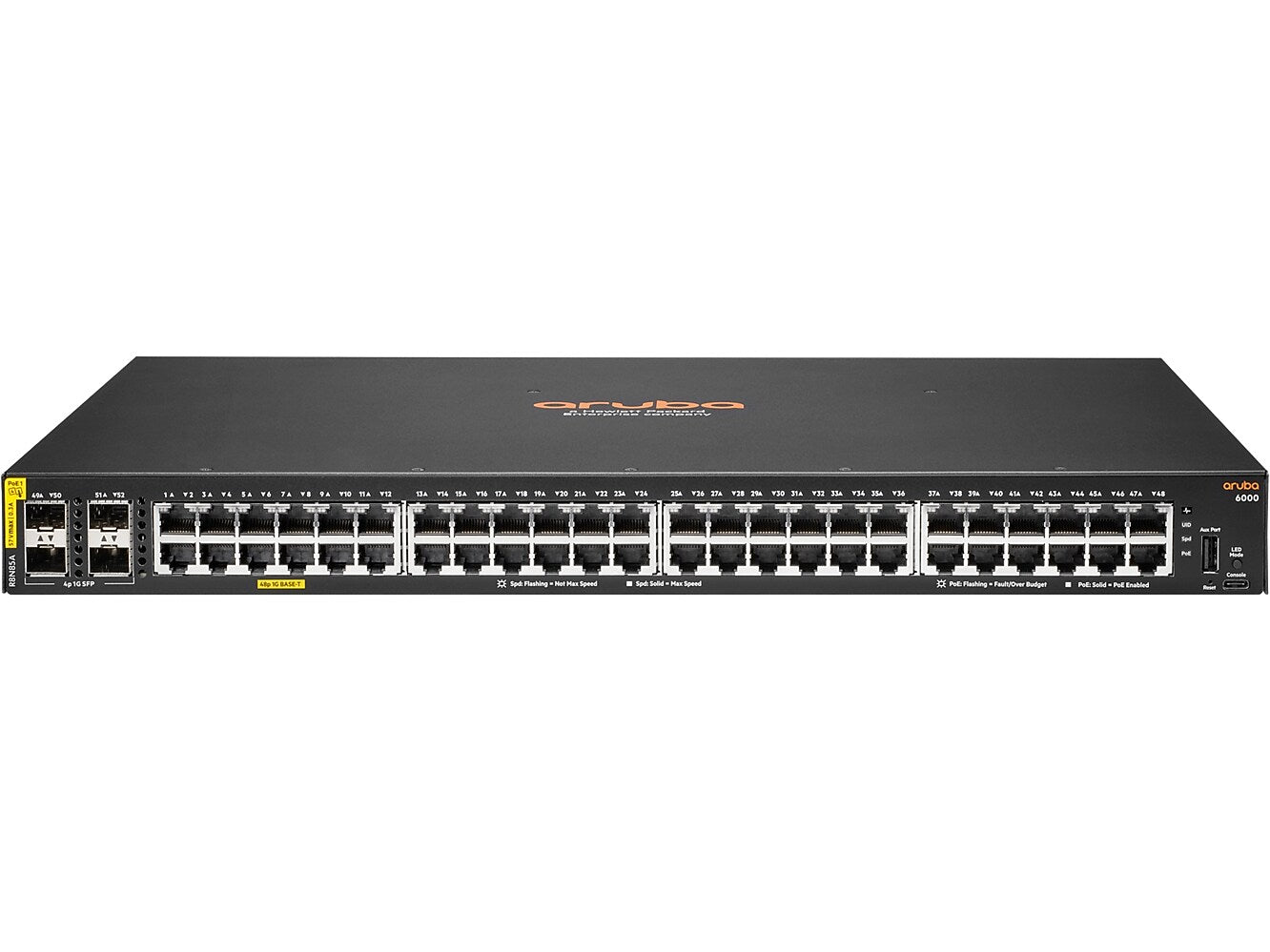

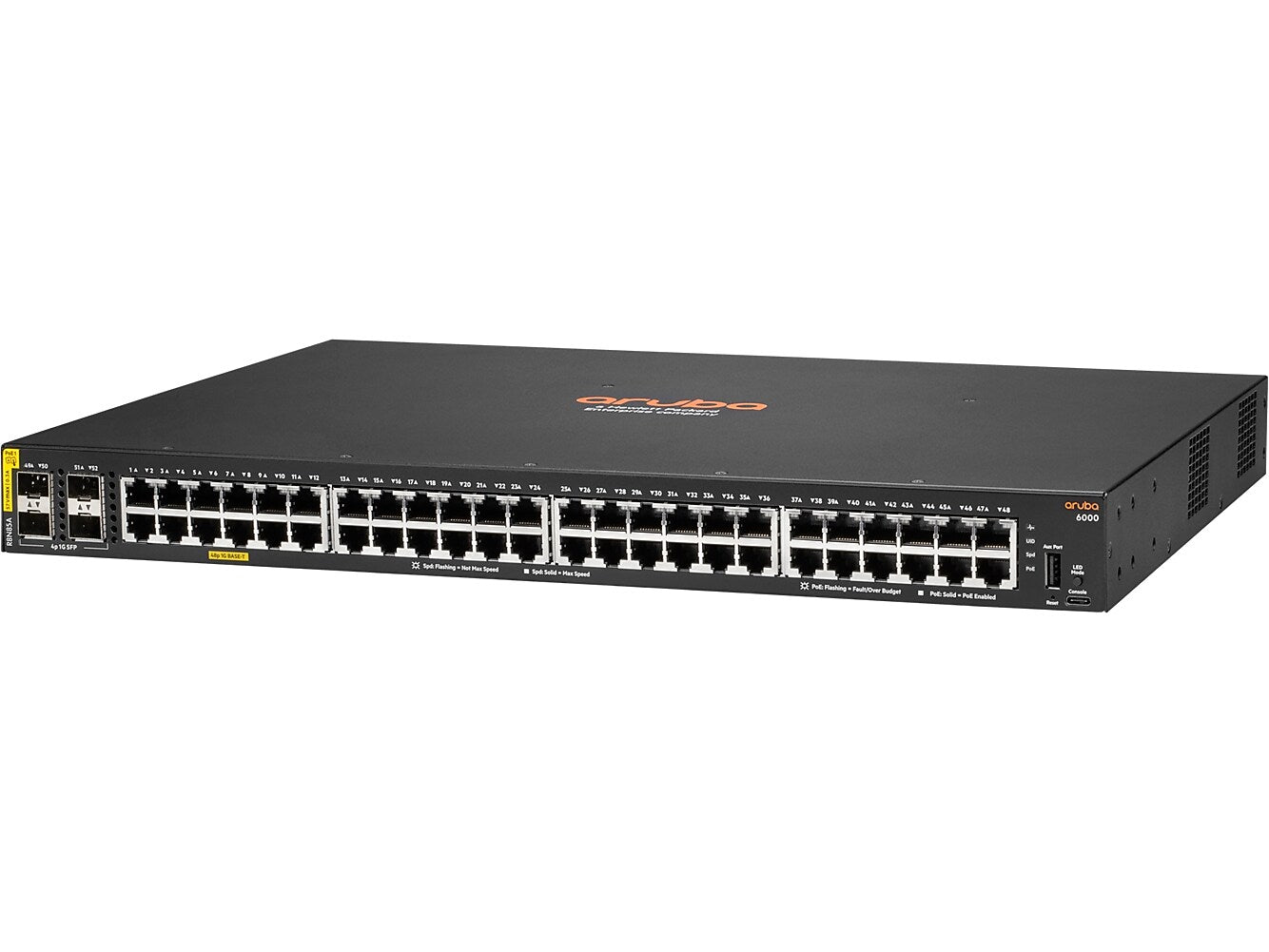

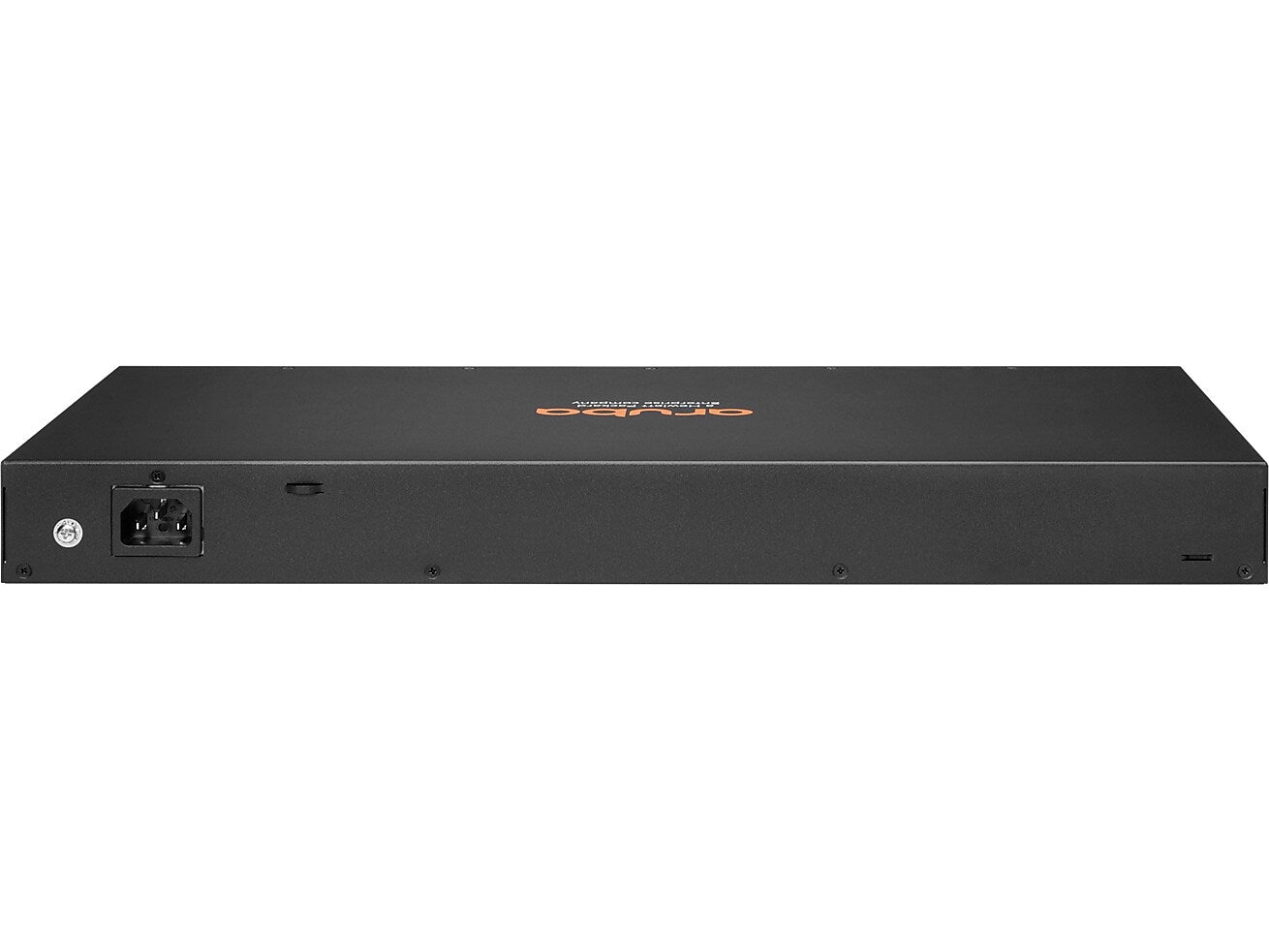

Aruba CX 6000 48-Port Gigabit Ethernet Managed Switch, Black (R8N85A#ABA)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Aruba CX 6000 switch series is modern family of entry level access switches perfect for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. his fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs.
- 48-port Gigabit Ethernet managed switch perfect for branch offices, midsize businesses, and small enterprises
- Features 48 x 10/100/1000BASE-T PoE ports with up to 370W power budget, 4 x 1G SFP uplink ports, 1 x USB Type-C console port, and 1 x USB Type-A host port
- Switching capacity: up to 104Gbps
- Comes in a 1U rack-mountable form factor
- SNMPv1/v2c/v3 support provides read capability of industry-standard management information base (MIB) and private extensions
- Quality of service features include: strict priority (SP) queuing; traffic prioritization (IEEE 802.1p) for real-time classification; rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums; large buffers for graceful congestion management; class of service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP type of service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Supports a choice of management interfaces: intuitive, easy-to-use switch Web GUI, cloud-based Aruba Central, built-in programmable REST API interface, and more
- Throughput capacity: up to 77.3Mpps
- Maximum power consumption: 45W or 480W with max PoE power
- Features a dual-core ARM Cortex A9 1016MHz CPU, 4GB DDR3 SDRAM, and 16GB eMMC memory
- Lifetime manufacturer limited warranty
| Manufacturer # | R8N85A#ABA |
| Amperage (amps) | 4.9 |
| Brand Name | Aruba |
| Data Rate Performances | 1 Gbps |
| Data Transfer Rate (gbps) | 104 |
| Depth in Inches | 12 |
| Gaming | Non Gaming |
| Gigabit Ethernet Uplink | 4 x 1G SFP ports |
| Height in Inches | 1.74 |
| Input Voltage | 100-127VAC |
| Jumbo Frame | 9KB |
| Lacp | Yes |
| Layer | 2 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Module Support | No |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 48 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Power Supply | Internal (fixed) PSU |
| Power over Ethernet | Yes |
| Quality of Service | Yes |
| Snmp | v1, v3, v2c |
| Series or Collection | CX 6000 |
| Stackable | Non-Stackable |
| Switch Form Factor | Rack Mountable |
| True Color | Black |
| Vlan Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 11.07 |
| Width in Inches | 17.4 |
Details
The Aruba CX 6000 switch series is modern family of entry level access switches perfect for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. his fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs.
- 48-port Gigabit Ethernet managed switch perfect for branch offices, midsize businesses, and small enterprises
- Features 48 x 10/100/1000BASE-T PoE ports with up to 370W power budget, 4 x 1G SFP uplink ports, 1 x USB Type-C console port, and 1 x USB Type-A host port
- Switching capacity: up to 104Gbps
- Comes in a 1U rack-mountable form factor
- SNMPv1/v2c/v3 support provides read capability of industry-standard management information base (MIB) and private extensions
- Quality of service features include: strict priority (SP) queuing; traffic prioritization (IEEE 802.1p) for real-time classification; rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums; large buffers for graceful congestion management; class of service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP type of service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Supports a choice of management interfaces: intuitive, easy-to-use switch Web GUI, cloud-based Aruba Central, built-in programmable REST API interface, and more
- Throughput capacity: up to 77.3Mpps
- Maximum power consumption: 45W or 480W with max PoE power
- Features a dual-core ARM Cortex A9 1016MHz CPU, 4GB DDR3 SDRAM, and 16GB eMMC memory
- Lifetime manufacturer limited warranty
