Highlights
View Details- Affordable, easy-to-deploy, smart-managed Gigabit switch for small businesses looking for cost-effective ways to keep up with evolving network demands
- This model has 24 x RJ45 10/100/1000 ports and 2 x SFP 1GbE ports
- Use the Instant On mobile app, cloud-based web portal, or the local web GU to quickly setup, monitor, and manage the device

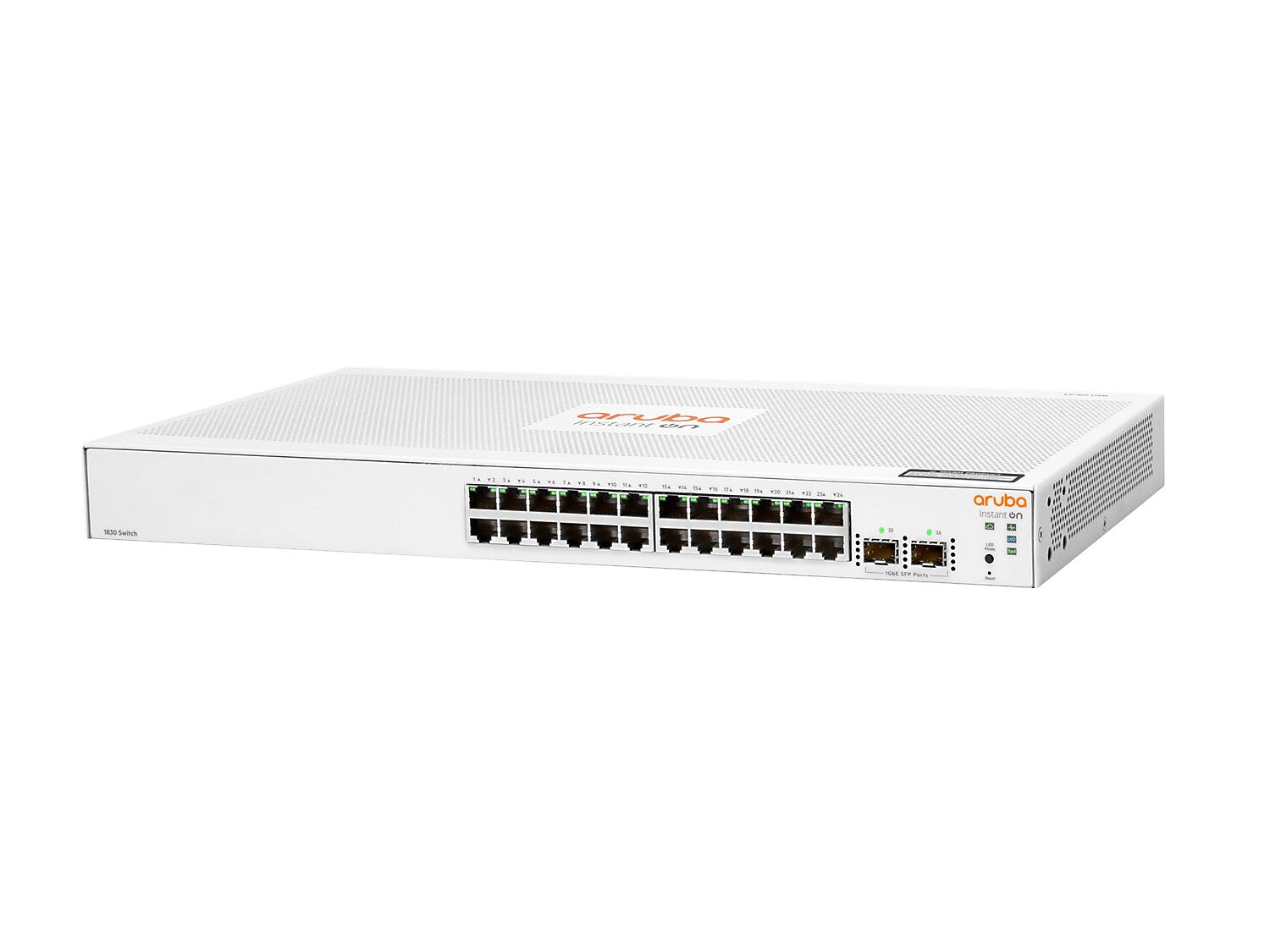

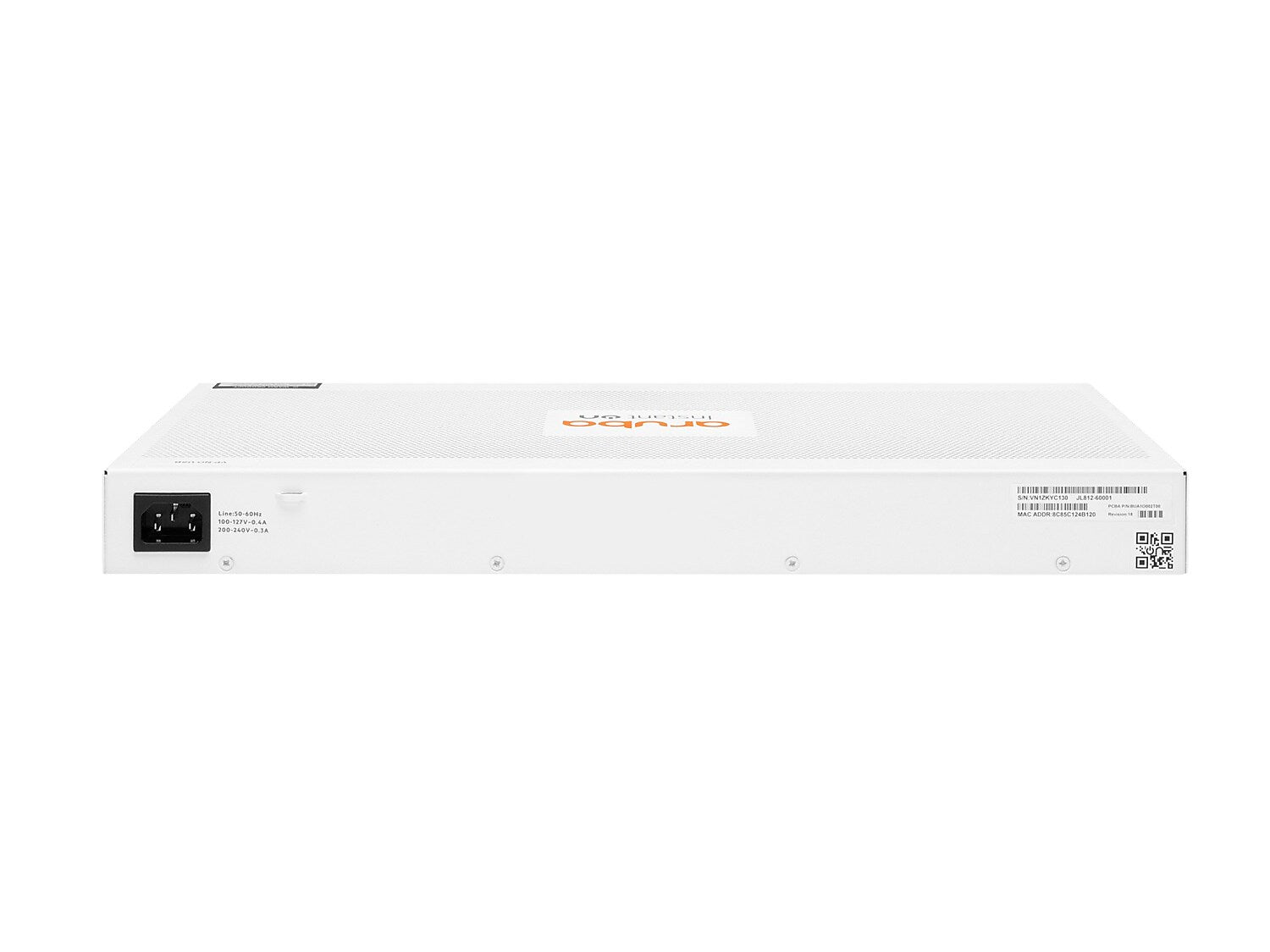

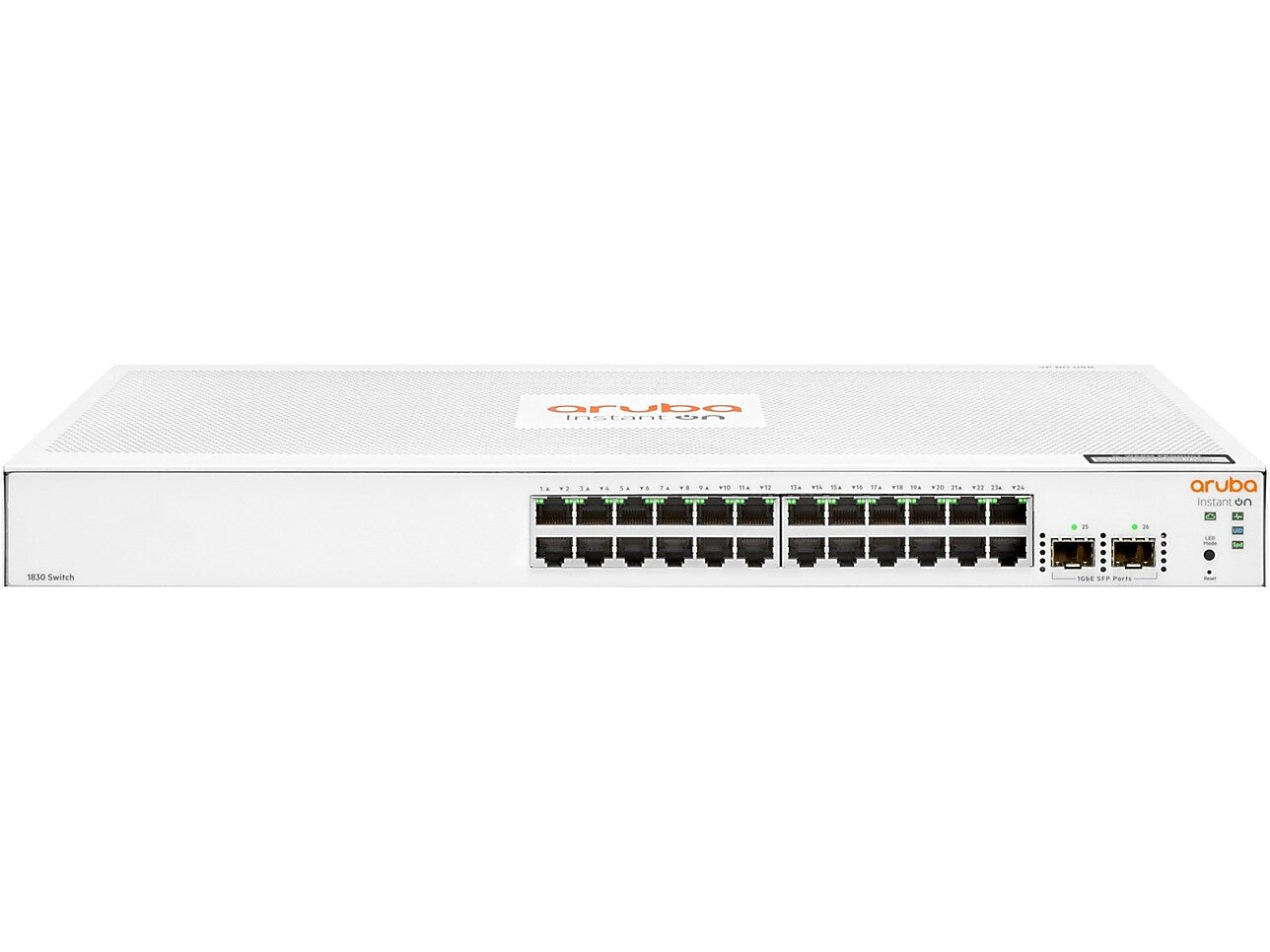

Aruba Instant On 1830 24-Port Gigabit Ethernet Managed Switch, 10/100/1000 Mbps, White (JL812A#ABA)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Aruba Instant On 1830 switch series is an affordable, easy to deploy, smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes — all at an affordable price point.
- Affordable, easy-to-deploy, smart-managed Gigabit switch for small businesses looking for cost-effective ways to keep up with evolving network demands
- This model has 24 x RJ45 10/100/1000 ports and 2 x SFP 1GbE ports
- Use the Instant On mobile app, cloud-based web portal, or the local web GU to quickly setup, monitor, and manage the device
- Throughput: 38.68Mpps maximum; switching capacity: 52Gbps
- Dimensions: 1.73"H x 17.44"W x 8.5"D
- Power consumption at 100-127V: 19.1W maximum, 7.6W idle; at 200-220V: 19W maximum, 7.8W idle
- Certifications and standards: Meets or exceeds the UL 62368-1 2nd. and 3rd. Ed, FCC CFR 47 Part 15: 2018 Class A standards
- Powered by ARM Cortex-A9 800MHz, 512MB SDRAM, 256MB flash memory, and 1.5MB packet buffer memory
- Compact and fanless model for acoustically sensitive environments
- Lifetime manufacturer limited warranty
| Manufacturer # | JL812A#ABA |
| Address Database Size | 16000 |
| Auto-sensing | Yes |
| Brand Name | Aruba |
| Buffer Memory | 1.5MB |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 8.5 |
| Full-duplex | Yes |
| Gaming | Non Gaming |
| Height in Inches | 1.73 |
| Input Voltage | 100-240V |
| Jumbo Frame | 9216 Bytes |
| Lacp | Yes |
| Layer | 2 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Module Support | No |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 24 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Power Supply | Internal power supply |
| Power over Ethernet | No |
| Quality of Service | Yes |
| Snmp | Yes |
| Series or Collection | Instant On 1830 |
| Switch Form Factor | Desktop, Wall Mountable, Rack-Mountable |
| True Color | White |
| Vlan Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 5.5 |
| Width in Inches | 17.44 |
Details
Aruba Instant On 1830 switch series is an affordable, easy to deploy, smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes — all at an affordable price point.
- Affordable, easy-to-deploy, smart-managed Gigabit switch for small businesses looking for cost-effective ways to keep up with evolving network demands
- This model has 24 x RJ45 10/100/1000 ports and 2 x SFP 1GbE ports
- Use the Instant On mobile app, cloud-based web portal, or the local web GU to quickly setup, monitor, and manage the device
- Throughput: 38.68Mpps maximum; switching capacity: 52Gbps
- Dimensions: 1.73"H x 17.44"W x 8.5"D
- Power consumption at 100-127V: 19.1W maximum, 7.6W idle; at 200-220V: 19W maximum, 7.8W idle
- Certifications and standards: Meets or exceeds the UL 62368-1 2nd. and 3rd. Ed, FCC CFR 47 Part 15: 2018 Class A standards
- Powered by ARM Cortex-A9 800MHz, 512MB SDRAM, 256MB flash memory, and 1.5MB packet buffer memory
- Compact and fanless model for acoustically sensitive environments
- Lifetime manufacturer limited warranty
