View Details- Wireless dual-band (2.4GHz, 5GHz) indoor access point intended for enterprises that need more wireless capacity and/or wider channels
- With IEEE 802.11ax standard and data transfer rates up to 2500Mbps, this wireless access point enables efficient network performance
- One port with POE-in support

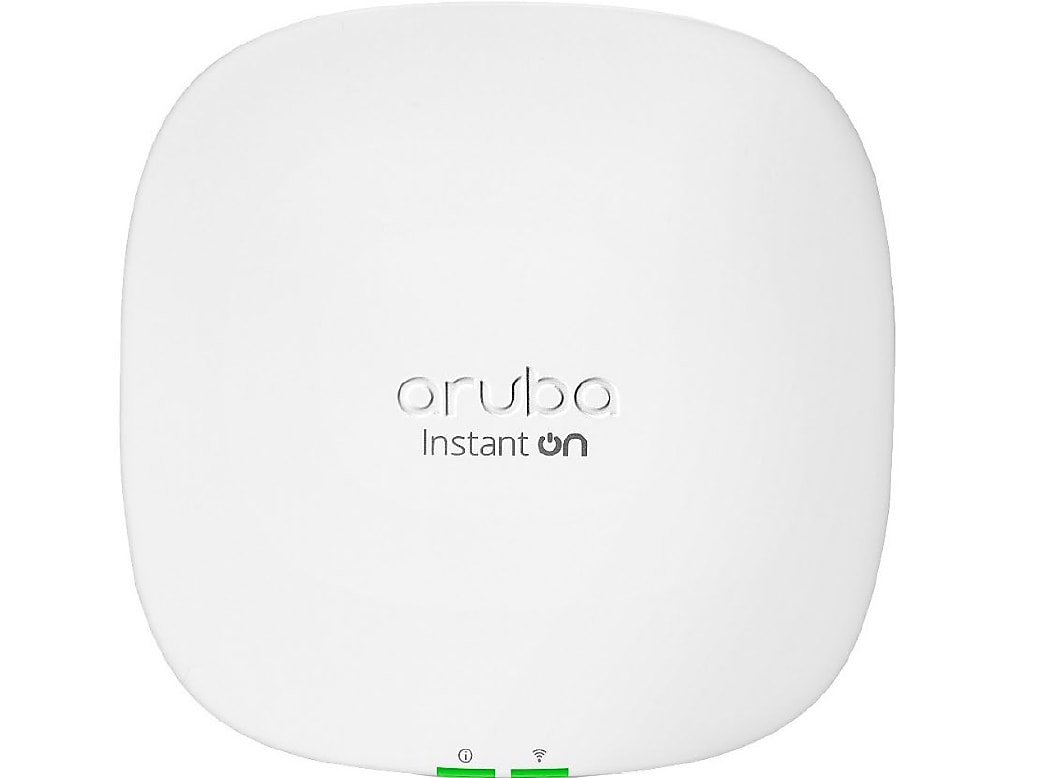

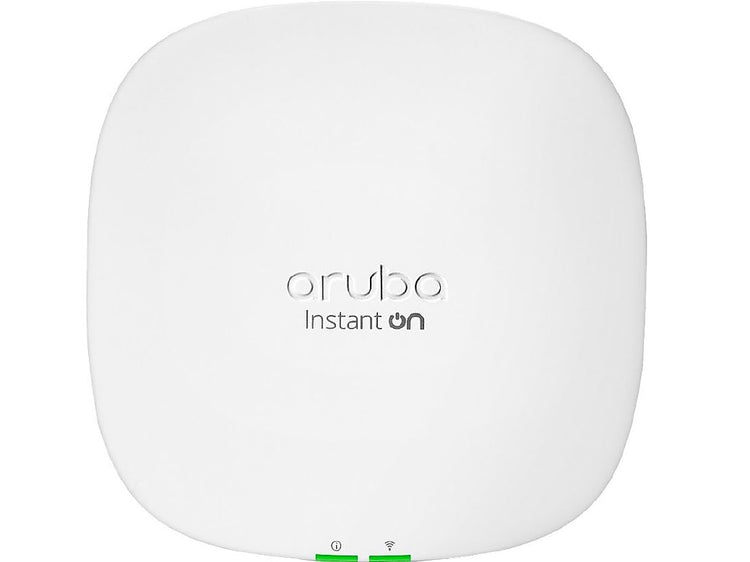

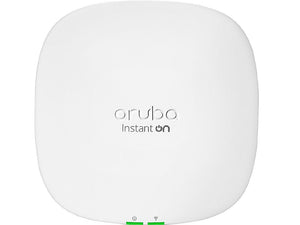

Aruba Instant On AP25 AX 2.5Gbps Dual Band PoE Wi-Fi 6 Access Point, White (R9B27A)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The Aruba Instant On AP25 indoor access point offers ultrahigh-speed performance for high-density small businesses. Perfect for gaming, boutique hotels, tech start-ups, and professional offices. Features of the AP25 include orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and target wake time (TWT). With up to four spatial streams (4SS) and 160MHz channel bandwidth (HE160), the AP25 provides groundbreaking wireless capabilities for businesses looking to boost performance and future-proof their networks.
- Wireless dual-band (2.4GHz, 5GHz) indoor access point intended for enterprises that need more wireless capacity and/or wider channels
- With IEEE 802.11ax standard and data transfer rates up to 2500Mbps, this wireless access point enables efficient network performance
- One port with POE-in support
- Based on the 802.11ax (Wi-Fi 6) standard
- Contains one uplink Gigabit Ethernet port with PoE-in support
- Power over Ethernet (POE): 802.3at (Class 4), 12VDC
- Dual radio for simultaneous dual-band operation: 5GHz 802.11ax 4 x 4 MIMO for an up to 4.8Gbps wireless data rate with MU-MIMO support (Wi-Fi 6); 2.4GHz 802.11ax 2 x 2 MIMO for an up to 574Mbps wireless data rate (Wi-Fi 6)
- Meets or exceeds the EN 60601-1-1 and EN 60601-1-2 standards
- Instant On technology automatically detects and applies highest (critical) PoE priority to access point for uninterrupted power delivery and wireless network access
- HE160 mode delivers higher performance with 160MHz supported clients
- Orthogonal frequency-division multiple access (OFDMA) allows the access point to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type
- Target Wake Time technology helps reduce power consumption, extending battery life
- Supports MU-MIMO, allowing service to multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time
- 1024-Quadrature Amplitude Modulation (1024-QAM) improves throughput to access points and devices
- Low-density parity check (LDPC) delivers high-efficiency error correction for increased throughput
- Manage everything through the official app on the device of your choice with the Aruba Instant On app
- Built-In security gateway/firewall
- 2-year manufacturer limited warranty
| Manufacturer # | R9B27A |
| Antenna | Integrated down-tilt omnidirectional antennas |
| Brand Name | Aruba |
| Connector, Port or Interface Type(s) | 1 x uplink 2.5G Ethernet port with PoE-in support |
| Data Transfer Rate | 2.5Gbps |
| Data Transfer Rate (gbps) | 2.5 |
| Data Transfer Rate (mbps) | 2500 |
| Depth in Inches | 1.77 |
| Frequencies | 2.4/5Ghz |
| Frequency (wireless) | Dual Band 2.4/5GHz |
| Gaming | Non Gaming |
| Height in Inches | 7.87 |
| Max. Data Transfer Rate (mbps) | 2500 - 3000 |
| Power Source | PoE |
| Power over Ethernet | Yes |
| Series or Collection | Instant On AP25 |
| True Color | White |
| Warranty Information | 2 Year |
| Weight (lbs.) | 1.71 |
| Wifi Standard | WiFi 6 |
| Width in Inches | 7.87 |
| Wireless Bands | Dual Band |
| Wireless Connectivity | 802.11ax |
| Wireless Standard | AX |
Details
The Aruba Instant On AP25 indoor access point offers ultrahigh-speed performance for high-density small businesses. Perfect for gaming, boutique hotels, tech start-ups, and professional offices. Features of the AP25 include orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and target wake time (TWT). With up to four spatial streams (4SS) and 160MHz channel bandwidth (HE160), the AP25 provides groundbreaking wireless capabilities for businesses looking to boost performance and future-proof their networks.
- Wireless dual-band (2.4GHz, 5GHz) indoor access point intended for enterprises that need more wireless capacity and/or wider channels
- With IEEE 802.11ax standard and data transfer rates up to 2500Mbps, this wireless access point enables efficient network performance
- One port with POE-in support
- Based on the 802.11ax (Wi-Fi 6) standard
- Contains one uplink Gigabit Ethernet port with PoE-in support
- Power over Ethernet (POE): 802.3at (Class 4), 12VDC
- Dual radio for simultaneous dual-band operation: 5GHz 802.11ax 4 x 4 MIMO for an up to 4.8Gbps wireless data rate with MU-MIMO support (Wi-Fi 6); 2.4GHz 802.11ax 2 x 2 MIMO for an up to 574Mbps wireless data rate (Wi-Fi 6)
- Meets or exceeds the EN 60601-1-1 and EN 60601-1-2 standards
- Instant On technology automatically detects and applies highest (critical) PoE priority to access point for uninterrupted power delivery and wireless network access
- HE160 mode delivers higher performance with 160MHz supported clients
- Orthogonal frequency-division multiple access (OFDMA) allows the access point to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type
- Target Wake Time technology helps reduce power consumption, extending battery life
- Supports MU-MIMO, allowing service to multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time
- 1024-Quadrature Amplitude Modulation (1024-QAM) improves throughput to access points and devices
- Low-density parity check (LDPC) delivers high-efficiency error correction for increased throughput
- Manage everything through the official app on the device of your choice with the Aruba Instant On app
- Built-In security gateway/firewall
- 2-year manufacturer limited warranty
