Highlights
View Details- 4-Port KVM switch intercepts keyboard input directly, it will work on multiple computing platforms
- Dimensions: 2.1"H x 8.3"W x 3.5"D
- Comes in gray/black color

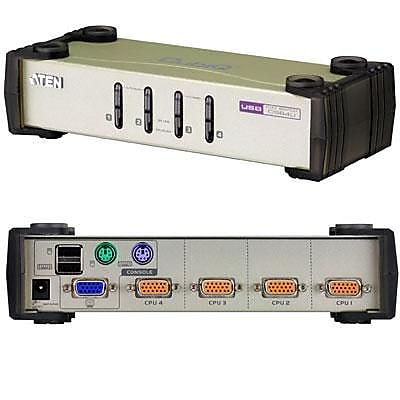

Aten® CS84U 4 Port PS/2 USB Desktop KVM Switch
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Aten® CS84U 4 Port PS/2 USB Desktop KVM Switch
- 4-Port KVM switch intercepts keyboard input directly, it will work on multiple computing platforms
- Dimensions: 2.1"H x 8.3"W x 3.5"D
- Comes in gray/black color
- CPU connectors: Four SPHD-18 [F] keyboard, video, mouse, one DC Jack power
- Console connectors: One 1 USB Type A /1 PS2 6-pin Mini-DIN keyboard, 1 USB Type A /1 PS2 6-pin Mini-DIN Mouse, VGA/one HDB-15 Female monitor,
- Number of computers supported: 4
- Video resolution: Up to 2048 x 1536, Graphic mode: QXGA
- Emulation: PS/2
- LED indicators: Eight orange on line, four green selected
- Port selection: Four pushbutton
- Power supply: 5 VDC 250 mA, Power consumption: 1.2 W/4 BTU
- Form factor: Desktop
- Contains CS84U PS/2-USB KVM switch, 4 x custom KVM cable sets, user guide
- RoHS Compliant
- Weight: 1.7 lbs.
| Manufacturer # | CS84U |
| # of Ports | 4 |
| Brand Name | Aten |
| Connector, Port or Interface Type(s) | PS/2 USB |
| Kvm Cable or Switch Type | KVM Switch |
| Maximum Resolution | 2048 x 1536 |
| Number of Computers Supported | 4 |
| Port Selection | Four pushbutton |
| Power Consumption (watts) | 1.2 |
| Usb | Yes |
| Vga | Yes |
Details
Aten® CS84U 4 Port PS/2 USB Desktop KVM Switch
- 4-Port KVM switch intercepts keyboard input directly, it will work on multiple computing platforms
- Dimensions: 2.1"H x 8.3"W x 3.5"D
- Comes in gray/black color
- CPU connectors: Four SPHD-18 [F] keyboard, video, mouse, one DC Jack power
- Console connectors: One 1 USB Type A /1 PS2 6-pin Mini-DIN keyboard, 1 USB Type A /1 PS2 6-pin Mini-DIN Mouse, VGA/one HDB-15 Female monitor,
- Number of computers supported: 4
- Video resolution: Up to 2048 x 1536, Graphic mode: QXGA
- Emulation: PS/2
- LED indicators: Eight orange on line, four green selected
- Port selection: Four pushbutton
- Power supply: 5 VDC 250 mA, Power consumption: 1.2 W/4 BTU
- Form factor: Desktop
- Contains CS84U PS/2-USB KVM switch, 4 x custom KVM cable sets, user guide
- RoHS Compliant
- Weight: 1.7 lbs.
| Attribute Name | Attribute Value |
|---|
