Highlights
View Details- Ports: One HDMI type A input female, one HDMI type A output female, two USB type A female, two network (RJ-45) ports and one DC jack
- Supported resolution: Up to 1920 x 1200 (WUXGA)
- Meets RoHS and WEEE certifications and standards

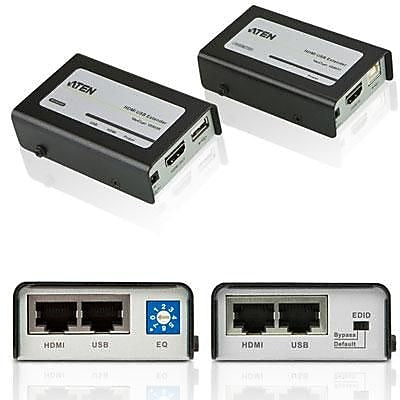

Aten® VE803 HDMI USB Extender
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Aten® VE803 HDMI USB Extender
- Ports: One HDMI type A input female, one HDMI type A output female, two USB type A female, two network (RJ-45) ports and one DC jack
- Supported resolution: Up to 1920 x 1200 (WUXGA)
- Meets RoHS and WEEE certifications and standards
- Dimensions: 0.94"H x 2.26"W x 3.54"D
- Impedance: 100 Ohms input, 100 Ohms output, Material: Metal housing
- Power consumption: 5 VDC, 3.9 W
- Temperature range: 0 - 50 deg C operating, -20 to 60 deg C storage, Humidity: 0 - 80 percent RH non-condensing
- Pixel clock: 225 MHz max, Connectivity technology: Wired, Operating distance: 131.23' max, Number of input devices supported: 1
- Extends an HDMI signal up to 60 m from the HDMI source using two Cat 5e cables
- Supports USB touch panel, 8-segment equalization adjustment switch optimizes display quality, support Dolby True HD and DTS HD master audio
- Built-in 8 kV/15 kV ESD protection, transparent USB supports all USB 2.0 full speed device (up to 12 Mbps)
- Includes one power adapters, one 1.8 m USB cable, one mounting kit, one user instructions
- Weight: 0.35 lbs.
- Comes with limited warranty
- Comes with limited warranty
| Manufacturer # | VE803 |
| Brand Name | Aten |
| Card Type | USB |
| Depth in Inches | 3.54 |
| Gaming | Non Gaming |
| Height in Inches | 0.94 |
| Host Interface | USB |
| Warranty Information | Limited Warranty |
| Weight (ounces) | 5.6 |
| Width in Inches | 2.26 |
Details
Aten® VE803 HDMI USB Extender
- Ports: One HDMI type A input female, one HDMI type A output female, two USB type A female, two network (RJ-45) ports and one DC jack
- Supported resolution: Up to 1920 x 1200 (WUXGA)
- Meets RoHS and WEEE certifications and standards
- Dimensions: 0.94"H x 2.26"W x 3.54"D
- Impedance: 100 Ohms input, 100 Ohms output, Material: Metal housing
- Power consumption: 5 VDC, 3.9 W
- Temperature range: 0 - 50 deg C operating, -20 to 60 deg C storage, Humidity: 0 - 80 percent RH non-condensing
- Pixel clock: 225 MHz max, Connectivity technology: Wired, Operating distance: 131.23' max, Number of input devices supported: 1
- Extends an HDMI signal up to 60 m from the HDMI source using two Cat 5e cables
- Supports USB touch panel, 8-segment equalization adjustment switch optimizes display quality, support Dolby True HD and DTS HD master audio
- Built-in 8 kV/15 kV ESD protection, transparent USB supports all USB 2.0 full speed device (up to 12 Mbps)
- Includes one power adapters, one 1.8 m USB cable, one mounting kit, one user instructions
- Weight: 0.35 lbs.
- Comes with limited warranty
- Comes with limited warranty
| Attribute Name | Attribute Value |
|---|
