Highlights
View Details- 8-Port KVM switch with 17" LCD console allows access to multiple computers from a single keyboard, video and mouse
- Dimensions: 1.7"H x 18.9"W x 24.9"D
- Suitable for use with Windows, Linux, Mac and Sun
Aten 17" Rackmount LCD Console 8 Port PS2 and USB Combo KVM (CL5708M)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days

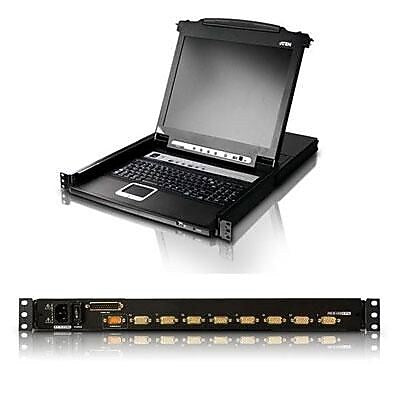

The Aten CL5708M is a Slideaway LCD with 8 Port KVMP Switch which is an integrated LCD console and keyboard, video, and mouse (KVM) switch that offers secure access to 8 attached computers and mounts in only 1U of rack space. It features independently retractable 17" LCD monitor and keyboard with built-in touchpad. The CL5708M supports either PS/2 or USB servers, and for added convenience an external USB mouse. A single CL5708 can control up to 8 computers, and as many as 31 additional CS1708A / CS1716A KVM switches can be daisy chained together, for a maximum of 256 / 512 being controlled from a single console.
- 8-Port KVM switch with 17" LCD console allows access to multiple computers from a single keyboard, video and mouse
- Dimensions: 1.7"H x 18.9"W x 24.9"D
- Suitable for use with Windows, Linux, Mac and Sun
- Metal and plastic housing offers durability
- Interface/ports: Eight SPHD-15 female computer/KVM, one 3-prong AC socket power, one USB Type-A female USB, one DB-25 male
- Console connectors: One SPHD-18 male keyboard, mouse and monitor, one USB Type-A female monitor, one RJ-11 female flash ROM upgrade
- Emulation: PS/2, USB keyboard and mouse
- Number of computers supported: 8
- Video performance: 1280 x 1024 at 75 Hz (DDC2B), Display: 17" TFT active matrix LED-backlit LCD monitor
- LED indicators: Two 7-segment LED Port ID, one Power On, one LCD Power, two 7-segment LED Station ID, eight On Line
- Port selection: One rocker power, one pushbutton LCD power, four pushbuttons LCD adjustment, two pushbuttons [port], two pushbuttons[station]
- Power supply: 110 - 230 VAC 50 - 60 Hz 1 A, Power consumption: 120 V, 15.2 W/230 V, 16 W
- Form factor: Rack-mountable
- Has daisy chain up to 31 additional units, control up to 256 computers from a single console
- Contains one 5-in-1 USB/PS/2 console cable, one power cord, two custom KVM cable sets, one firmware upgrade cable and one grounding wire
- RoHS and WEEE compliant
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Supports external USB mouse
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- No software required
- Two level password security - only authorized users can view and control computers
- Video resolutions up to 1280 x 1024@ 75Hz.
- Upgradeable firmware - simultaneously upgrade the firmware for all KVM switches on the chain via the chaining bus
| Manufacturer # | CL5708M |
| Brand Name | Aten |
| True Color | Black |
| Usb | Yes |
Details
The Aten CL5708M is a Slideaway LCD with 8 Port KVMP Switch which is an integrated LCD console and keyboard, video, and mouse (KVM) switch that offers secure access to 8 attached computers and mounts in only 1U of rack space. It features independently retractable 17" LCD monitor and keyboard with built-in touchpad. The CL5708M supports either PS/2 or USB servers, and for added convenience an external USB mouse. A single CL5708 can control up to 8 computers, and as many as 31 additional CS1708A / CS1716A KVM switches can be daisy chained together, for a maximum of 256 / 512 being controlled from a single console.
- 8-Port KVM switch with 17" LCD console allows access to multiple computers from a single keyboard, video and mouse
- Dimensions: 1.7"H x 18.9"W x 24.9"D
- Suitable for use with Windows, Linux, Mac and Sun
- Metal and plastic housing offers durability
- Interface/ports: Eight SPHD-15 female computer/KVM, one 3-prong AC socket power, one USB Type-A female USB, one DB-25 male
- Console connectors: One SPHD-18 male keyboard, mouse and monitor, one USB Type-A female monitor, one RJ-11 female flash ROM upgrade
- Emulation: PS/2, USB keyboard and mouse
- Number of computers supported: 8
- Video performance: 1280 x 1024 at 75 Hz (DDC2B), Display: 17" TFT active matrix LED-backlit LCD monitor
- LED indicators: Two 7-segment LED Port ID, one Power On, one LCD Power, two 7-segment LED Station ID, eight On Line
- Port selection: One rocker power, one pushbutton LCD power, four pushbuttons LCD adjustment, two pushbuttons [port], two pushbuttons[station]
- Power supply: 110 - 230 VAC 50 - 60 Hz 1 A, Power consumption: 120 V, 15.2 W/230 V, 16 W
- Form factor: Rack-mountable
- Has daisy chain up to 31 additional units, control up to 256 computers from a single console
- Contains one 5-in-1 USB/PS/2 console cable, one power cord, two custom KVM cable sets, one firmware upgrade cable and one grounding wire
- RoHS and WEEE compliant
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Supports external USB mouse
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- No software required
- Two level password security - only authorized users can view and control computers
- Video resolutions up to 1280 x 1024@ 75Hz.
- Upgradeable firmware - simultaneously upgrade the firmware for all KVM switches on the chain via the chaining bus
