Highlights
View Details- Wall mount bracket suits all environments, both indoors and outdoors
- Dimensions: 8.4"H x 7.3"W x 15.9"D
- Compatibility: AXIS P5512-E PTZ, P5514-E PTZ, P5515-E, Q6000-E, Q6000-E, Q6045-E Mk II PTZ, Q6045-E PTZ, Q6128-E PTZ, Q6115-E dome network cameras

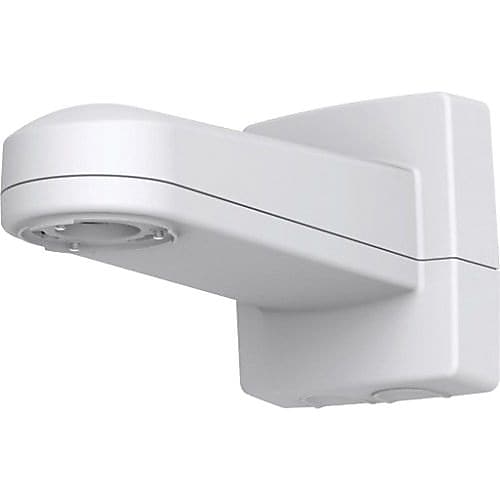

AXIS® T91G61 White Wall Mount Bracket for Q3907-PVE Network Camera
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The AXIS 5506-951 T91G61 white wall mount bracket is suitable for Q3907-PVE network camera. It is suitable for both indoor and outdoor applications. This bracket safely protects against water ingress inside the mount. This bracket comes in a powder coated aluminum casing. Pre-mounted Ethernet cable with IP66 RJ45 connector helps to connect power and data to network cameras.
- Wall mount bracket suits all environments, both indoors and outdoors
- Dimensions: 8.4"H x 7.3"W x 15.9"D
- Compatibility: AXIS P5512-E PTZ, P5514-E PTZ, P5515-E, Q6000-E, Q6000-E, Q6045-E Mk II PTZ, Q6045-E PTZ, Q6128-E PTZ, Q6115-E dome network cameras
- Color: White, Material: Powder coated aluminum casing
- Maximum load: 30 kg (66 lbs.)
- Cable routing: Cable hole back, 0.75" conduit entrance x2 bottom
- Designed to accommodate and safely protect against water ingress inside the mount, such as midspans and Media converters
- Pre-mounted Ethernet cable with IP66 RJ45 connector (with gasket) helps quickly and easily connecting power and data to network cameras
- Impact-resistant and outdoor proven material
- AXIS T91G61 has the same hole pattern as the standard Axis PTZ wall mount and for retrofit
- A pattern that matches Pelco's PTZ camera mount to enable an easy switch - no additional drilling is required
- Includes: Installation guide, Ethernet cable with IP66 RJ45 connector (with gasket), foam gaskets and silicone strap (pre-mounted)
- Meets IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-27 certifications and standards
- Weight: 7.7 lbs.
- Comes with 3 years warranty
| Manufacturer # | 5506951 |
| Brand Name | Axis |
| Compatibility | AXIS P5512-E PTZ, P5514-E PTZ, P5515-E, Q6000-E, Q6000-E, Q6045-E Mk II PTZ, Q6045-E PTZ, Q6128-E PTZ, Q6115-E dome network cameras |
| Connector, Port or Interface Type(s) | Connector |
| Depth in Inches | 15.9 |
| Height in Inches | 8.4 |
| Indoor or Outdoor Use | Indoor and Outdoor |
| Material of Item | Aluminum |
| Pack Qty | 1 |
| Security System Accessory Type | Mount/Bracket |
| True Color | White |
| Weight (lbs.) | 7.7 |
| Width in Inches | 7.3 |
Details
The AXIS 5506-951 T91G61 white wall mount bracket is suitable for Q3907-PVE network camera. It is suitable for both indoor and outdoor applications. This bracket safely protects against water ingress inside the mount. This bracket comes in a powder coated aluminum casing. Pre-mounted Ethernet cable with IP66 RJ45 connector helps to connect power and data to network cameras.
- Wall mount bracket suits all environments, both indoors and outdoors
- Dimensions: 8.4"H x 7.3"W x 15.9"D
- Compatibility: AXIS P5512-E PTZ, P5514-E PTZ, P5515-E, Q6000-E, Q6000-E, Q6045-E Mk II PTZ, Q6045-E PTZ, Q6128-E PTZ, Q6115-E dome network cameras
- Color: White, Material: Powder coated aluminum casing
- Maximum load: 30 kg (66 lbs.)
- Cable routing: Cable hole back, 0.75" conduit entrance x2 bottom
- Designed to accommodate and safely protect against water ingress inside the mount, such as midspans and Media converters
- Pre-mounted Ethernet cable with IP66 RJ45 connector (with gasket) helps quickly and easily connecting power and data to network cameras
- Impact-resistant and outdoor proven material
- AXIS T91G61 has the same hole pattern as the standard Axis PTZ wall mount and for retrofit
- A pattern that matches Pelco's PTZ camera mount to enable an easy switch - no additional drilling is required
- Includes: Installation guide, Ethernet cable with IP66 RJ45 connector (with gasket), foam gaskets and silicone strap (pre-mounted)
- Meets IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60068-2-27 certifications and standards
- Weight: 7.7 lbs.
- Comes with 3 years warranty
