Highlights
View Details- Indoor/outdoor dome security camera with deep learning technology
- Connectors: shielded RJ45 with PoE support, DC input, 3.5mm mic/line-in, 3.5mm line-out, terminal block for two configurable supervised inputs/digital outputs
- Captures video in resolutions up to 2688 x 1512 at 60 fps (without WDR) or 30 fps (with WDR)

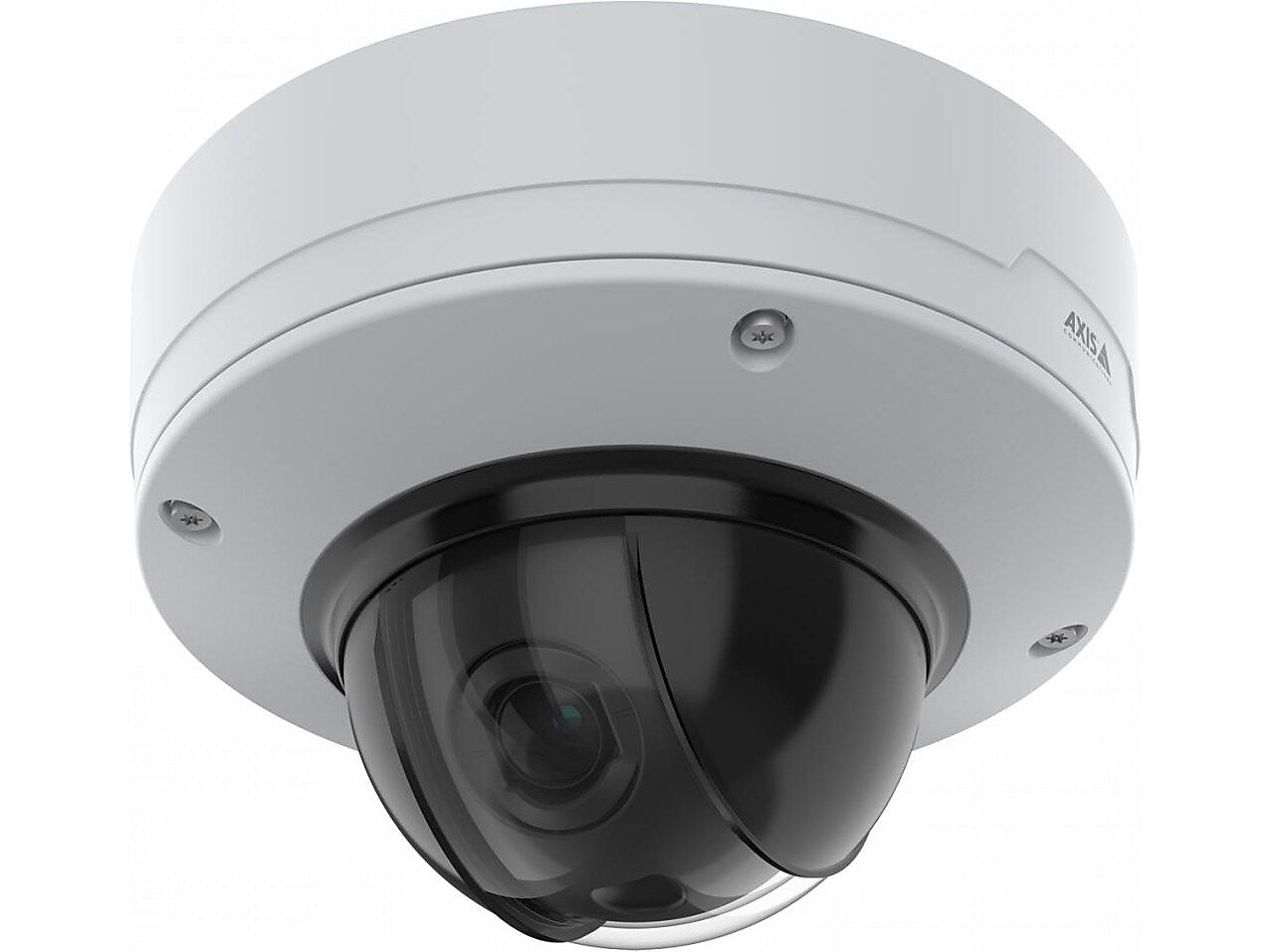

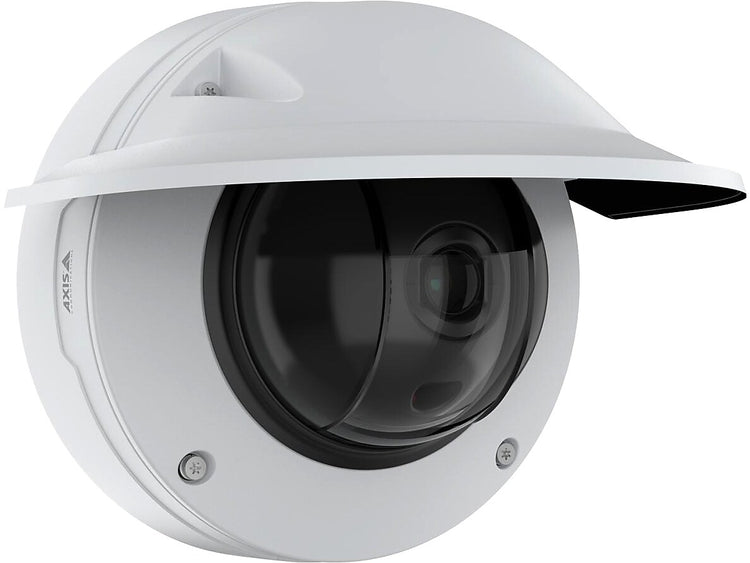

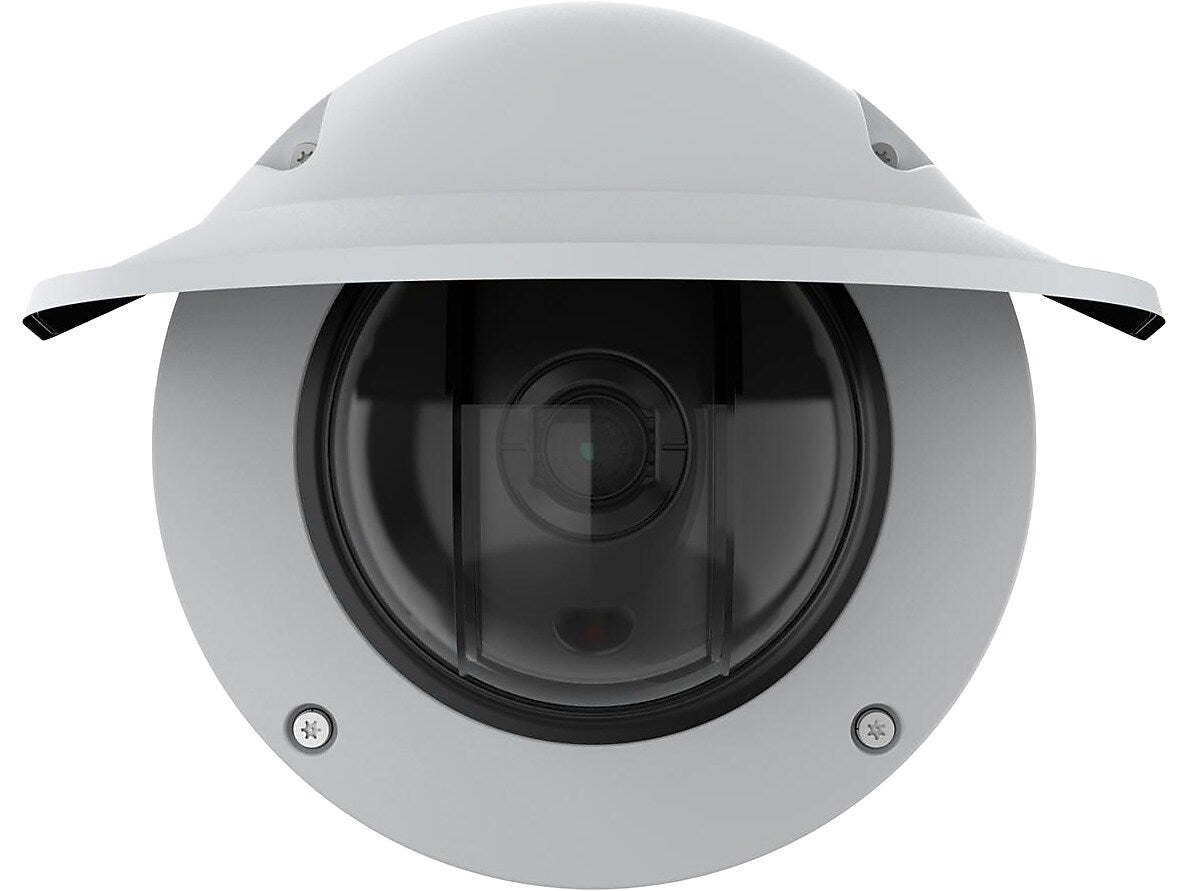

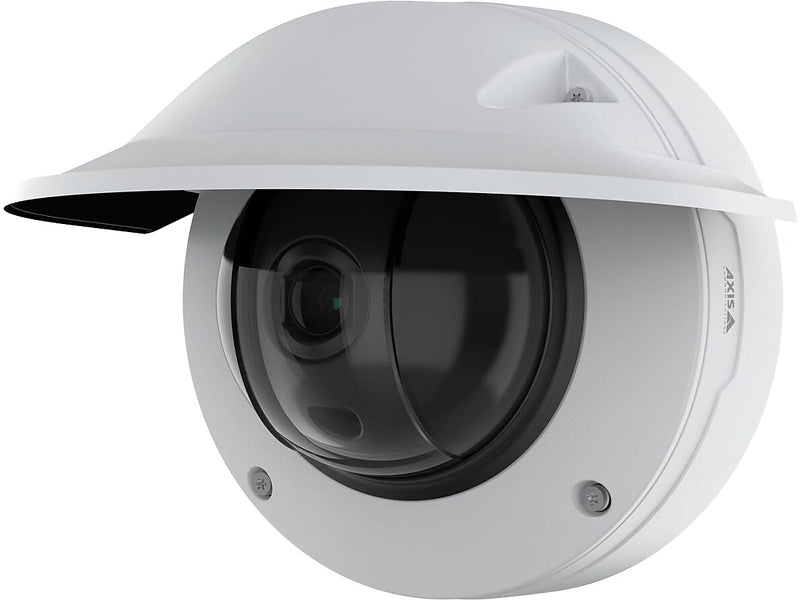

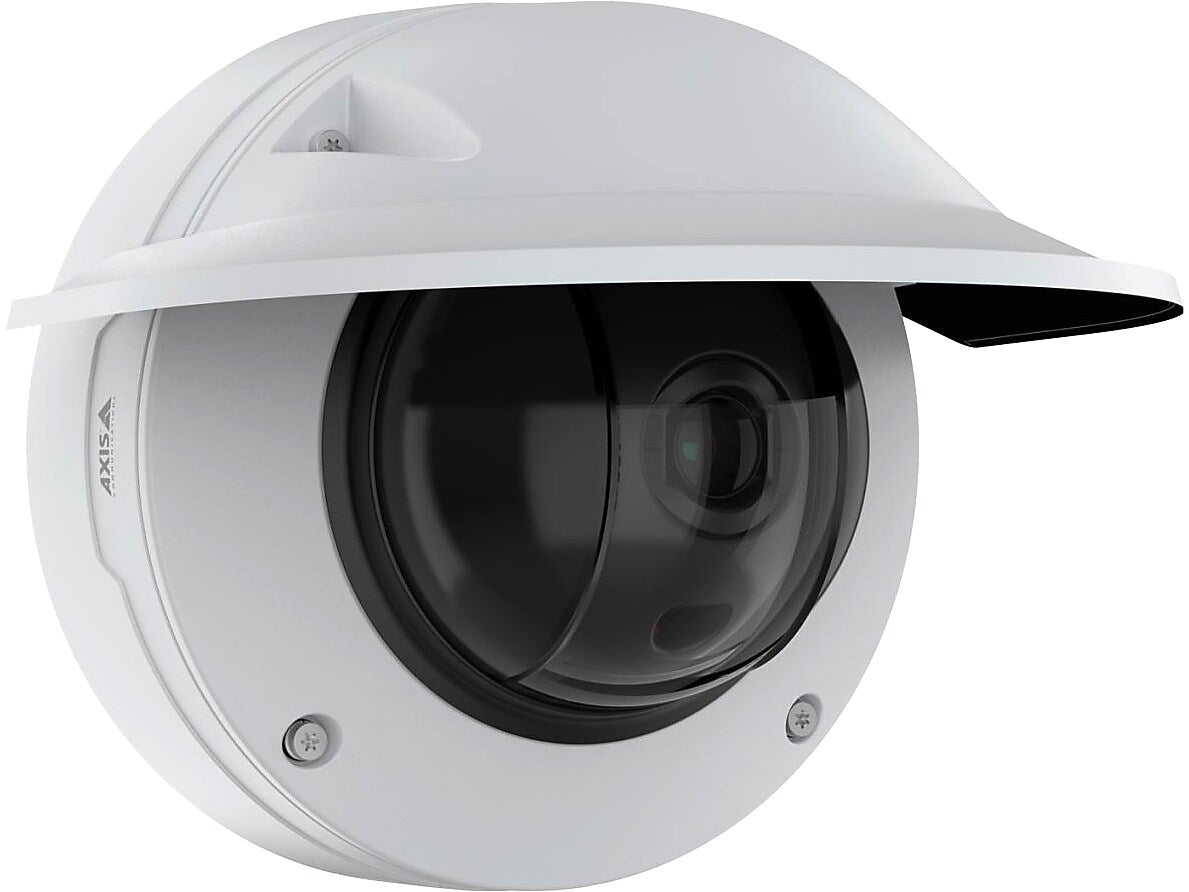

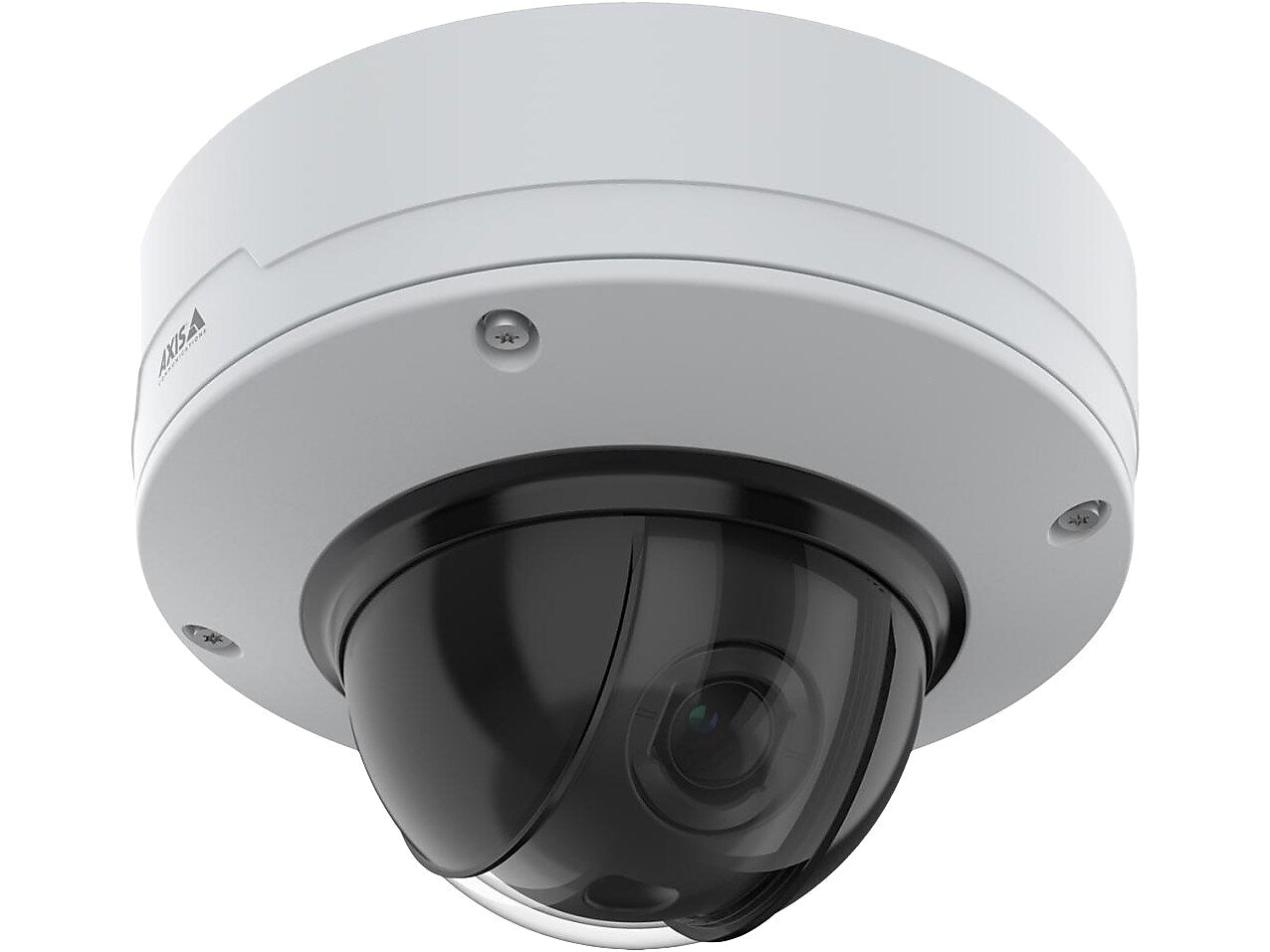

Axis Q3536-LVE Indoor/Outdoor Dome Camera, White (02054-001)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Built on ARTPEC-8, Axis Q3536-LVE offers advanced features and powerful applications based on deep learning. Axis Q3536-LVE features outstanding image quality and forensic details in 4 MP resolution—even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR-shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations.
- Indoor/outdoor dome security camera with deep learning technology
- Connectors: shielded RJ45 with PoE support, DC input, 3.5mm mic/line-in, 3.5mm line-out, terminal block for two configurable supervised inputs/digital outputs
- Captures video in resolutions up to 2688 x 1512 at 60 fps (without WDR) or 30 fps (with WDR)
- Supports recording to microSD/microSDHC/microSDXC card and to network-attached storage (NAS)
- Includes Axis Object Analytics, Axis Video Motion Detection, active tampering alarm, audio detection
- Camera dimensions: 4.9"H x 7.3"Dia.; weather shield dimensions: 7.25" x 8.76"
- Featuring a deep learning processing unit (DLPU), the camera eliminates the need for expensive servers and allows for a faster and more scalable system
- Enclosed in a metal casing, this robust, IK10+ rated outdoor-ready camera is protected against redirection, defocusing, and impacts
- Including sensors for intrusion and shock detection, the camera is also packed with built-in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system
- Included accessories: installation guide, Windows decoder one-user license, drill hole template, terminal block connectors for DC and I/O, RESISTORX L-key, connector guard, cable gasket, conduit adapter, mounting bracket, weather shield
- 5-year manufacturer limited warranty
| Manufacturer # | 02054001 |
| Audio Communication | Two-Way |
| Audio Compression | AAC LC, G.711, G.726 |
| Brand Name | Axis |
| Camera Image Sensor | CMOS |
| Casing | Mixed Materials |
| Color Family | White |
| Color Supported | Color, Monochrome |
| Connector, Port or Interface Type(s) | Shielded RJ45 with PoE support, DC input, 3.5 mm mic/line in, 3.5 mm line out, Terminal block for two configurable supervised inputs/digital outputs |
| Depth in Inches | 7.3 |
| Dummy Security Camera | Not Dummy |
| Fixed or Ptz | PTZ |
| Frames Per Second | Up to 30 fps with WDR; up to 60 fps without WDR |
| Height in Inches | 4.9 |
| Horizontal Field of View (degrees) | 103 - 53 |
| Live Video Streaming | Yes |
| Maximum Operating Temperature (f) | 131 |
| Minimum Illumination | 0 |
| Night Vision Capable | Yes |
| Night Vision Distance (feet) | 130 |
| Night Vision Type | IR Cut Filter |
| Number of Cameras Included | 1 |
| Pan Angle (degrees) | 180 |
| Power Source | PoE, VDC |
| Security Camera & Systems Type | Security Camera |
| Security Camera Commercial or Residential | Commercial/Residential |
| Security Camera Connectivity | Wired |
| Security Camera Design | Dome |
| Security Camera Indoor or Outdoor | Indoor/Outdoor |
| Security Camera Optical Zoom | 4x & Under |
| Security Camera Storage Type | NAS, SD Card |
| Series or Collection | Q3536-LVE |
| Tilt Angle (deg) | 123 |
| True Color | White |
| Vertical Field of View (degrees) | 56 - 30 |
| Video Capture Resolution | Up to 2688 x 1512 |
| Video Compression | H.264, H.265, MJPEG |
| Warranty Information | 5 Year |
| Weight (lbs.) | 4.6 |
| Width in Inches | 7.3 |
Details
Built on ARTPEC-8, Axis Q3536-LVE offers advanced features and powerful applications based on deep learning. Axis Q3536-LVE features outstanding image quality and forensic details in 4 MP resolution—even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR-shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations.
- Indoor/outdoor dome security camera with deep learning technology
- Connectors: shielded RJ45 with PoE support, DC input, 3.5mm mic/line-in, 3.5mm line-out, terminal block for two configurable supervised inputs/digital outputs
- Captures video in resolutions up to 2688 x 1512 at 60 fps (without WDR) or 30 fps (with WDR)
- Supports recording to microSD/microSDHC/microSDXC card and to network-attached storage (NAS)
- Includes Axis Object Analytics, Axis Video Motion Detection, active tampering alarm, audio detection
- Camera dimensions: 4.9"H x 7.3"Dia.; weather shield dimensions: 7.25" x 8.76"
- Featuring a deep learning processing unit (DLPU), the camera eliminates the need for expensive servers and allows for a faster and more scalable system
- Enclosed in a metal casing, this robust, IK10+ rated outdoor-ready camera is protected against redirection, defocusing, and impacts
- Including sensors for intrusion and shock detection, the camera is also packed with built-in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system
- Included accessories: installation guide, Windows decoder one-user license, drill hole template, terminal block connectors for DC and I/O, RESISTORX L-key, connector guard, cable gasket, conduit adapter, mounting bracket, weather shield
- 5-year manufacturer limited warranty
