Highlights
View Details- 0.25"Dia high-temperature masking disks
- Total thickness: 2.5 mil
- Masking disks are primarily used in circuit board production, wave soldering, and other applications

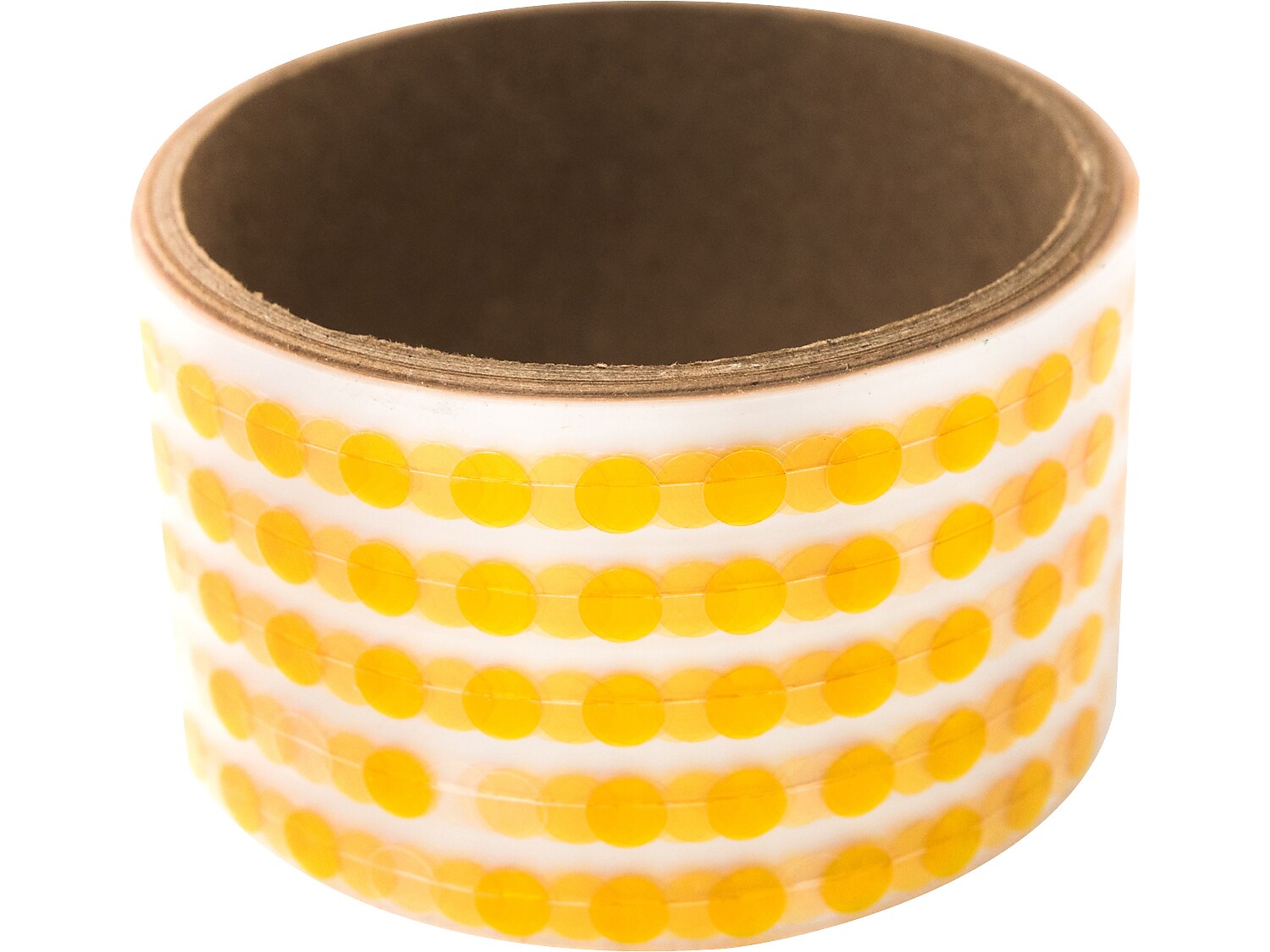

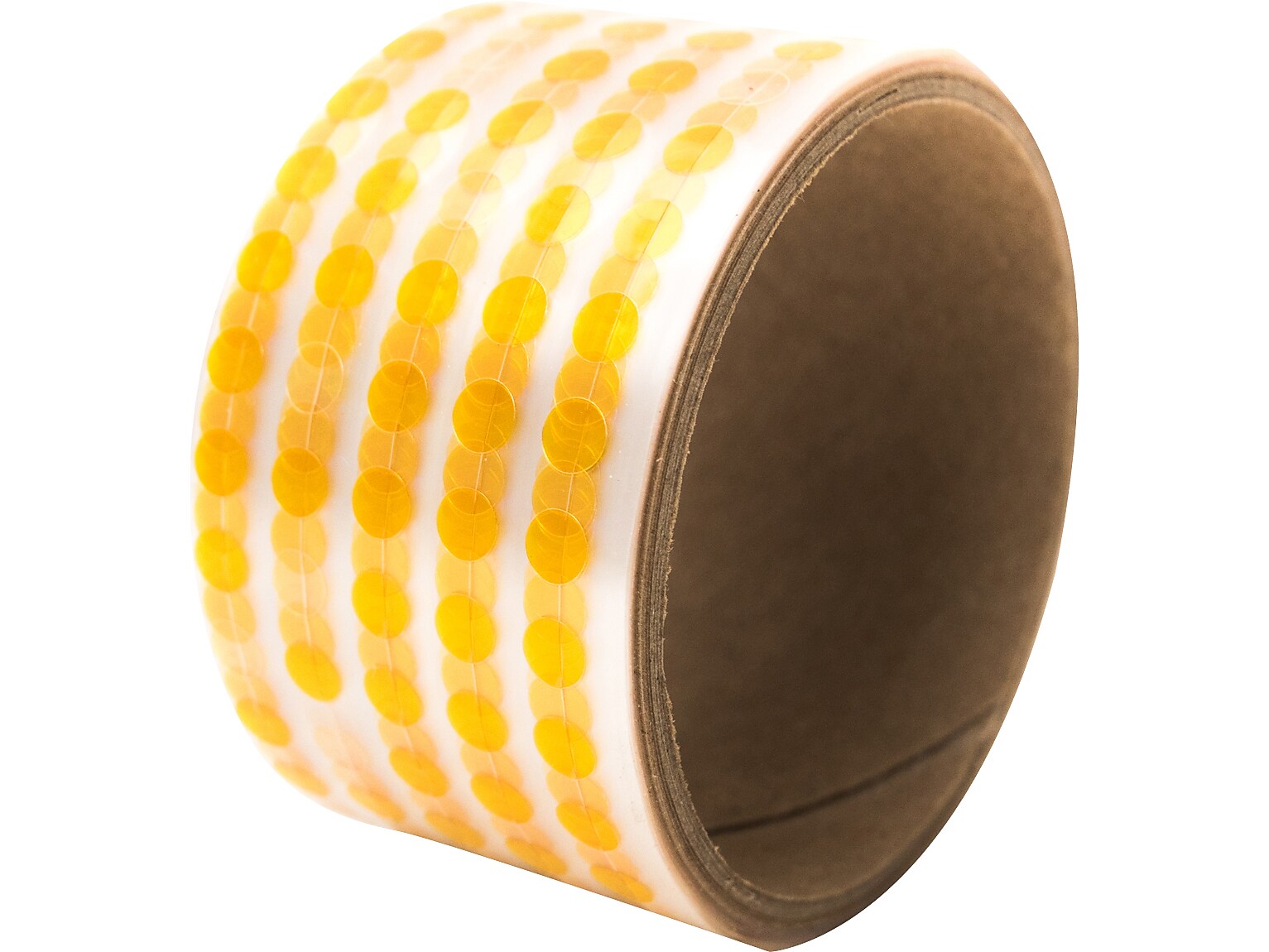

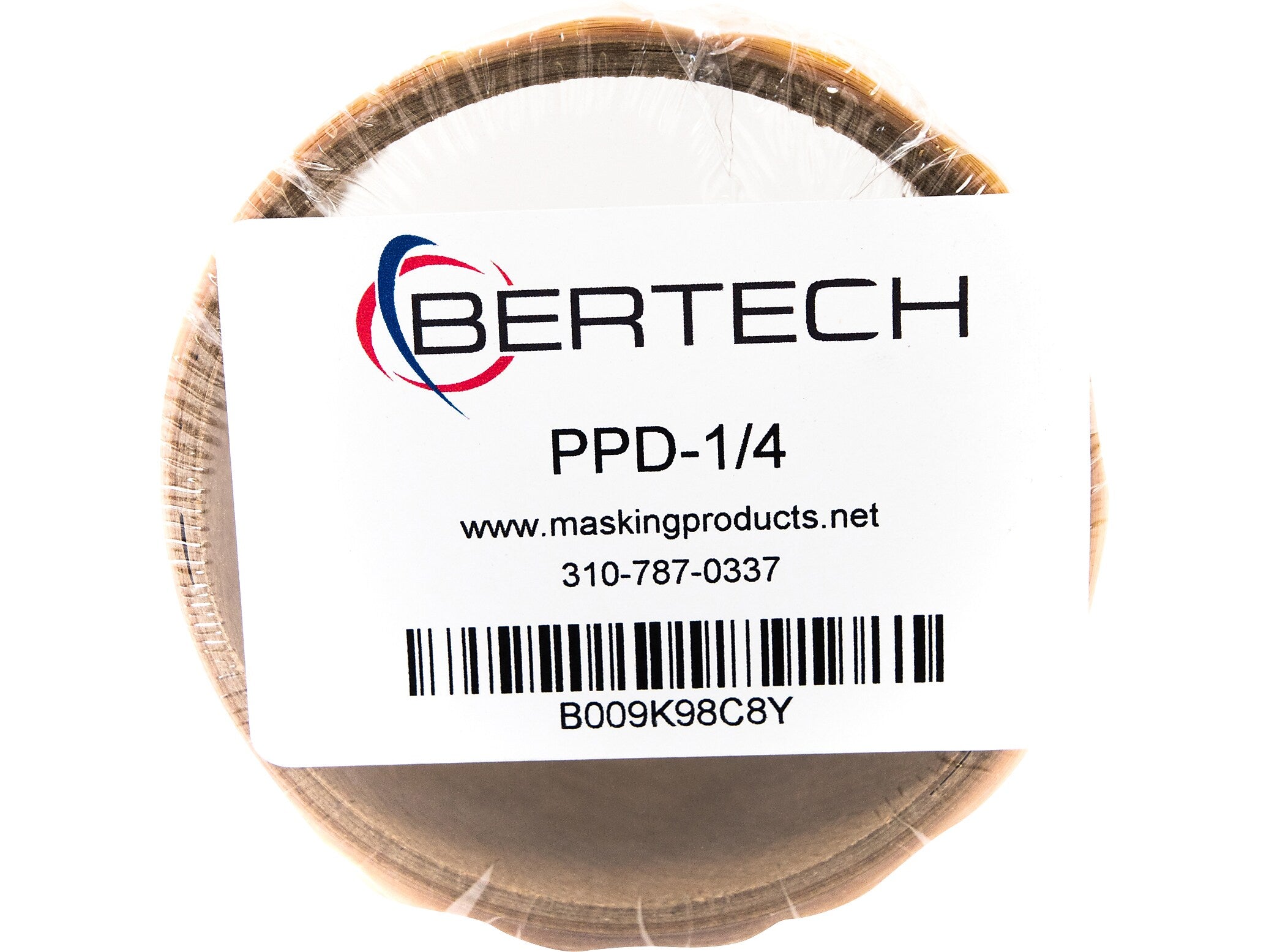

Bertech Masking Disks, 0.25"Dia, Amber, 500/Roll (PPD-1/4)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Bertech high-temperature masking disks are made of 1 mil thick polyimide film with 1.5 mil thick silicone adhesive. These masking disks are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. Masking disks are primarily used in circuit board production, wave soldering, and other applications. Masking disks are primarily used in circuit board production, wave soldering, and other applications.
- 0.25"Dia high-temperature masking disks
- Total thickness: 2.5 mil
- Masking disks are primarily used in circuit board production, wave soldering, and other applications
- Comes in amber color
- Made of 1 mil polyimide film with 1.5 mil silicone adhesive which does not leave any residue
- They are packaged on a 3" core; 2000 disks per roll
- Tensile strength is 3.5kg/inch (7.72 lbs./inch)
- Meets or exceeds RoHS standard
- Masking disks are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments
- These disks can withstand temperatures of up to 500 degrees Fahrenheit
| Manufacturer # | PPD1/4 |
| Brand Name | Bertech |
| Color Family | Yellow |
| Core Diameter (inches) | 3 |
| Masking Tape Type | Masking |
| Operating Temperature Range | withstand temperatures of up to 500 degrees Fahrenheit |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Tape Pack Size | 51-100 |
| Tensile Strength (lbs Per Inches of Width) | 7.72 |
| Thickness (mils) | 2.5 |
| True Color | Amber |
Details
Bertech high-temperature masking disks are made of 1 mil thick polyimide film with 1.5 mil thick silicone adhesive. These masking disks are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. Masking disks are primarily used in circuit board production, wave soldering, and other applications. Masking disks are primarily used in circuit board production, wave soldering, and other applications.
- 0.25"Dia high-temperature masking disks
- Total thickness: 2.5 mil
- Masking disks are primarily used in circuit board production, wave soldering, and other applications
- Comes in amber color
- Made of 1 mil polyimide film with 1.5 mil silicone adhesive which does not leave any residue
- They are packaged on a 3" core; 2000 disks per roll
- Tensile strength is 3.5kg/inch (7.72 lbs./inch)
- Meets or exceeds RoHS standard
- Masking disks are reliable and durable with a unique combination of electrical, thermal, chemical, and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments
- These disks can withstand temperatures of up to 500 degrees Fahrenheit
| Attribute Name | Attribute Value |
|---|
