Highlights
View Details- 4 Port Ethernet Switch
- Ready for embedded applications
- Redundant dual power inputs: +5V to +30V DC

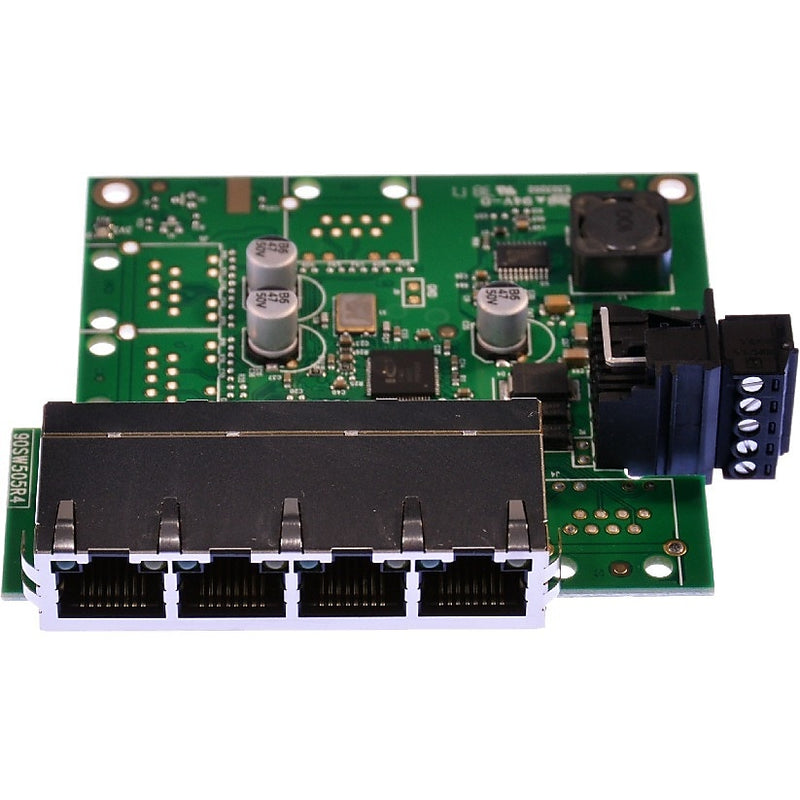

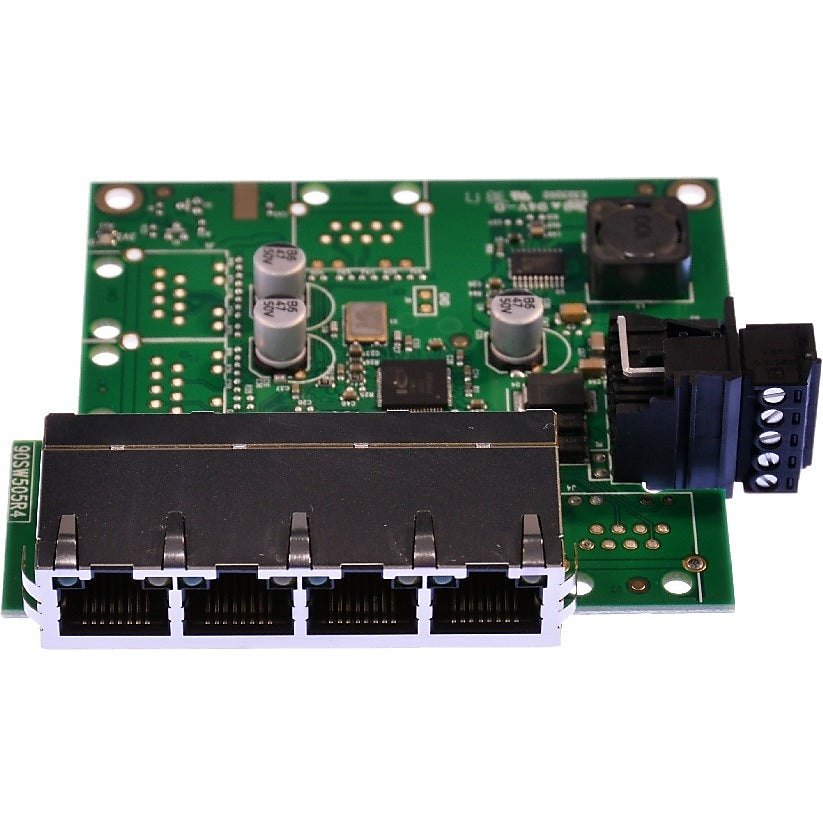

Brainboxes 4-Port Ethernet Unmanaged Switch, 10/100 Mbps (SW-104)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
- 4 Port Ethernet Switch
- Ready for embedded applications
- Redundant dual power inputs: +5V to +30V DC
- IEEE 802.3at standard-compliant-60 W
| Manufacturer # | SW104 |
| Brand Name | Brainboxes |
| Data Transfer Rate | 10/100 Mbps |
| Max. Data Transfer Rate (mbps) | 100 or less |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 4 |
| Performance Class | Fast Ethernet |
| Snmp | No |
Details
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
- 4 Port Ethernet Switch
- Ready for embedded applications
- Redundant dual power inputs: +5V to +30V DC
- IEEE 802.3at standard-compliant-60 W
| Attribute Name | Attribute Value |
|---|
