Highlights
View Details- Dimensions: 3.5"(H) x 4.5"(W) x 0.9"(D)
- Form factor: Rail mountable
- Interface/ports: 4 x RJ-45, 4 x Fast Ethernet network

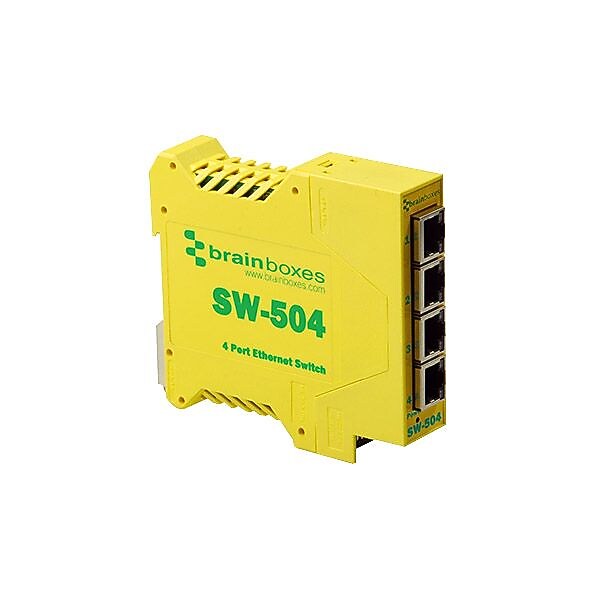

Brainboxes 4-Port Ethernet Unmanaged Switch, 10/100 Mbps (SW-504)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
This package includes the SW-504 industrial unmanaged Ethernet switch with 4 ports and a quick start guide.
- Dimensions: 3.5"(H) x 4.5"(W) x 0.9"(D)
- Form factor: Rail mountable
- Interface/ports: 4 x RJ-45, 4 x Fast Ethernet network
- Layer supported: 2
- Network technology: 10/100Base-TX, Media type supported: Twisted pair
- Ethernet technology: Fast Ethernet
- Input voltage: 5 VDC
- Power source: AC adapter, USB
- Operating temperature: -30 - +80 deg C
- Power consumption: 1.1 W, 220 mA at +5 VDC/36 mA at +30 VDC maximum
- Integrated DIN rail mount
- Slim footprint case
- Complaints and standards: CCC-Mark, C-Tick, Microsoft certified Gold Partner, WEEE, RoHS, METL, AEO (C-TPAT)
- Warranty: Lifetime limited
| Manufacturer # | IM1TE5921 |
| Brand Name | Brainboxes |
| Data Transfer Rate | 10/100 Mbps |
| Depth in Inches | 0.9 |
| Height in Inches | 3.5 |
| Max. Data Transfer Rate (mbps) | 100 or less |
| Module Support | Twisted Pair |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 4 |
| Performance Class | Fast Ethernet |
| Snmp | No |
| Warranty Information | Limited Lifetime Warranty |
| Width in Inches | 4.5 |
Details
This package includes the SW-504 industrial unmanaged Ethernet switch with 4 ports and a quick start guide.
- Dimensions: 3.5"(H) x 4.5"(W) x 0.9"(D)
- Form factor: Rail mountable
- Interface/ports: 4 x RJ-45, 4 x Fast Ethernet network
- Layer supported: 2
- Network technology: 10/100Base-TX, Media type supported: Twisted pair
- Ethernet technology: Fast Ethernet
- Input voltage: 5 VDC
- Power source: AC adapter, USB
- Operating temperature: -30 - +80 deg C
- Power consumption: 1.1 W, 220 mA at +5 VDC/36 mA at +30 VDC maximum
- Integrated DIN rail mount
- Slim footprint case
- Complaints and standards: CCC-Mark, C-Tick, Microsoft certified Gold Partner, WEEE, RoHS, METL, AEO (C-TPAT)
- Warranty: Lifetime limited
| Attribute Name | Attribute Value |
|---|
