Highlights
View Details- This unmanaged Gigabit Ethernet switch features five ports, supports speeds of 10/100/1000 Mbps, and operates without the need for configuration.
- Data transfer rate of 10/100/1000 Mbps, supporting Gigabit Ethernet speeds
- It has a mega compact form factor, measuring just 55 x 55 x 16 mm (2.17 x 2.17 x 0.63 inches), which is smaller than a standard business card.

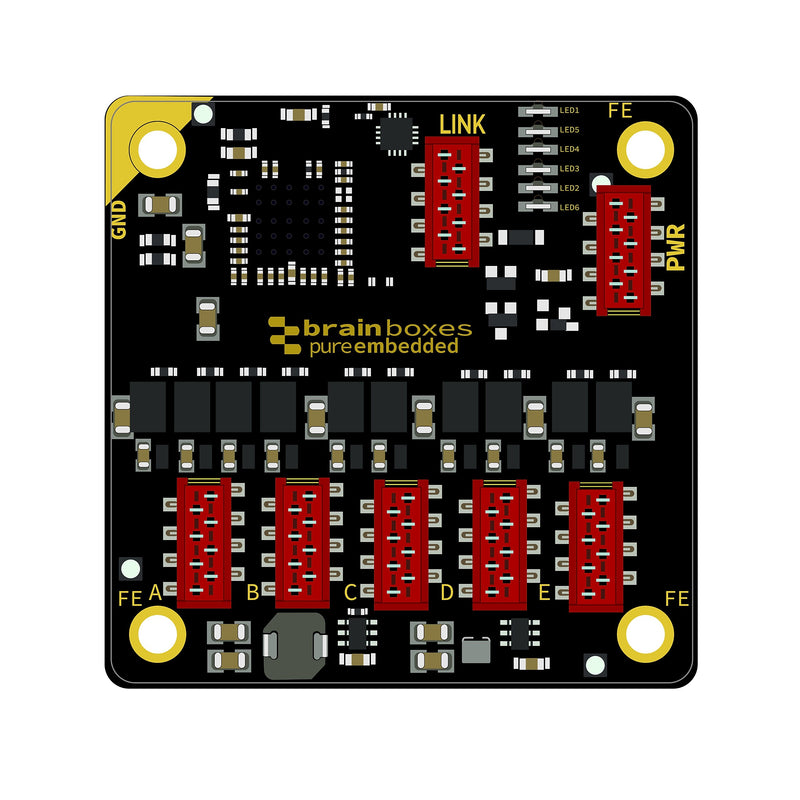

Brainboxes 5-Port Gigabit Ethernet Switch Industrial, 1000 Mbps, Black (PE-515)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.
- This unmanaged Gigabit Ethernet switch features five ports, supports speeds of 10/100/1000 Mbps, and operates without the need for configuration.
- Data transfer rate of 10/100/1000 Mbps, supporting Gigabit Ethernet speeds
- It has a mega compact form factor, measuring just 55 x 55 x 16 mm (2.17 x 2.17 x 0.63 inches), which is smaller than a standard business card.
- Designed for straightforward plug-and-play operation without the need for configuration
- With a throughput of 10/100/1000 Mbps, this device supports Gigabit Ethernet speeds and operates in a non-blocking layer 2 mode, ensuring efficient data transfer without packet loss.
- Maximum power consumption of 3.3W
- Industrial operating temp (-40 °C to +85 °C / -40°F to +176°F)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations – can be directed to outer casing via fiber optics or light pipe, or electrically wired
- Comes with a 10 year limited warranty
| Manufacturer # | PE515 |
| Amperage (amps) | 0.66 |
| Auto-detecting | Yes |
| Auto-sensing | Yes |
| Brand Name | Brainboxes |
| Buffer Memory | 128KB |
| Data Rate Performances | 10/100/1000Mbps |
| Data Transfer Rate | 1000 Mbps |
| Data Transfer Rate (gbps) | 1 |
| Data Transfer Rate (mbps) | 1000 |
| Depth in Inches | 2.17 |
| Full-duplex | Yes |
| Gaming | Non Gaming |
| Height in Inches | 0.63 |
| Input Voltage | 3.3V or 5V DC |
| Jumbo Frame | No |
| Lacp | No |
| Layer | 2 |
| Max. Data Transfer Rate (mbps) | 1000 - 1499 |
| Module Support | Yes |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 5 |
| Performance Class | Gigabit Ethernet |
| Power Supply | DC power supply |
| Power over Ethernet | No |
| Protocols | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Flow Control) |
| Quality of Service | No |
| Snmp | No |
| Stackable | Non-Stackable |
| Switch Form Factor | Desktop, Wall Mountable |
| True Color | Black |
| Vlan Support | No |
| Warranty Information | 10 Year |
| Weight (lbs.) | 0.05 |
| Width in Inches | 2.17 |
| Wireless Connectivity | No |
Details
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.
- This unmanaged Gigabit Ethernet switch features five ports, supports speeds of 10/100/1000 Mbps, and operates without the need for configuration.
- Data transfer rate of 10/100/1000 Mbps, supporting Gigabit Ethernet speeds
- It has a mega compact form factor, measuring just 55 x 55 x 16 mm (2.17 x 2.17 x 0.63 inches), which is smaller than a standard business card.
- Designed for straightforward plug-and-play operation without the need for configuration
- With a throughput of 10/100/1000 Mbps, this device supports Gigabit Ethernet speeds and operates in a non-blocking layer 2 mode, ensuring efficient data transfer without packet loss.
- Maximum power consumption of 3.3W
- Industrial operating temp (-40 °C to +85 °C / -40°F to +176°F)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations – can be directed to outer casing via fiber optics or light pipe, or electrically wired
- Comes with a 10 year limited warranty
