Highlights
View Details- Dimensions: 128 mm(H) x 22.6 mm(W) x 102 mm(D)
- For device with a web browser, Microsoft Windows 8 editions/server 2012/server 2008 R2/server 2008/Vista/server 2003/XP/2000, Android, iOS, Mac OS X, Linux operating systems
- Control any input or output from TTL to high voltage high current industrial devices

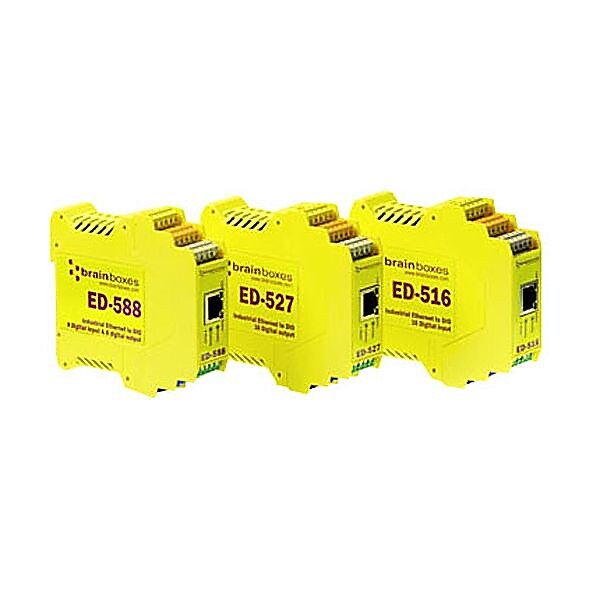

Brainboxes ED-588 Ethernet to 8 DI + 8 DO Device Server
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
- Dimensions: 128 mm(H) x 22.6 mm(W) x 102 mm(D)
- For device with a web browser, Microsoft Windows 8 editions/server 2012/server 2008 R2/server 2008/Vista/server 2003/XP/2000, Android, iOS, Mac OS X, Linux operating systems
- Control any input or output from TTL to high voltage high current industrial devices
- Interfaces/ports: 1 x network (RJ-45)-port, 1 x serial-port
- Power: Unregulated 5 - 30 VDC, reverse polarity protection, 2.5 W max power consumption
- Media type supported: Twisted pair
- Ethernet technology: Fast ethernet, Network standard: 10/100BASE-TX
- Form factor: Rail-mountable
- Isolation: 1500VRMS magnetic isolation from ethernet
- Tx/Rx FIFO size: 2048/2048, Watchdog: Active high/low, pulsed high/low
- Operating distance: 4000'
- Operating temperature: -30 - 80 deg C, Ambient relative humidity: 5 - 95% (non-condensing)
- Network enable your NuDAM/ADAM modules
- Factory floor process control and automation
- Removable screw terminal blocks make installation easier and quicker
- Colour coded blocks and-ports prevents incorrect connection, numbered-pins simplifies wiring and removes confusion
- Includes ED-588 ethernet to digital IO 8 inputs plus 8 outputs, installation CD (manual, Microsoft signed drivers and utilities, quick start guide)
- Compliant and standards: RoHS, WEEE, CE, CCC-Mark, C-Tick
- Weight: 18.17 oz.
- Warranty: Lifetime limited
| Manufacturer # | TE5919 |
| Brand Name | Brainboxes |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| Weight (ounces) | 18.17 |
Details
- Dimensions: 128 mm(H) x 22.6 mm(W) x 102 mm(D)
- For device with a web browser, Microsoft Windows 8 editions/server 2012/server 2008 R2/server 2008/Vista/server 2003/XP/2000, Android, iOS, Mac OS X, Linux operating systems
- Control any input or output from TTL to high voltage high current industrial devices
- Interfaces/ports: 1 x network (RJ-45)-port, 1 x serial-port
- Power: Unregulated 5 - 30 VDC, reverse polarity protection, 2.5 W max power consumption
- Media type supported: Twisted pair
- Ethernet technology: Fast ethernet, Network standard: 10/100BASE-TX
- Form factor: Rail-mountable
- Isolation: 1500VRMS magnetic isolation from ethernet
- Tx/Rx FIFO size: 2048/2048, Watchdog: Active high/low, pulsed high/low
- Operating distance: 4000'
- Operating temperature: -30 - 80 deg C, Ambient relative humidity: 5 - 95% (non-condensing)
- Network enable your NuDAM/ADAM modules
- Factory floor process control and automation
- Removable screw terminal blocks make installation easier and quicker
- Colour coded blocks and-ports prevents incorrect connection, numbered-pins simplifies wiring and removes confusion
- Includes ED-588 ethernet to digital IO 8 inputs plus 8 outputs, installation CD (manual, Microsoft signed drivers and utilities, quick start guide)
- Compliant and standards: RoHS, WEEE, CE, CCC-Mark, C-Tick
- Weight: 18.17 oz.
- Warranty: Lifetime limited
| Attribute Name | Attribute Value |
|---|
