Highlights
View Details- This device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port
- Compatible with PT100, PT1000, and Ni120
- Dimensions: 5.1"H x 4"W x 0.9"D

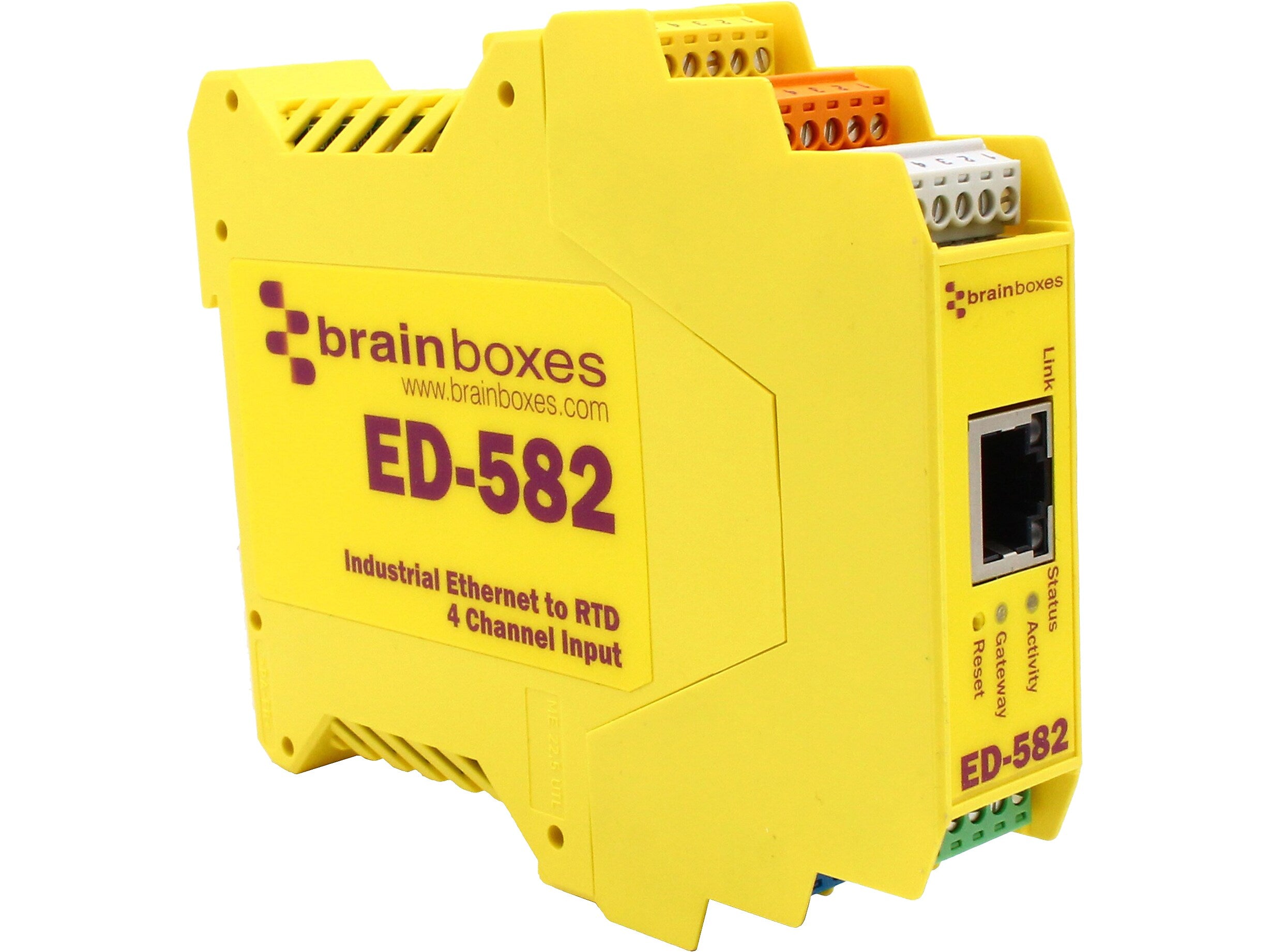

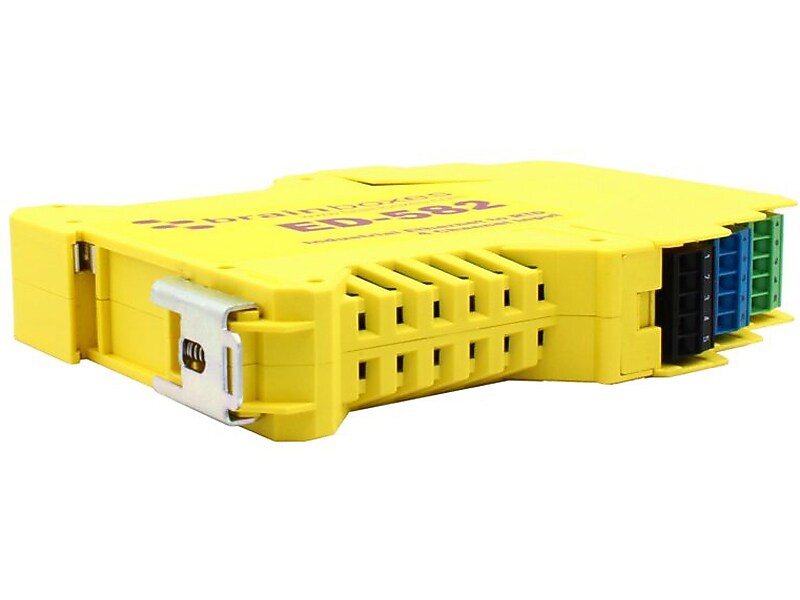

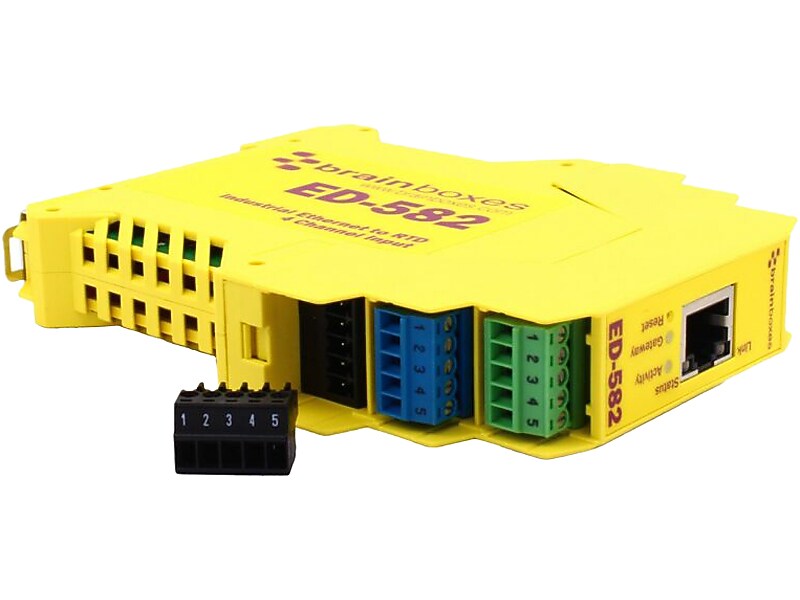

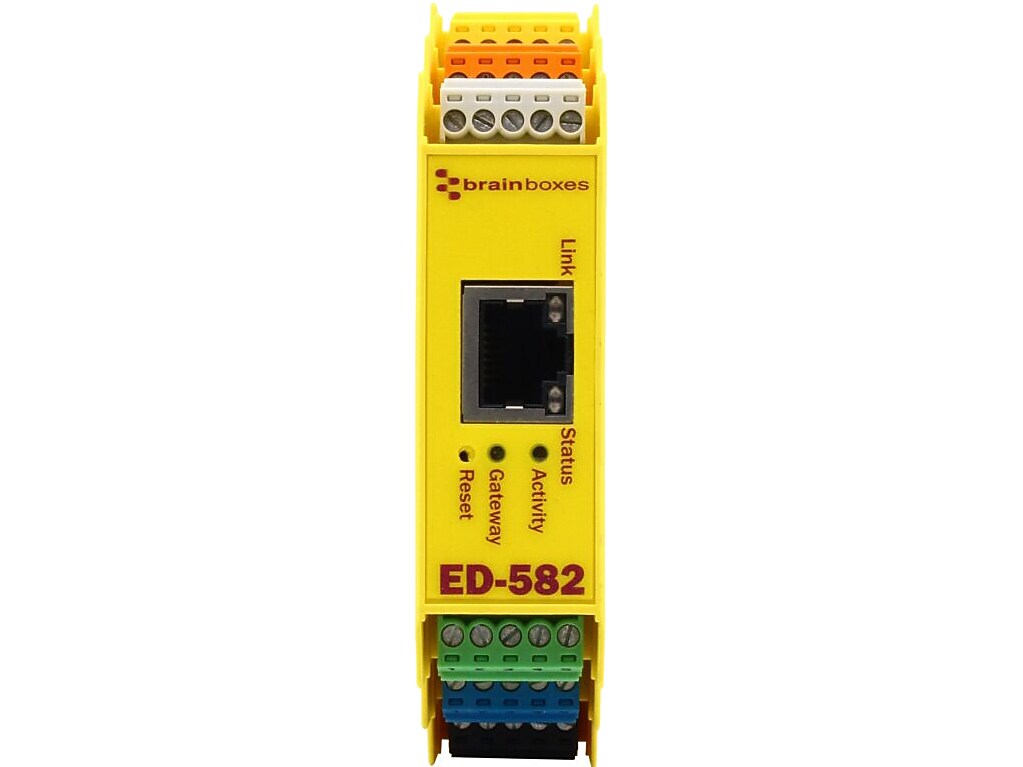

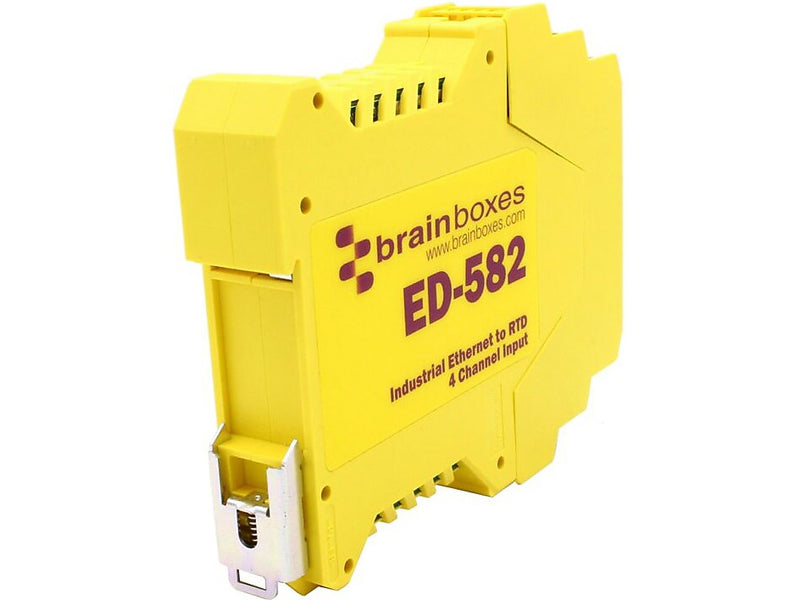

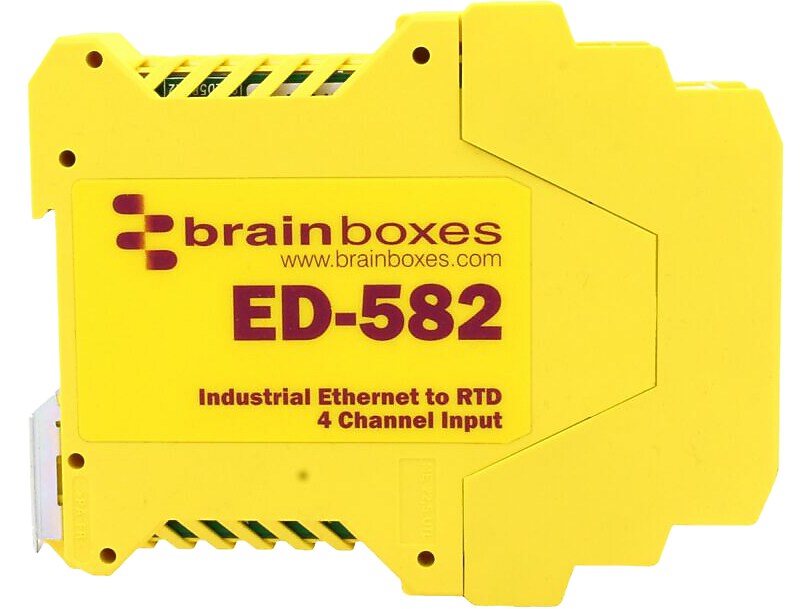

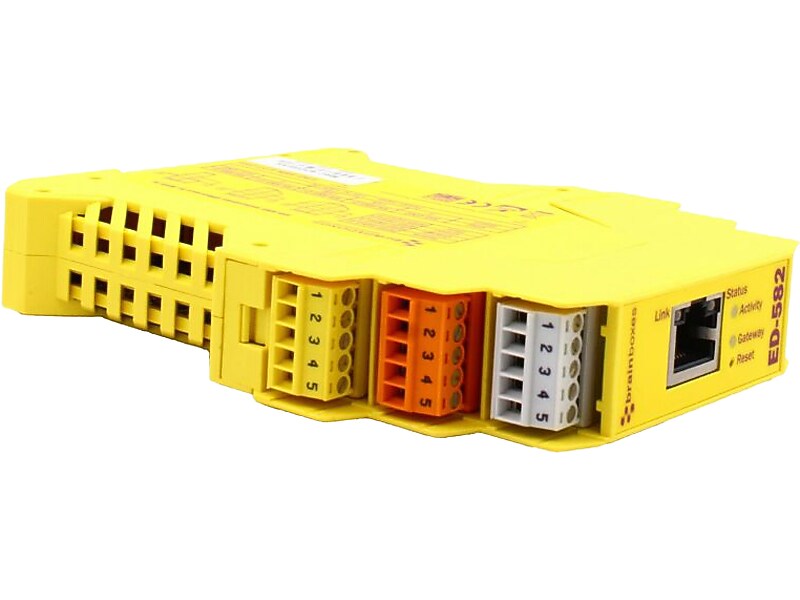

Brainboxes Ethernet to 4-Channel RTD Input, Yellow (ED-582)
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Brainboxes device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft.NET framework Visual Basic, C#, C++, Java, JavaScript, PHP and more. Can be configured and secured from a web browser, and installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. Offers robust and intelligent ‘control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as ‘process side'. The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
- This device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port
- Compatible with PT100, PT1000, and Ni120
- Dimensions: 5.1"H x 4"W x 0.9"D
- Comes in yellow

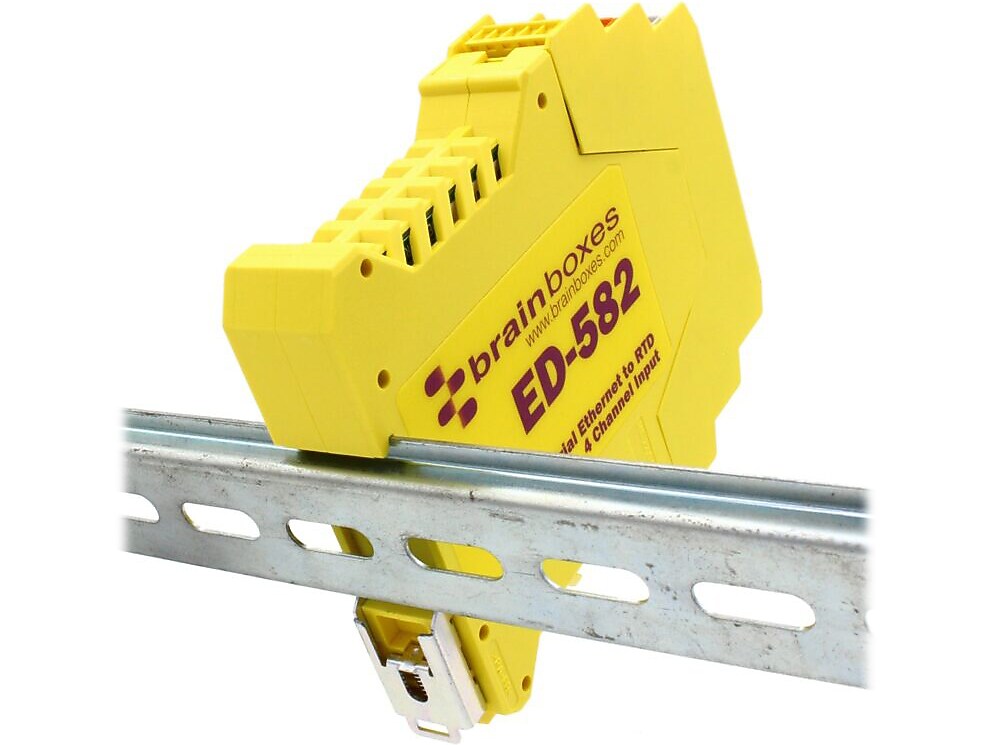

- Factory floor process control and automation, integrated DIN rail mount
- Supports the simple ASCII TCP protocol
| Manufacturer # | ED582 |
| Brand Name | Brainboxes |
| Depth in Inches | 0.9 |
| Height in Inches | 5.1 |
| Networking Accessory Type | PoE Converter |
| Selling Quantity | 1 |
| Selling Quantity (uom) | Each |
| True Color | Yellow |
| Weight (ounces) | 4.55 |
| Width in Inches | 4 |
Details
Brainboxes device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft.NET framework Visual Basic, C#, C++, Java, JavaScript, PHP and more. Can be configured and secured from a web browser, and installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. Offers robust and intelligent ‘control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as ‘process side'. The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.
- This device can be controlled over simple ASCII TCP Protocol or ASCII over virtual COM port
- Compatible with PT100, PT1000, and Ni120
- Dimensions: 5.1"H x 4"W x 0.9"D
- Comes in yellow
- Factory floor process control and automation, integrated DIN rail mount
- Supports the simple ASCII TCP protocol
| Attribute Name | Attribute Value |
|---|
