Highlights
View Details- Light industrial/commercial Ethernet unmanaged switch
- Eight 10/100Mbps Ethernet ports
- Dimensions: 4.3"H x 3.9"W x 1.2"D

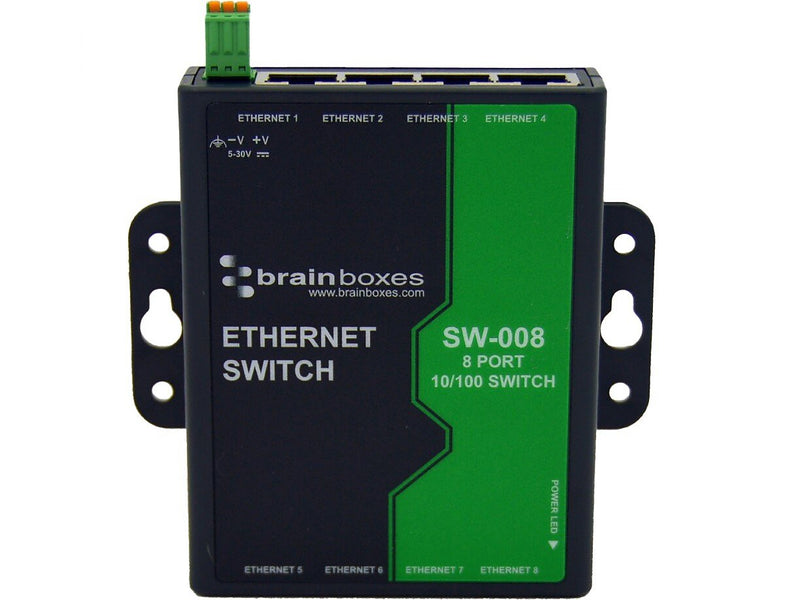

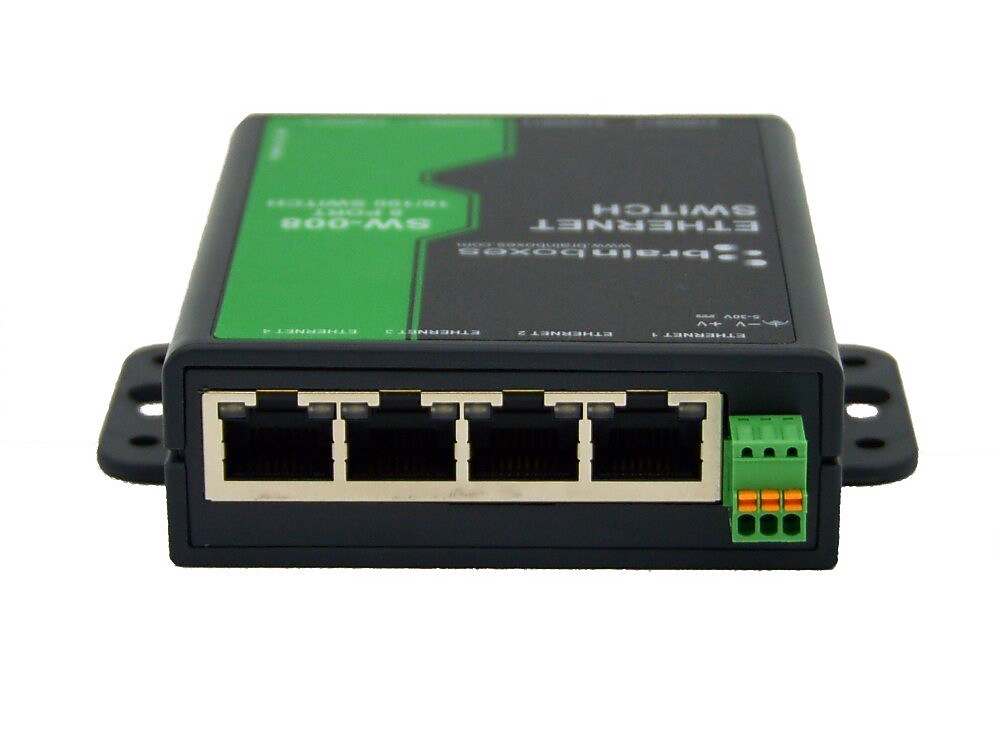

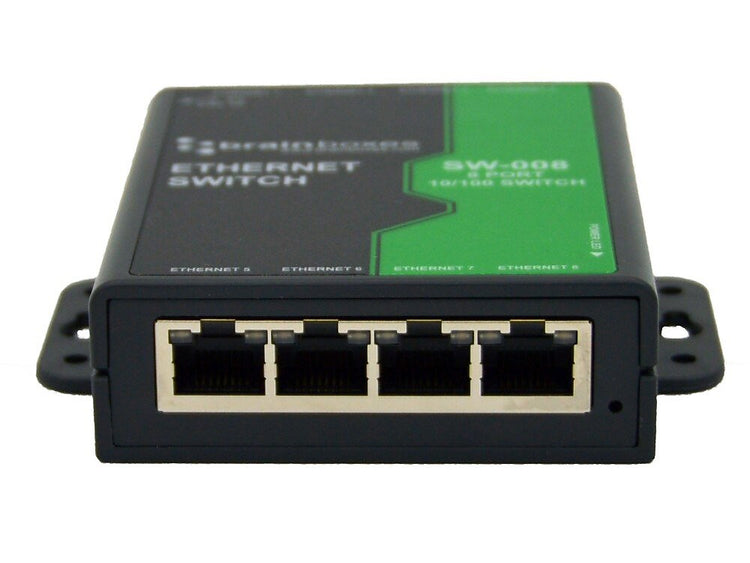

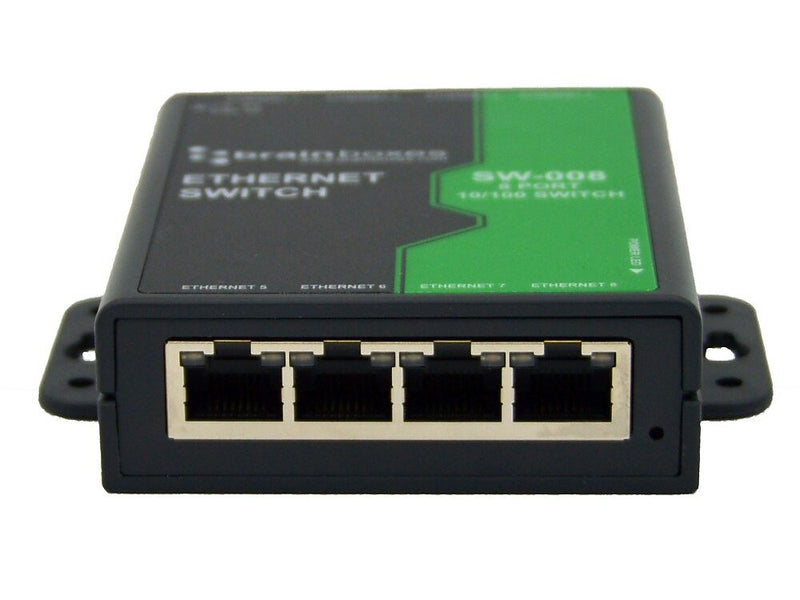

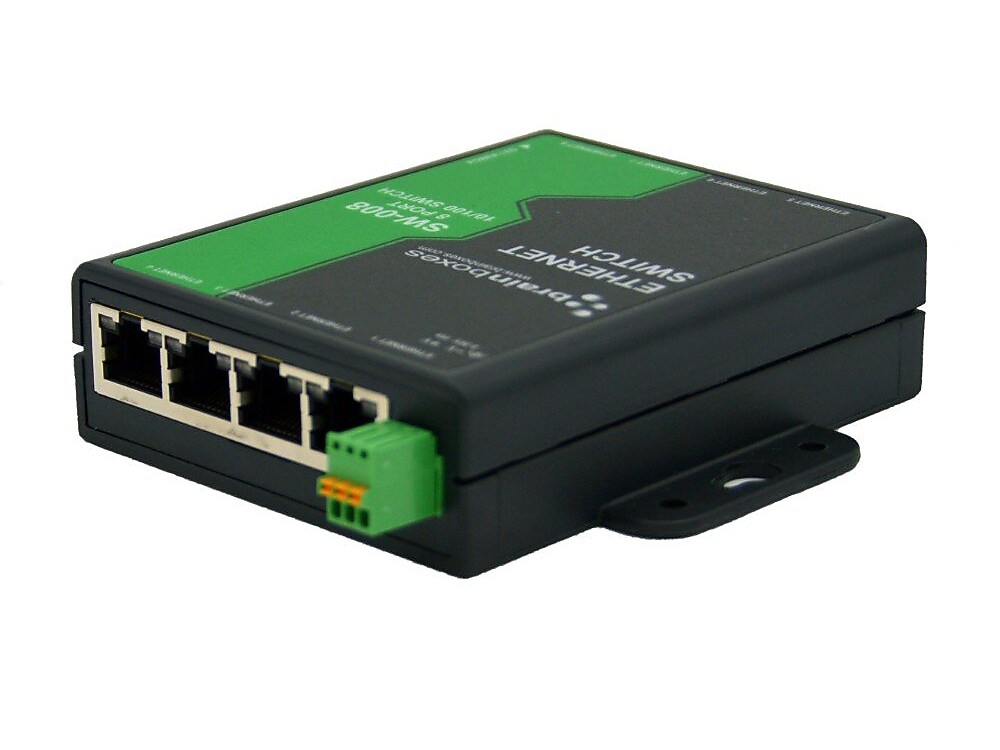

Brainboxes SW-008 8-Port Fast Ethernet Wall Mountable Switch
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Light Industrial/Commercial Ethernet 8-port unmanaged switch. Galvanically isolated ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimized based on the status of the link device. No software required. Perfect for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available.
- Light industrial/commercial Ethernet unmanaged switch
- Eight 10/100Mbps Ethernet ports
- Dimensions: 4.3"H x 3.9"W x 1.2"D
- Wide power input: 5-30VDC
- Meets or exceeds Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, UL 60950-1 standards
- IP30 nonconducting polyamide casing prevents electrical conduction, for safer installation
- No software needed: simply plug in any Ethernet cable
- Power consumption is optimized based on the status of the link device
- All Ethernet ports are Auto MDI/ MDIX supporting straight through or crossover Ethernet cables
- Easy wire removable screw terminal block

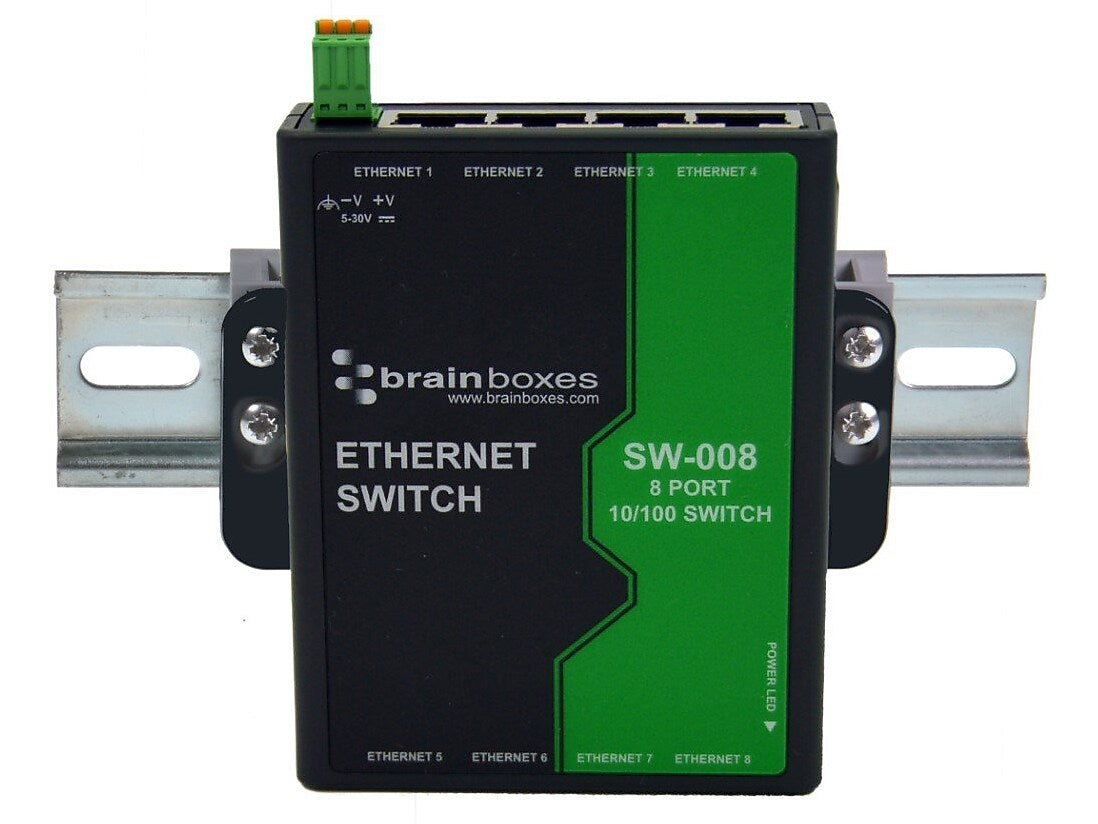

- Wall-mount holes compatible with MK-048 DIN mount clips
- Lifetime manufacturer limited warranty
| Manufacturer # | SW008 |
| Amperage (amps) | 0.3 |
| Auto-sensing | Yes |
| Brand Name | Brainboxes |
| Data Rate Performances | 10/100 Mbps |
| Depth in Inches | 1.2 |
| Gaming | Non Gaming |
| Height in Inches | 4.3 |
| Input Voltage | +5V to +30V |
| Module Support | No |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 8 |
| Performance Class | Fast Ethernet |
| Power Supply | 1.1 Watts Max : 220 mAmps at +5VDC/36mAmps at+30VDC |
| Power over Ethernet | No |
| Snmp | No |
| Series or Collection | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, Complies with UL 60950-1 |
| Switch Form Factor | Wall Mountable, Rack-Mountable |
| True Color | Black/Green |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 0.31 |
| Width in Inches | 3.9 |
Details
Light Industrial/Commercial Ethernet 8-port unmanaged switch. Galvanically isolated ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimized based on the status of the link device. No software required. Perfect for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available.
- Light industrial/commercial Ethernet unmanaged switch
- Eight 10/100Mbps Ethernet ports
- Dimensions: 4.3"H x 3.9"W x 1.2"D
- Wide power input: 5-30VDC
- Meets or exceeds Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, UL 60950-1 standards
- IP30 nonconducting polyamide casing prevents electrical conduction, for safer installation
- No software needed: simply plug in any Ethernet cable
- Power consumption is optimized based on the status of the link device
- All Ethernet ports are Auto MDI/ MDIX supporting straight through or crossover Ethernet cables
- Easy wire removable screw terminal block
- Wall-mount holes compatible with MK-048 DIN mount clips
- Lifetime manufacturer limited warranty
