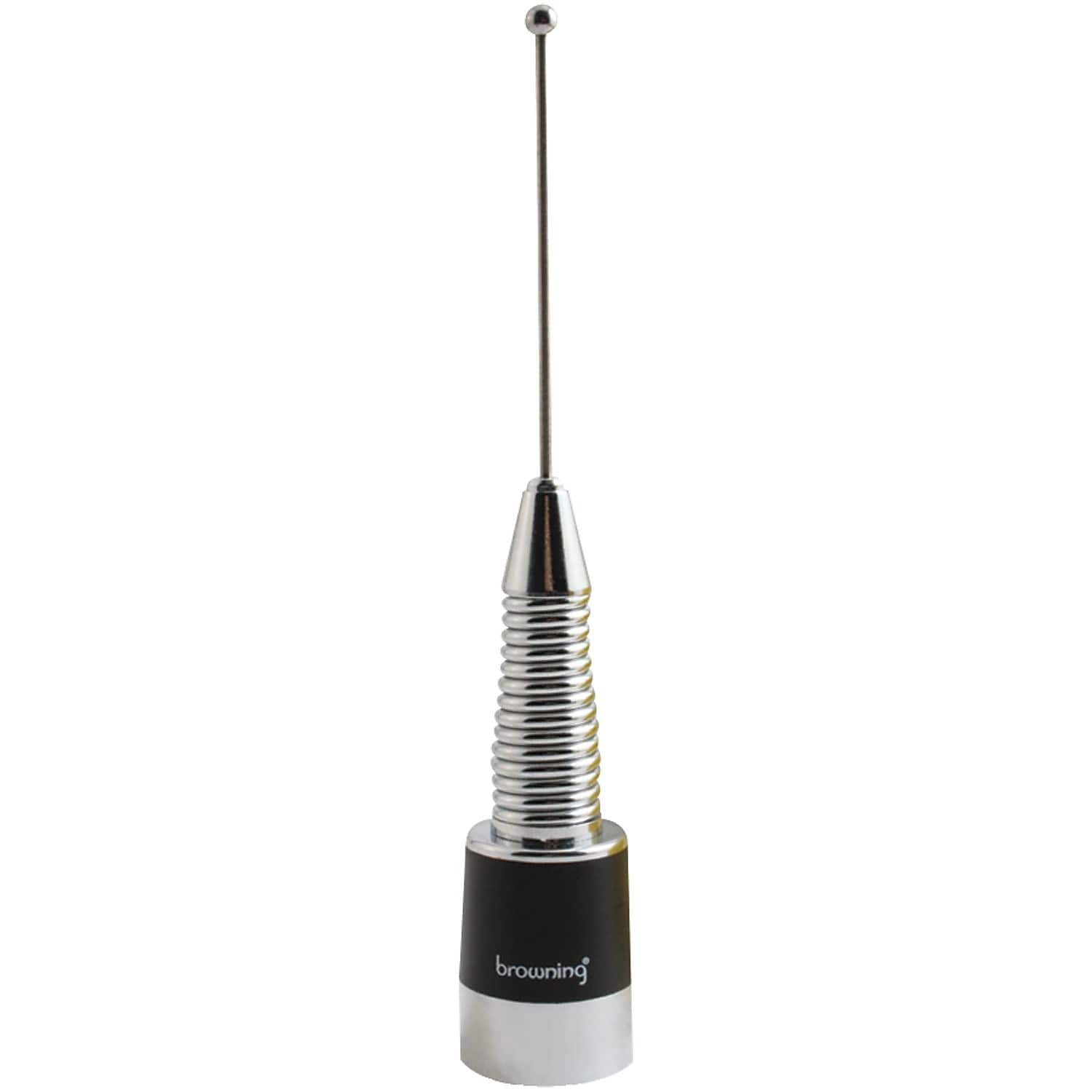

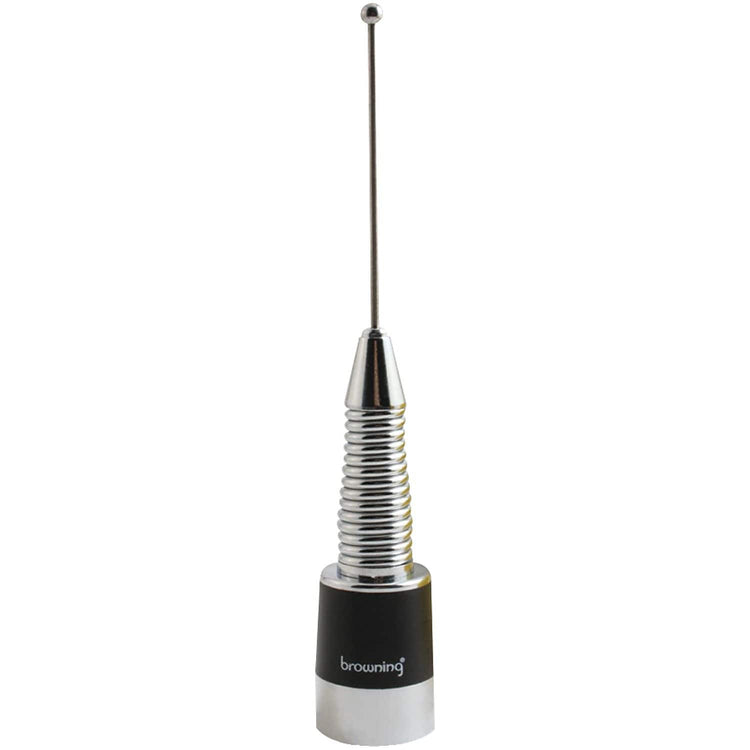

Browning® 178-S 380 - 520 MHz Pre-Tuned NMO Antenna

Browning® 380 - 520 MHz Pre-tuned gain NMO antenna with spring features 100" tapered stainless steel whip and solid brass bushings. Antenna has gold plunger type contact pin and poly bag with header card for display.

• Power: 160 W
• Gain: 2.4 dBi with ground plane, unity without ground plane
• Bandwidth: 140 MHz
• Mounting type: NMO
• Standing wave ratio: less than1.74:1 at 380 MHz, less than1.18:1 at 430 MHz, less than1.19:1 at 450 MHz, less than1.23:1 at 470 MHz, less than1.30:1 at 490 MHz, less than1.62:1 at 520 MHz
• Wave: 0.5
• Dimensions: 11"(H)
• Features: Gold plunger type contact pin, works on any surface, no tuning
• Solid brass chromed base, stainless steel whip & spring
• Weight: 0.55 lbs.
• Standing wave ratio: <1.74:1 at 380 MHz, <1.18:1 at 430 MHz, <1.19:1 at 450 MHz, <1.23:1 at 470 MHz, <1.30:1 at 490 MHz, <1.62:1 at 520 MHz
