Highlights
View Details- Dimensions: 6'L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in blue color and features polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact and HDPE insulation

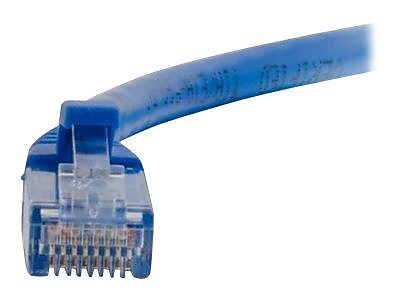

C2G 03975 6' Blue RJ-45 Male/Male Cat6 Snagless Network Patch Cable for Network Adapters/Hubs
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The C2G 3975 6' blue Cat6 snagless network patch cable is suitable for fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data or video distribution applications. This patch cable is compatible with network adapters, hubs, switches, routers, patch panels and other high performance networking applications. This cable offers RJ-45 male to RJ-45 male connection. The snagless design safeguards clips while plugging and unplugging. It has 50-micron gold plated contacts and four pairs of 24 AWG stranded bare copper conductors. It has DC resistance of 9.38 Ohm/100 m and voltage rating of 30 V. This patch cable has molded PVC hood, copper alloy contact and HDPE insulation.
- Dimensions: 6'L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in blue color and features polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact and HDPE insulation
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion
- 0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
- DC resistance: 9.38 Ohm/100 m max
- Voltage: 30 V
- Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Temperature rating: 60 deg C
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.18 lbs.
- Type: Patch cable - CAT 6
- Technology: UTP
- Wiring Scheme: T568B
- Wires per Cable: 8 wires
- Features: Snagless, stranded , minimized Near-End Crosstalk (NEXT), reduced structural return loss (SRL)
- Manufacturer Warranty: Limited lifetime warranty
| Manufacturer # | 3535058 |
| Brand Name | C2G Cables to Go |
| Cable Use | Networking |
| Direct Attach Cable (dac) | No |
Details
The C2G 3975 6' blue Cat6 snagless network patch cable is suitable for fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data or video distribution applications. This patch cable is compatible with network adapters, hubs, switches, routers, patch panels and other high performance networking applications. This cable offers RJ-45 male to RJ-45 male connection. The snagless design safeguards clips while plugging and unplugging. It has 50-micron gold plated contacts and four pairs of 24 AWG stranded bare copper conductors. It has DC resistance of 9.38 Ohm/100 m and voltage rating of 30 V. This patch cable has molded PVC hood, copper alloy contact and HDPE insulation.
- Dimensions: 6'L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in blue color and features polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact and HDPE insulation
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion
- 0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
- DC resistance: 9.38 Ohm/100 m max
- Voltage: 30 V
- Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Temperature rating: 60 deg C
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.18 lbs.
- Type: Patch cable - CAT 6
- Technology: UTP
- Wiring Scheme: T568B
- Wires per Cable: 8 wires
- Features: Snagless, stranded , minimized Near-End Crosstalk (NEXT), reduced structural return loss (SRL)
- Manufacturer Warranty: Limited lifetime warranty
