Highlights
View Details- Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications
- Cable length: 7'
- Connections: one 8-pin RJ-45 male connector on both ends

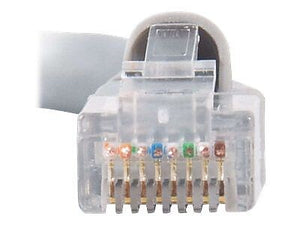

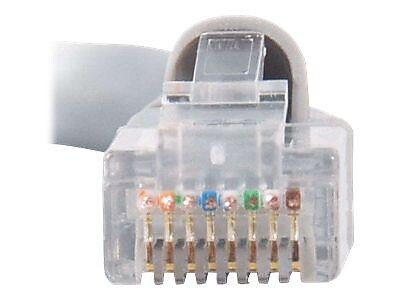

C2G 15192 7' RJ-45 Male/Male Cat5e Snagless Unshielded Ethernet Network Patch Cable, Gray
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications.
- Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications
- Cable length: 7'
- Connections: one 8-pin RJ-45 male connector on both ends
- Connectivity: Wired
- FR-PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, ANSI/TIA-568-C-2 standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in gray color
- Data transfer rate: 1000 Mbps
- Diameter: 5.3 mm OD jacket, 0.95 + 0.05 mm insulation, thickness: 0.55 mm jacket
- Voltage rating: 30 V, Dielectric strength: 500 MV/m
- Resistance: 89 ohm/km (maximum) DC conductor, 100 ohm/km (minimum) insulation
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for 1000base-T, 100base-T, 10base-T, 4/16 Mbps Token Ring, 100 VG-Any LAN, 100 Mbps TP-PMD, 55/155 Mbps ATM and voice
- Weight: 0.17 lbs.
- Comes with lifetime warranty
| Manufacturer # | 15192 |
| Brand Name | C2G Cables to Go |
| Cable Gauge (awg) | 24 |
| Cable Jacket Material | PVC |
| Cable Length (inches) | 84 |
| Cable Length (ft) | 7 |
| Cable Use | Audio/Video |
| Color Family | Gray/Silver |
| Conductor Material | Stranded Bare Copper |
| Connector Finish | Gold-Plated |
| Connector Gender | Male to Male |
| Data Transfer Rate (gbps) | 1 |
| Data Transfer Rate (mbps) | 1000 |
| Device Type | Computer |
| End 1 Connector Type | RJ45 |
| End 2 Connector Type | RJ45 |
| Ethernet | Yes |
| True Color | Gray |
Details
Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications.
- Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications
- Cable length: 7'
- Connections: one 8-pin RJ-45 male connector on both ends
- Connectivity: Wired
- FR-PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
- Meets RoHS, ANSI/TIA-568-C-2 standards and certifications
- Contact material: 50 micron gold-plated copper alloy
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in gray color
- Data transfer rate: 1000 Mbps
- Diameter: 5.3 mm OD jacket, 0.95 + 0.05 mm insulation, thickness: 0.55 mm jacket
- Voltage rating: 30 V, Dielectric strength: 500 MV/m
- Resistance: 89 ohm/km (maximum) DC conductor, 100 ohm/km (minimum) insulation
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 60 deg C
- Snagless design protects clips while plugging and unplugging operation
- Perfect for 1000base-T, 100base-T, 10base-T, 4/16 Mbps Token Ring, 100 VG-Any LAN, 100 Mbps TP-PMD, 55/155 Mbps ATM and voice
- Weight: 0.17 lbs.
- Comes with lifetime warranty
| Attribute Name | Attribute Value |
|---|
