Highlights
View Details- Network patch cable is suitable for Fast Ethernet and Gigabit computer networks
- Dimensions: 5'L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications

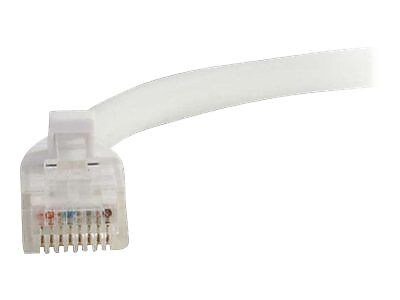

C2G 31343 5' White RJ-45 Male/Male Cat6 Snagless Network Patch Cable for Network Adapters/Hubs
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
The C2G 31341 5' Cat6 snagless white network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
- Network patch cable is suitable for Fast Ethernet and Gigabit computer networks
- Dimensions: 5'L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in white color & features polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact & HDPE insulation
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
- DC resistance: 9.38 Ohm/100 m maximum
- Voltage: 30 V
- Voltage: 30 V
- Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Temperature rating: 60 deg C
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.17 lbs.
- Comes with lifetime warranty
| Manufacturer # | 31343 |
| Brand Name | C2G Cables to Go |
| True Color | White |
Details
The C2G 31341 5' Cat6 snagless white network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
- Network patch cable is suitable for Fast Ethernet and Gigabit computer networks
- Dimensions: 5'L
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in white color & features polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact & HDPE insulation
- Has RJ-45 male to RJ-45 male end for connectivity
- 4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
- 50-micron gold plated contacts for protection against corrosion0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
- DC resistance: 9.38 Ohm/100 m maximum
- Voltage: 30 V
- Voltage: 30 V
- Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
- Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
- Temperature rating: 60 deg C
- Snagless design secures clips when plugging and unplugging
- Includes standard RJ-45 connectors and unshielded twisted pair wires that ensure decrease in near-end crosstalk and structural return loss
- Meets RoHS compliance and TIA/EIA standards and certifications
- Weight: 0.17 lbs.
- Comes with lifetime warranty
