Highlights
View Details- VGA
- 6'
- Connector on first end/second end: 15-pin HD-15 male VGA/15-pin HD-15 male VGA

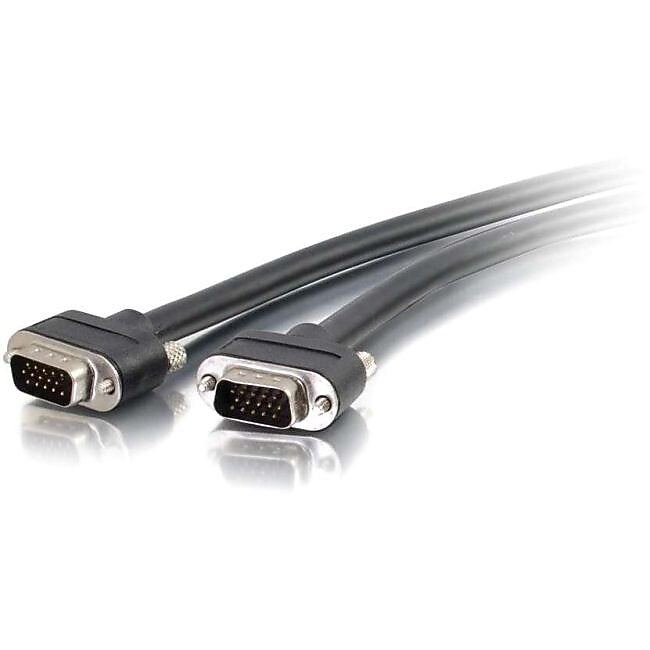

C2G 6' Select HD15 M/M VGA Video Cable, Black
Log in to see pricing
Same-day Shipping
This product usually ships and arrives up to 1 - 2 days
Cable is designed to support high resolution video applications over long distances of up to 150'.
- VGA
- 6'
- Connector on first end/second end: 15-pin HD-15 male VGA/15-pin HD-15 male VGA
- Conductor: Copper
- Device supported: Video device
- Connectors: HD15 VGA connector type, nickel plated, black PBT housing material
- Physical characteristics: 30V voltage rating, 85 mm minimum bend radius
- Electrical characteristics: 2048 x 1536 maximum resolution, 75 +/- 5O nominal impedance, 28 pF/m nominal capacitance, 10 MO/km at 20 deg C DC-500 V insulation resistance, AC 500 V/1 minute dielectric strength
- Conductor resistance: 30 AWG - 376.96 O/km, 28 AWG - 237.25 O/km
- Overall cable construction: 26 AWG drain wire, aluminum foil shield, 16/10/0.12 braided shield, CMG jacket
- Dimensions: 13.1mmH x 31.2mmW x 24mmD
- All 15 pins are wired providing support for DDC2 (E-DDC) and extended display identification data (EDID) signals
- CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy
- VGA video cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QxGA(2048x1536)
- Warranty: Lifetime limited
| Manufacturer # | RJ3255 |
| Brand Name | C2G Cables to Go |
| Cable Length (ft) | 6 |
| Cable Use | Video |
| Connector Gender | Male to Male |
| Direct Attach Cable (dac) | No |
| Vga | Yes |
Details
Cable is designed to support high resolution video applications over long distances of up to 150'.
- VGA
- 6'
- Connector on first end/second end: 15-pin HD-15 male VGA/15-pin HD-15 male VGA
- Conductor: Copper
- Device supported: Video device
- Connectors: HD15 VGA connector type, nickel plated, black PBT housing material
- Physical characteristics: 30V voltage rating, 85 mm minimum bend radius
- Electrical characteristics: 2048 x 1536 maximum resolution, 75 +/- 5O nominal impedance, 28 pF/m nominal capacitance, 10 MO/km at 20 deg C DC-500 V insulation resistance, AC 500 V/1 minute dielectric strength
- Conductor resistance: 30 AWG - 376.96 O/km, 28 AWG - 237.25 O/km
- Overall cable construction: 26 AWG drain wire, aluminum foil shield, 16/10/0.12 braided shield, CMG jacket
- Dimensions: 13.1mmH x 31.2mmW x 24mmD
- All 15 pins are wired providing support for DDC2 (E-DDC) and extended display identification data (EDID) signals
- CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy
- VGA video cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QxGA(2048x1536)
- Warranty: Lifetime limited
| Attribute Name | Attribute Value |
|---|
