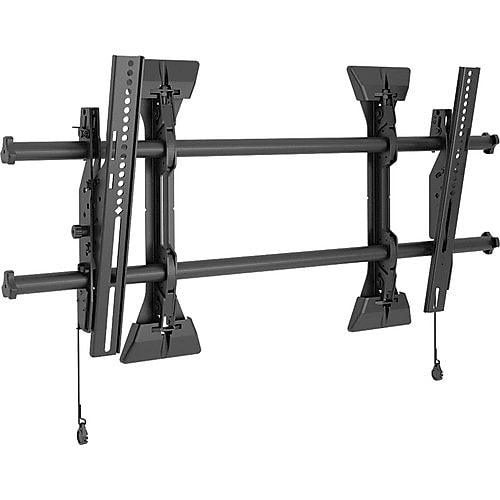

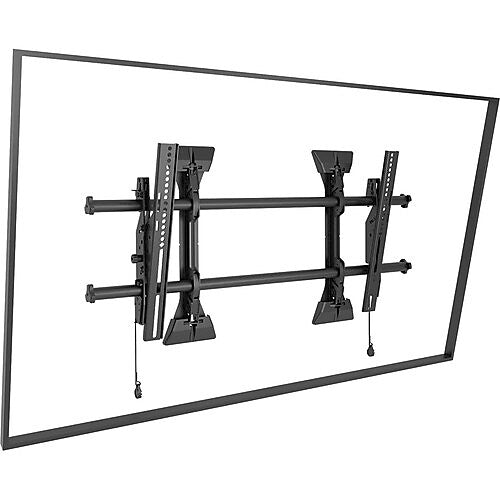

Chief Fusion Tilt Wall TV Mount, 200 lbs. Max. (LTM1U)

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

• This type of mounting system is designed to provide: Tilt Adjustment: For better viewing angles. Micro-Adjustment: For precise positioning of the display. Height Adjustment: To fine-tune the display's vertical placement. Lateral Shift: For side-to-side movement to align the display.
• The dimensions are: Height: 17 inches Width: 34.75 inches Depth: 2 inches.
• Mount supports flat panel displays ranging from 37 to 80 inches in size and has a weight capacity of up to 200 lbs. (90.7 kg).
• It comes with a 10-year warranty.
• Certifications: OSHPD, UL Listed
• Comes in black color
• Compatible with 100 x 100 mm - 870 x 400 mm mounting pattern
• Orientation: Landscape
• Maximum screen thickness: 6"
• Lateral shift: 17.4"
• Wall stud compatibility: 16" - 32"
• Built-in teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
• ControlZone leveling for post-installation fine tuning of height and leveling while centris low-profile tilt uses center of gravity for screen balance
• Set screws keep the mount rigid, stable & secure throughout the life of the installation while integrated cable stand offers easy access under screen
• UL Listed
